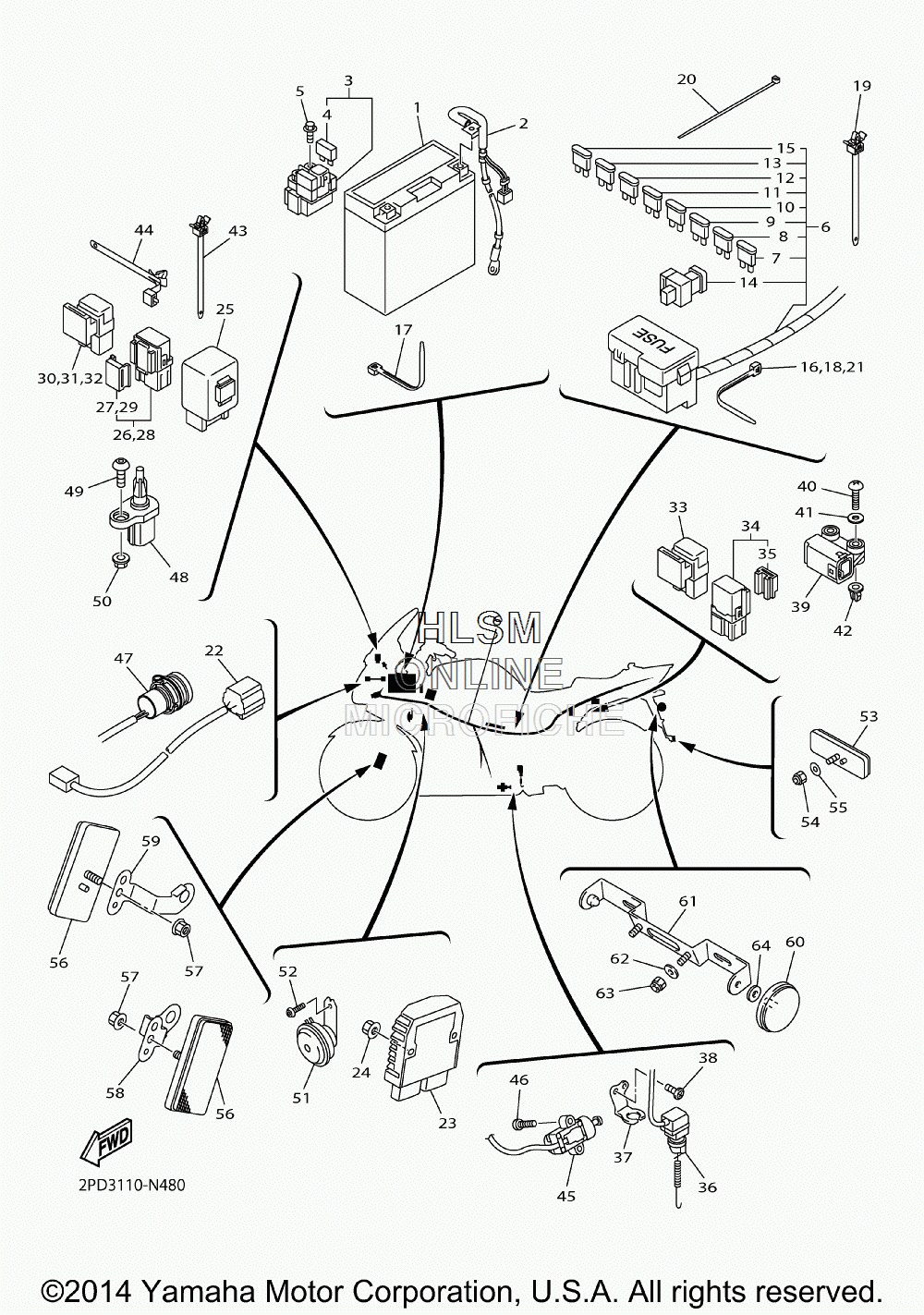

ELECTRICAL 2 для Yamaha FJR1300ES - 2014 года выпуска
-
№АртикулНазвание
-
15EA-82100-11-00 BATTERY ASSY (GS GT14B-4)BATTERY ASSY (GS GT14B-4)
-
21MC-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
33D7-81940-00-00 STARTER RELAY ASSY (RC19-076A)STARTER RELAY ASSY (RC19-076A)
-
41AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
595022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
62PD-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
75JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
85JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
95JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
105JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
115JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
125JJ-82151-60-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
131MC-82151-00-00 ...FUSE (1A-BL)...FUSE (1A-BL)
-
145JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
155JJ-82151-70-00 ...FUSE (25A-BL)...FUSE (25A-BL)
-
161UA-82591-00-00 BANDBAND
-
1790465-10098-00 CLAMPCLAMP
-
181UA-82591-00-00 BANDBAND
-
1990464-12036-00 CLAMPCLAMP
-
205Y9-12491-00-00 CLAMP 1CLAMP 1
-
2190464-13073-00 CLAMPCLAMP
-
221MC-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
231D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
255VK-81950-30-00 RELAY ASSY (5VK-30)RELAY ASSY (5VK-30)
-
261ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
275JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
281ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
295JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
305DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
315DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
325DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
335DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
341TP-81950-00-00 RELAY ASSY (1TP-00)RELAY ASSY (1TP-00)
-
355EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
361MC-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
371MC-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3898902-05008-00 SCREW, BINDSCREW, BIND
-
395PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
4097702-40025-00 SCREW, TAPPINGSCREW, TAPPING
-
4190201-04030-00 WASHER, PLATEWASHER, PLATE
-
424B4-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
4390464-12036-00 CLAMPCLAMP
-
4490464-20213-00 CLAMPCLAMP
-
451MC-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
4690157-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
473P6-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
485YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
4992012-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5095702-05500-00 NUT, FLANGENUT, FLANGE
-
511MC-83371-00-00 HORNHORN
-
5292012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
533Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
5495602-05100-00 NUT, UNUT, U
-
5590201-05043-00 WASHER, PLATEWASHER, PLATE
-
5611H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
5795702-05500-00 NUT, FLANGENUT, FLANGE
-
582PD-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
592PD-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
60449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
615JW-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
6290201-06076-00 WASHER, PLATEWASHER, PLATE
-
6395602-06100-00 NUT, UNUT, U
-
6490201-05036-00 WASHER, PLATEWASHER, PLATE
