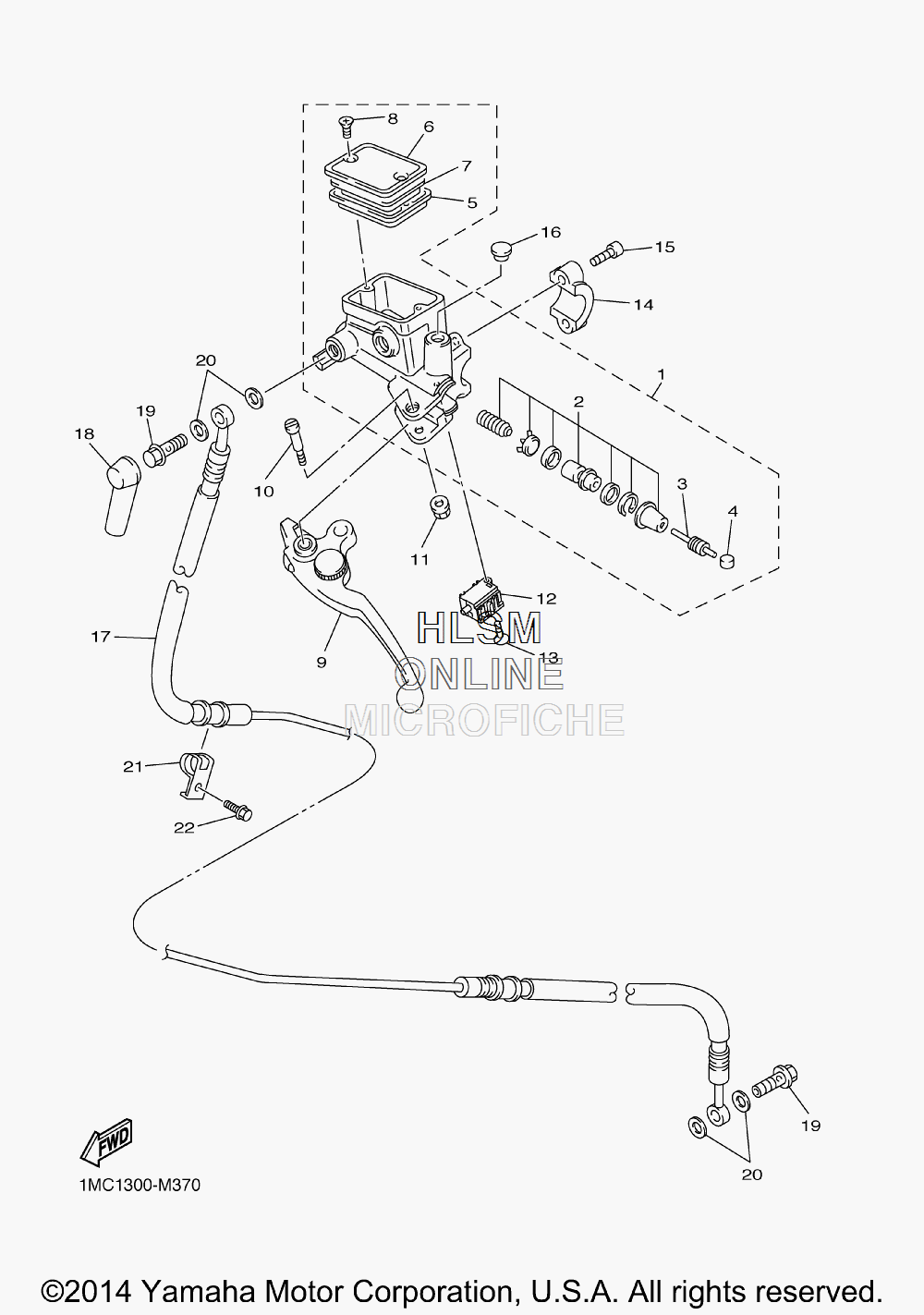

CLUTCH - MASTER CYLINDER W/ MIRROR для Yamaha FJR1300ES - 2014 года выпуска`
-
№АртикулНазвание
-
15JW-26401-01-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25JW-26402-00-00 ...CYLINDER KIT, MASTER (CLUTCH)...CYLINDER KIT, MASTER (CLUTCH)
-
33GM-26464-00-00 ...ROD, PUSH...ROD, PUSH
-
43GM-26455-00-00 ...BUSH...BUSH
-
54HM-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
64HM-25852-01-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
73GM-2585B-10-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
898707-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
95EA-83912-00-00 LEVER 1LEVER 1
-
103FV-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
1195707-06500-00 NUT, FLANGENUT, FLANGE
-
121MC-82917-00-00 SWITCHSWITCH
-
1390159-04011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
144KG-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1591316-06020-00 BOLTBOLT
-
1690338-09012-00 PLUGPLUG
-
172PD-26470-00-00 HOSE, CLUTCHHOSE, CLUTCH
-
184L0-25862-01-00 BOOT, MASTER CYLINDERBOOT, MASTER CYLINDER
-
1990401-10020-00 BOLT, UNIONBOLT, UNION
-
2090201-10118-00 WASHER, PLATEWASHER, PLATE
-
211MC-21823-00-00 CLAMP, HOSECLAMP, HOSE
-
2295022-06010-00 BOLT, FLANGEBOLT, FLANGE
