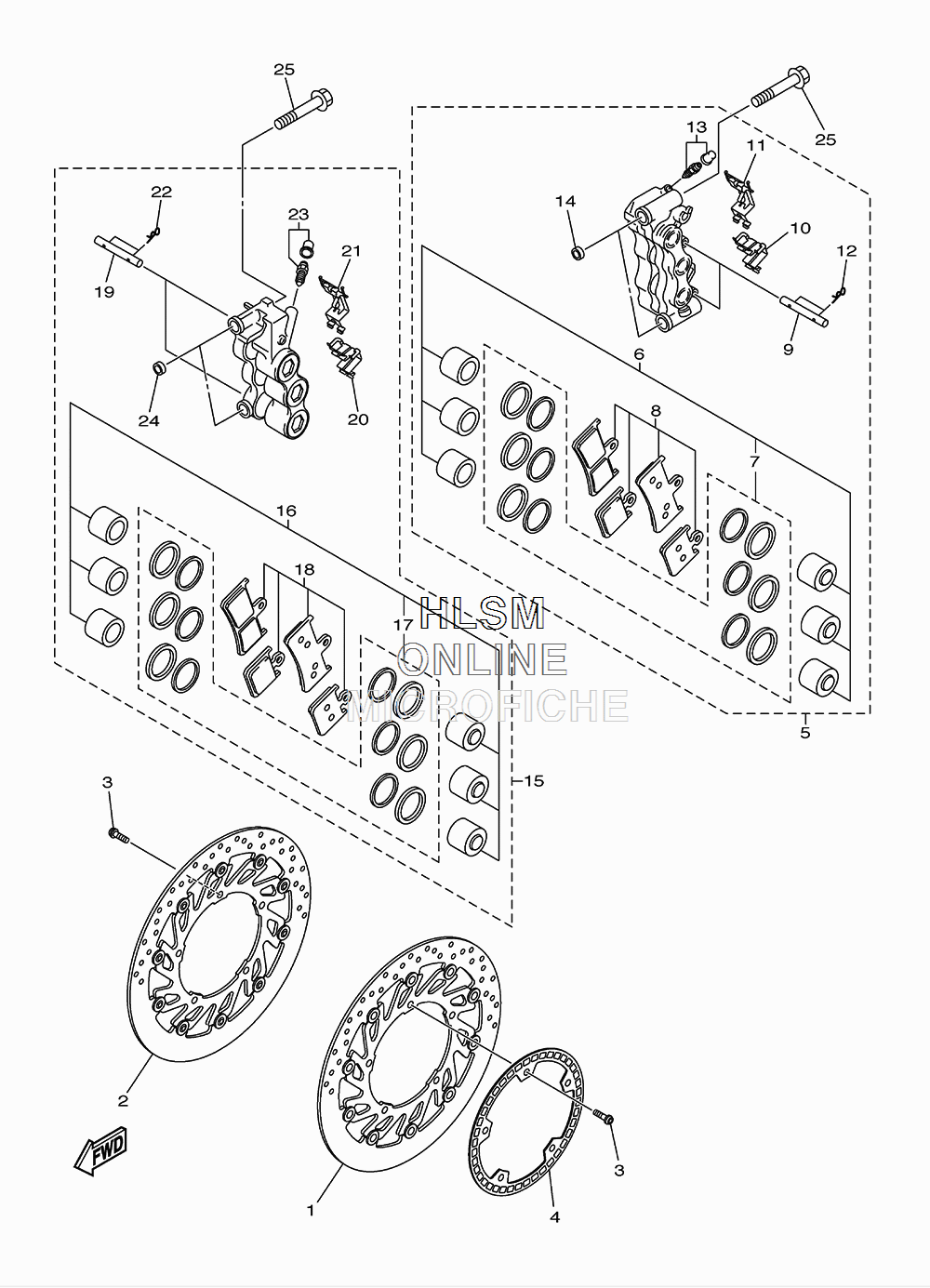

BRAKE - FRONT CALIPER для Yamaha YZF-R1 - 2013 года выпуска`
-
№АртикулНазвание
-
11KB-2581T-00-00 DISC BRAKE ASSY (LEFT)DISC BRAKE ASSY (LEFT)
-
21KB-2581U-00-00 DISC BRAKE ASSY (RIGHT)DISC BRAKE ASSY (RIGHT)
-
390149-06043-00 SCREWSCREW
-
41KB-2517G-00-00 ROTOR, SENSORROTOR, SENSOR
-
54C8-2580T-10-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
64C8-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
74C8-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
84C8-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
94SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
104C8-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
112S3-25919-10-00 ...SUPPORT, PAD...SUPPORT, PAD
-
123GM-25925-00-00 ...CLIP...CLIP
-
131J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
145VY-2583B-00-00 ...PIN, KNOCK...PIN, KNOCK
-
154C8-2580U-10-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
164C8-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
174C8-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
184C8-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
194SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
204C8-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
212S3-25919-10-00 ...SUPPORT, PAD...SUPPORT, PAD
-
223GM-25925-00-00 ...CLIP...CLIP
-
231J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
245VY-2583B-00-00 ...PIN, KNOCK...PIN, KNOCK
-
2590105-10397-00 BOLT, FLANGEBOLT, FLANGE
