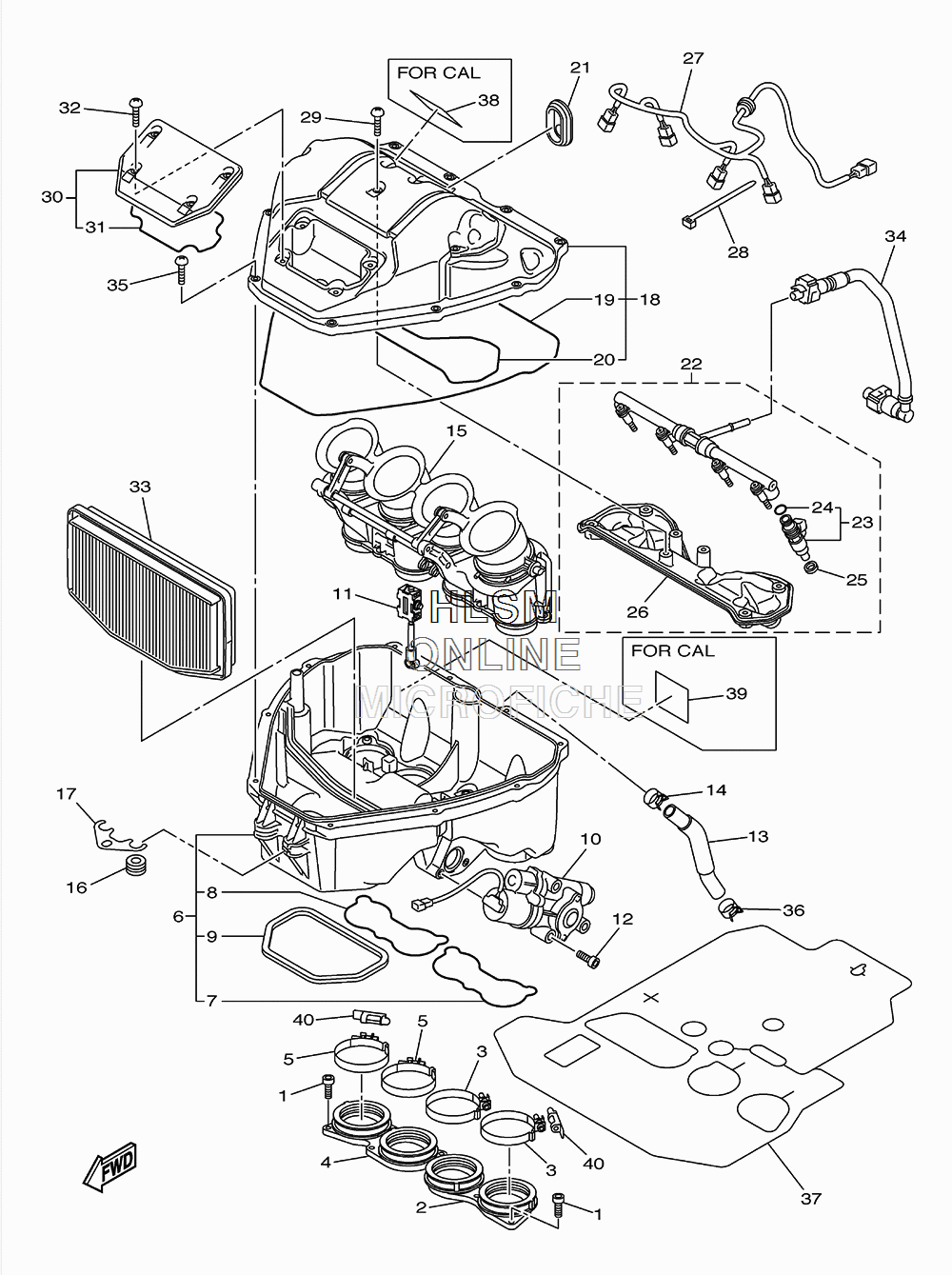

AIR CLEANER W/ INTAKE для Yamaha YZF-R1 - 2013 года выпуска`
-
№АртикулНазвание
-
190110-06193-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
214B-13595-00-00 JOINTJOINT
-
390450-60004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
414B-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
590450-60004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
614B-14411-01-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
714B-14457-00-00 ...SEAL...SEAL
-
814B-14462-00-00 ...SEAL...SEAL
-
914B-14425-00-00 ...DAMPER 1...DAMPER 1
-
1014B-85870-00-00 GEARED MOTOR COMP. 2GEARED MOTOR COMP. 2
-
1114B-14490-00-00 SHAFT ASSYSHAFT ASSY
-
1290110-05047-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1314B-15393-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
1490467-160A2-00 CLIPCLIP
-
1514B-1440B-00-00 JOINT ASSYJOINT ASSY
-
1614B-14445-00-00 GROMMETGROMMET
-
1714B-14498-00-00 STAY 1STAY 1
-
1814B-14421-01-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
1914B-14452-00-00 ...SEAL...SEAL
-
2014B-1446R-00-00 ...SEAL...SEAL
-
2113S-14445-00-00 GROMMETGROMMET
-
2214B-14402-01-00 CAP ASSY, AIR CLEANERCAP ASSY, AIR CLEANER
-
2314B-13761-10-00 ...INJECTOR...INJECTOR
-
245PS-14147-00-00 ......O-RING......O-RING
-
258FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
2614B-13767-01-00 ...CAP, INJECTOR...CAP, INJECTOR
-
2714B-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
2890464-16061-00 CLAMPCLAMP
-
2992012-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3014B-14412-01-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
3114B-14467-00-00 ...SEAL...SEAL
-
3298902-05014-00 SCREW, BINDSCREW, BIND
-
3314B-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
3414B-13972-00-00 PIPE, FUEL 2PIPE, FUEL 2
-
3598902-05020-00 SCREW, BINDSCREW, BIND
-
3690467-160A2-00 CLIPCLIP
-
3714B-12682-01-00 PROTECTOR, HEATPROTECTOR, HEAT
-
3814B-21684-00-00 PLATE, ROUTING (CALIF. ONLY)PLATE, ROUTING (CALIF. ONLY)
-
3914B-21686-00-00 PLATE, ROUTING 2 (CALIF. ONLY)PLATE, ROUTING 2 (CALIF. ONLY)
-
402C0-13881-00-00 COVER 1COVER 1
