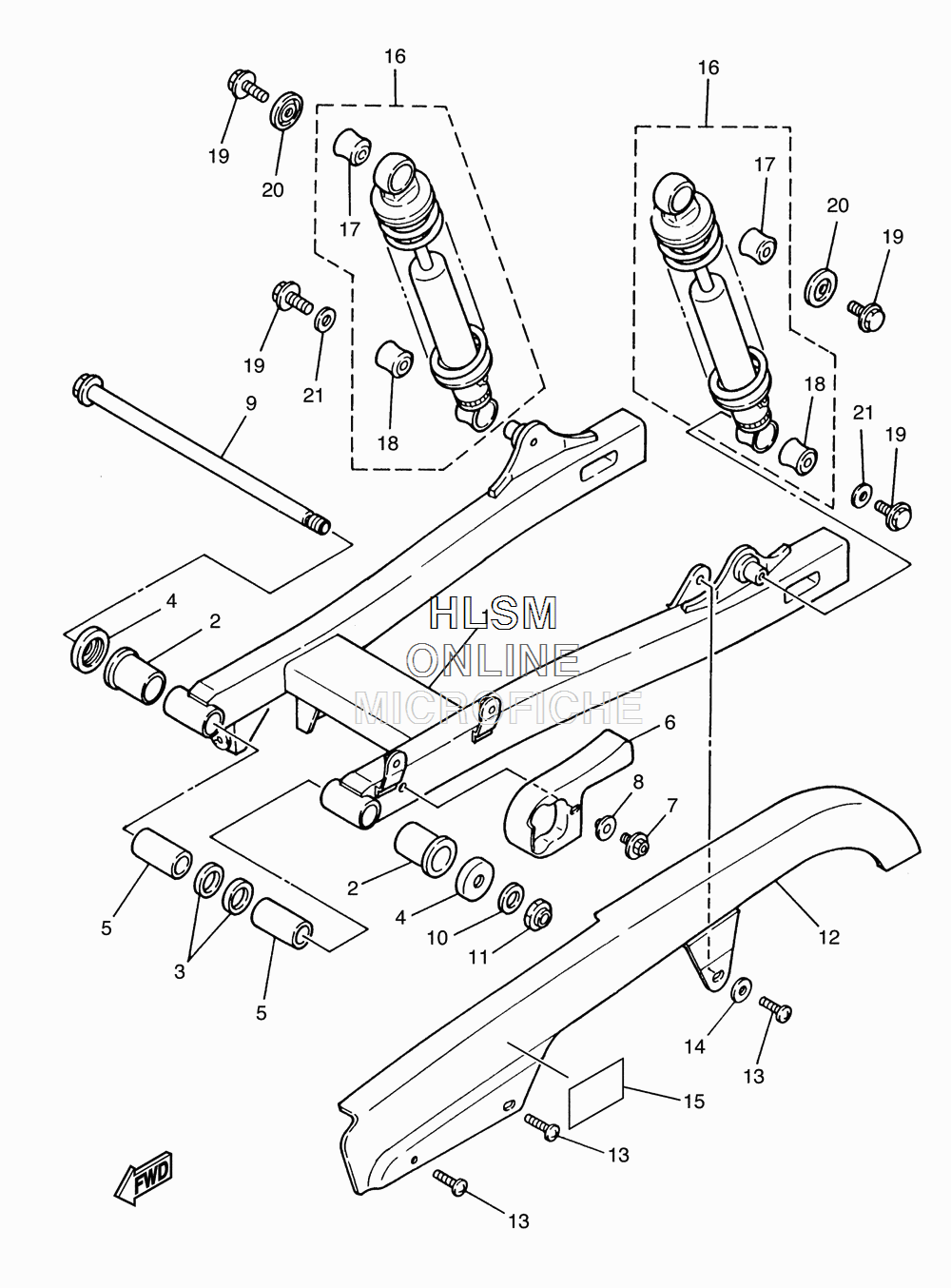

SUSPENSION - REAR ARM для Yamaha V STAR 250 - 2013 года выпуска`
-
№АртикулНазвание
-
12UJ-22110-10-33 REAR ARM COMP. (BLACK)REAR ARM COMP. (BLACK)
-
290386-18163-00 BUSH, SPEC'L NYLONBUSH, SPEC'L NYLON
-
393109-18020-00 OIL SEAL, SDO-TYPEOIL SEAL, SDO-TYPE
-
455K-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
590380-12121-00 BUSH, SOLIDBUSH, SOLID
-
655K-22151-01-00 SEAL, GUARDSEAL, GUARD
-
790119-05062-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890209-06187-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
92UJ-22141-01-00 SHAFT, PIVOTSHAFT, PIVOT
-
1092903-12200-00 WASHER, PLAINWASHER, PLAIN
-
1190185-12164-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
123LS-22311-00-00 CASE, CHAINCASE, CHAIN
-
1398904-06012-00 SCREW, BINDSCREW, BIND
-
1490201-06058-00 WASHER, PLATEWASHER, PLATE
-
153CK-21668-A1-00 LABEL, TIRELABEL, TIRE
-
162UJ-22210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
17447-22217-21-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
18447-22216-20-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
1995024-08012-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
201UJ-22243-00-00 WASHER 1WASHER 1
-
2190201-087G2-00 WASHER, PLATEWASHER, PLATE
