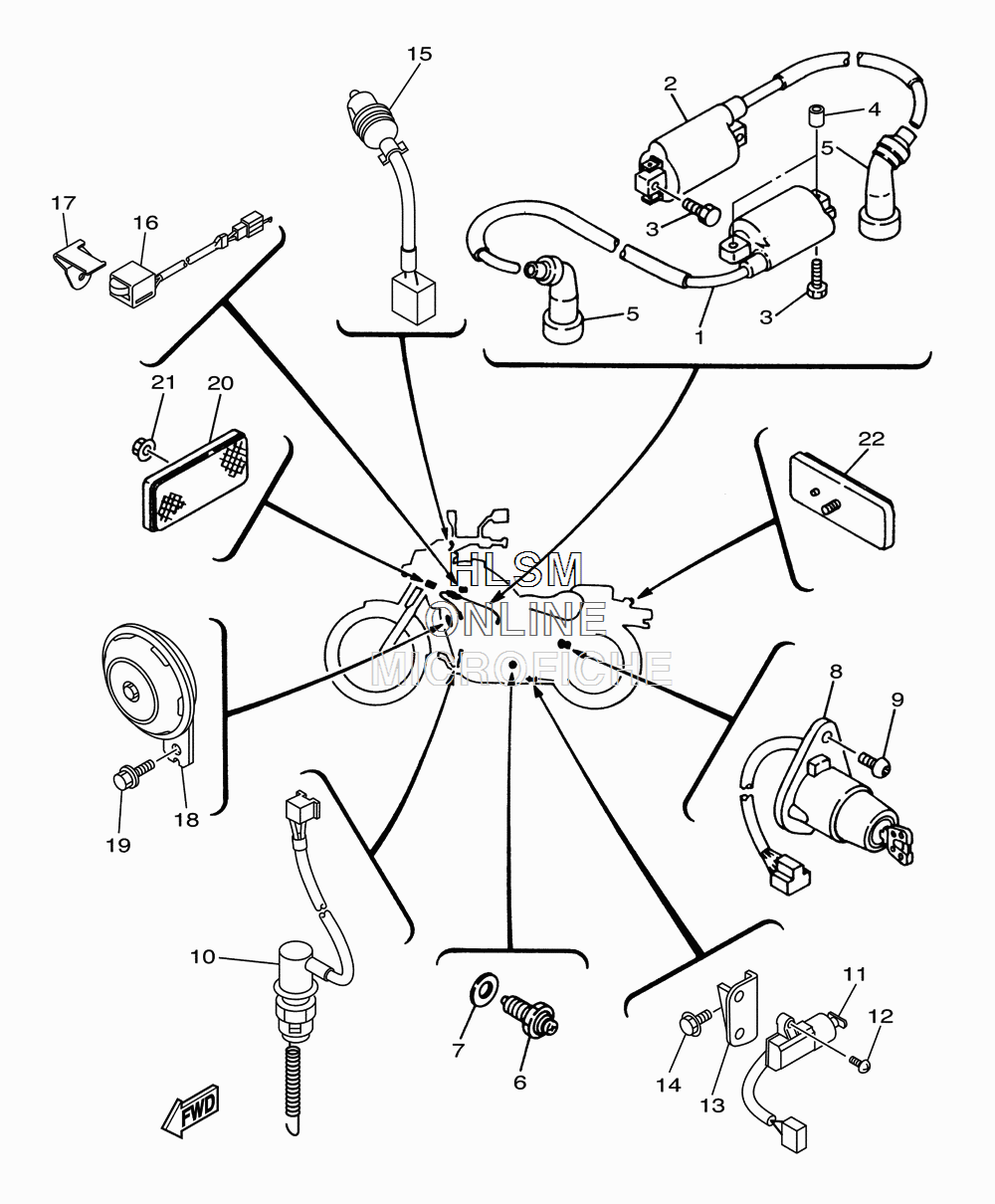

ELECTRICAL 2 для Yamaha V STAR 250 - 2013 года выпуска`
-
№АртикулНазвание
-
12UJ-82310-01-00 IGNITION COIL ASSY (FRONT)IGNITION COIL ASSY (FRONT)
-
22UJ-82320-00-00 IGNITION COIL ASSY (REAR)IGNITION COIL ASSY (REAR)
-
397007-05020-00 BOLTBOLT
-
490445-070K7-00 HOSE (L10)HOSE (L10)
-
51UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
64KM-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
790430-10148-00 GASKETGASKET
-
846B-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
990149-06228-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
105PW-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
113LD-82566-60-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
1290157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
132UJ-82565-00-00 PANEL, SWITCHPANEL, SWITCH
-
1495827-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1519D-83980-10-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
165FU-82560-40-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
173BG-82571-00-00 PANEL, SWITCHPANEL, SWITCH
-
181HX-83371-11-00 HORNHORN
-
1995807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2011H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
2195707-05500-00 NUT, FLANGE 3GM (BLACK)NUT, FLANGE 3GM (BLACK)
-
223Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
