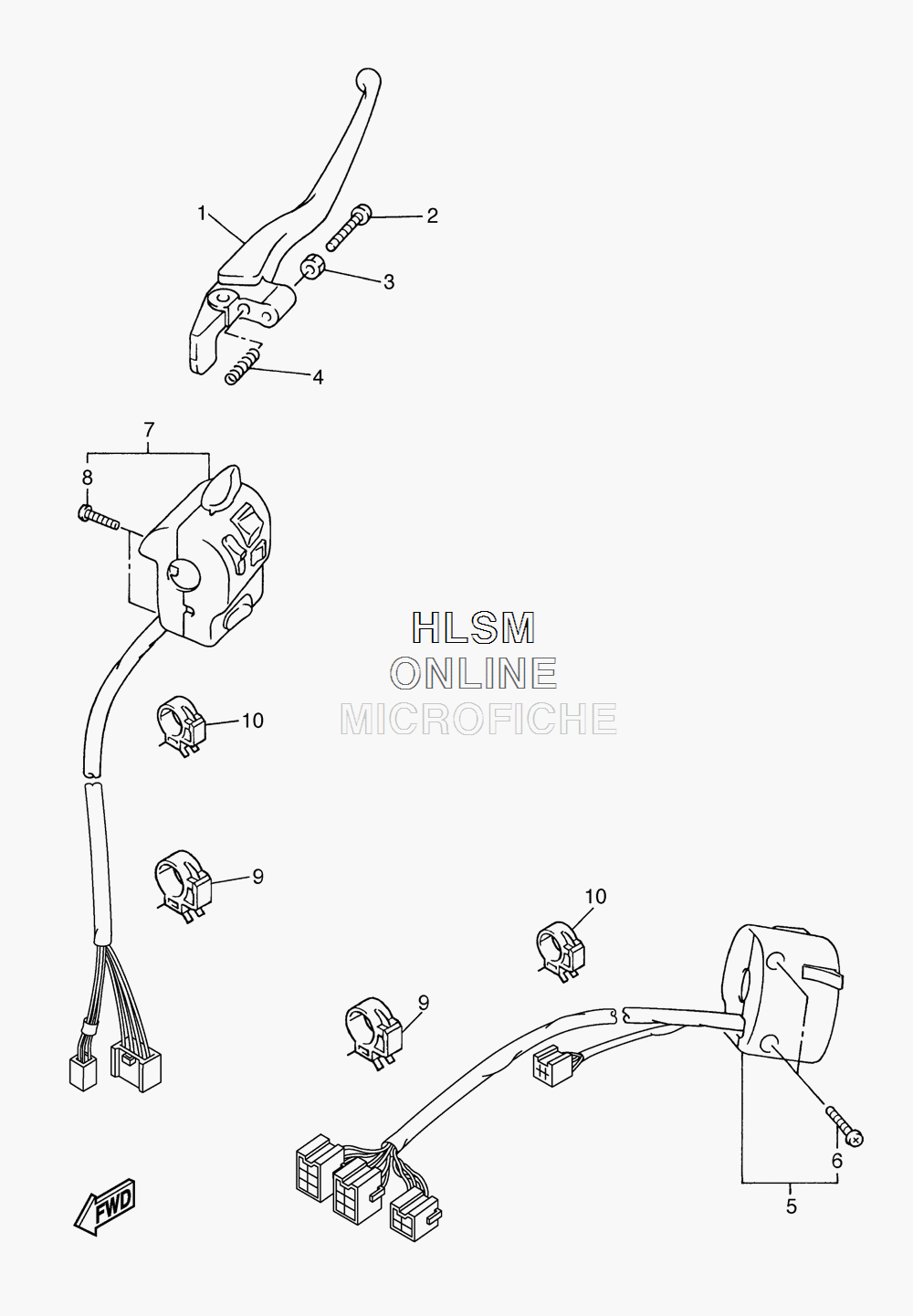

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha ROYAL STAR VENTURE S - 2013 года выпуска`
-
№АртикулНазвание
-
11D6-83922-00-00 LEVER 2 (RIGHT)LEVER 2 (RIGHT)
-
290149-06131-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
390170-06010-00 NUTNUT
-
490501-10510-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
52C9-83972-00-00 SWITCH, HANDLE 4 (LEFT)SWITCH, HANDLE 4 (LEFT)
-
698504-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
72C9-83969-00-00 SWITCH, HANDLE 5 (RIGHT)SWITCH, HANDLE 5 (RIGHT)
-
898504-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
990464-25217-00 CLAMPCLAMP
-
1090464-20191-00 CLAMPCLAMP
