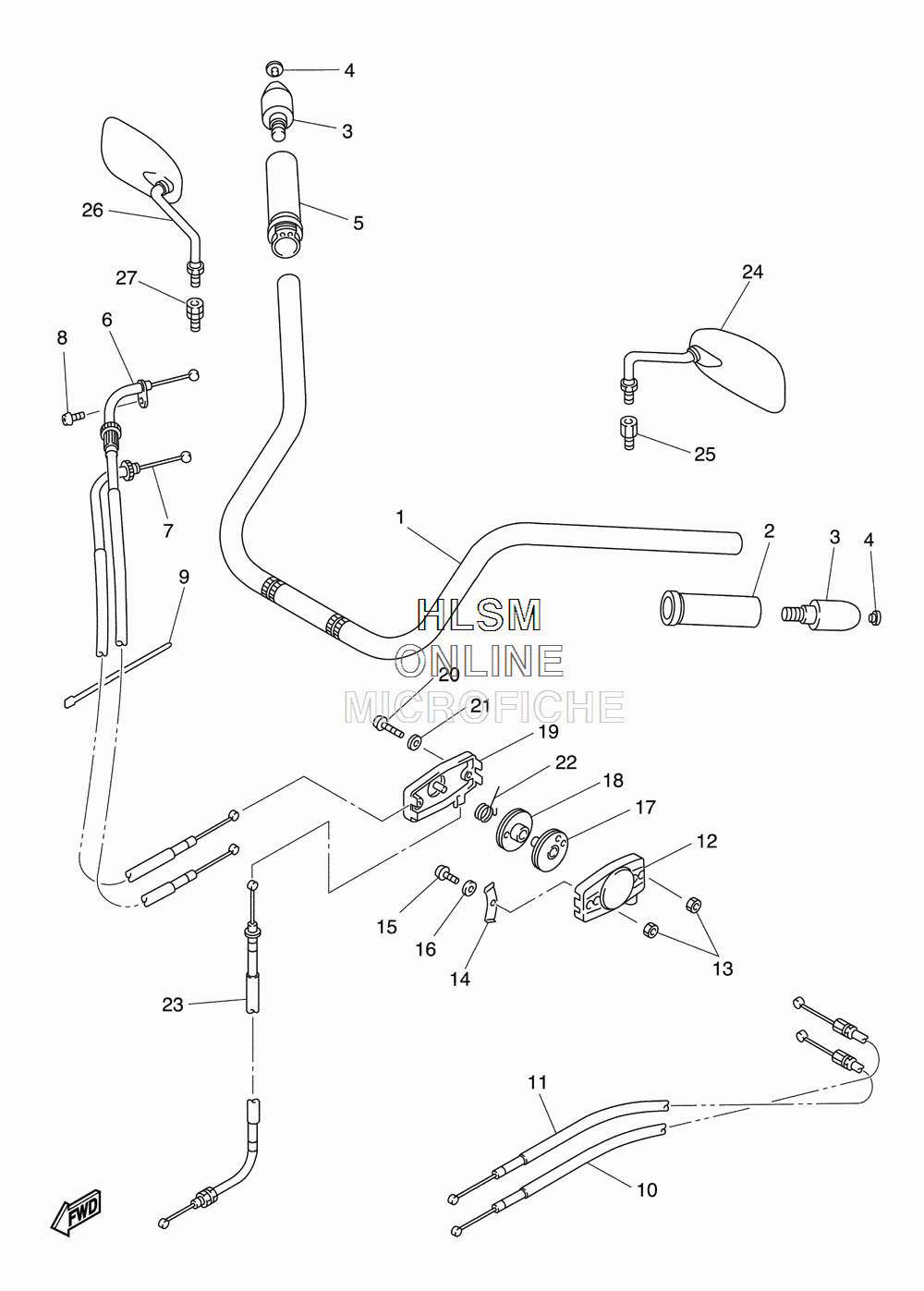

HANDLEBAR W/ CABLES для Yamaha ROYAL STAR VENTURE S - 2013 года выпуска`
-
№АртикулНазвание
-
14XY-26111-01-00 HANDLEBARHANDLEBAR
-
24NK-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
34XY-26246-00-00 END, GRIPEND, GRIP
-
490338-10164-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
54XY-26240-00-00 GRIP ASSY (RIGHT)GRIP ASSY (RIGHT)
-
64XY-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
74XY-26312-10-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
898507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
990464-16061-00 CLAMPCLAMP
-
104XY-26313-00-00 CABLE, THROTTLE 3CABLE, THROTTLE 3
-
114XY-2631J-00-00 CABLE, THROTTLE 4CABLE, THROTTLE 4
-
1241V-2629A-00-00 HOUSING COMP.HOUSING COMP.
-
1395607-05100-00 NUT, UNUT, U
-
1441V-2627E-00-00 CLAMP, WIRECLAMP, WIRE
-
1598507-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692907-05600-00 WASHER, PLATEWASHER, PLATE
-
1741V-26273-00-00 ROTORROTOR
-
1841V-2627A-00-00 ROTOR 2ROTOR 2
-
1941V-2629G-01-00 HOUSING 2HOUSING 2
-
2098507-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2192907-05600-00 WASHER, PLATEWASHER, PLATE
-
2241V-2629L-00-00 SPRING, TORSIONSPRING, TORSION
-
234XY-2637E-00-00 CABLE, CONTROL 1CABLE, CONTROL 1
-
244XY-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
254XY-26294-00-00 NUT 1NUT 1
-
264XY-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
274XY-26295-00-00 NUT 2NUT 2
