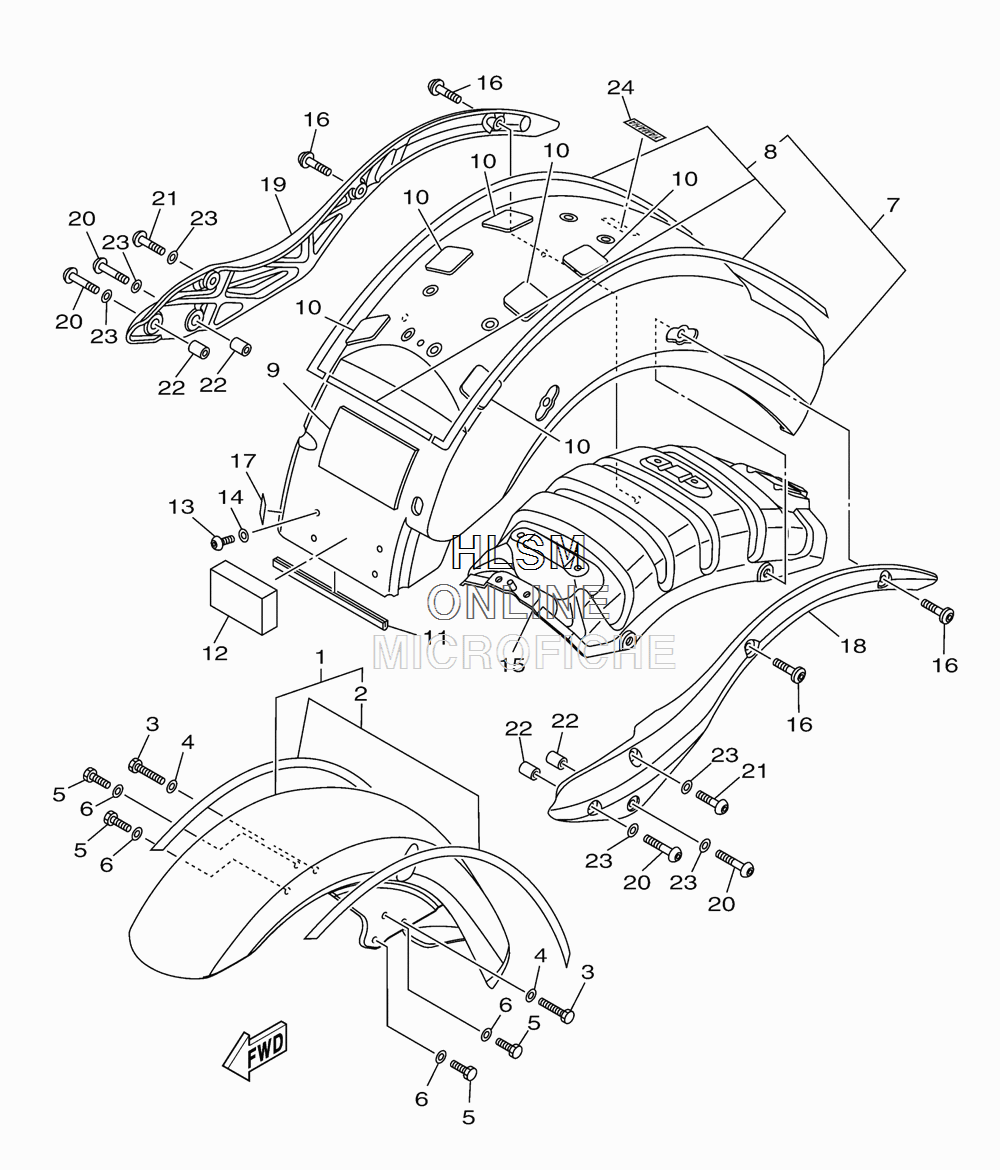

FENDER - FRONT / REAR для Yamaha ROADLINER S - 2013 года выпуска`
-
№АртикулНазвание
-
11D7-Y2151-M0-P3 FRONT FENDER ASSY (SMX - BLACK METALLIC)FRONT FENDER ASSY (SMX - BLACK METALLIC)
-
24P0-21570-50-00 ...GRAPHIC SET, FRONT FENDER...GRAPHIC SET, FRONT FENDER
-
397022-08030-00 BOLT, HEXAGONBOLT, HEXAGON
-
492902-08600-00 WASHER, PLATEWASHER, PLATE
-
597022-08016-00 BOLT, HEXAGONBOLT, HEXAGON
-
692902-08600-00 WASHER, PLATEWASHER, PLATE
-
71D7-Y2161-R0-P1 REAR FENDER COMP. (SMX - BLACK METALLIC)REAR FENDER COMP. (SMX - BLACK METALLIC)
-
84P0-2165A-50-00 ...GRAPHIC SET, REAR FENDER...GRAPHIC SET, REAR FENDER
-
95PX-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
105PX-21669-01-00 SEALSEAL
-
111D7-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
121D7-21639-00-00 DAMPER 2DAMPER 2
-
1390111-06065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1490201-06036-00 WASHER, PLATEWASHER, PLATE
-
151D7-21643-00-00 STAY, REARSTAY, REAR
-
1690111-08033-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
173FY-21575-01-00 SEAL 1SEAL 1
-
181D7-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
191D7-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
2092014-10050-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2190111-10025-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2299530-14016-00 PIN, DOWELPIN, DOWEL
-
2390201-10M63-00 WASHER, PLATEWASHER, PLATE
-
241D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
