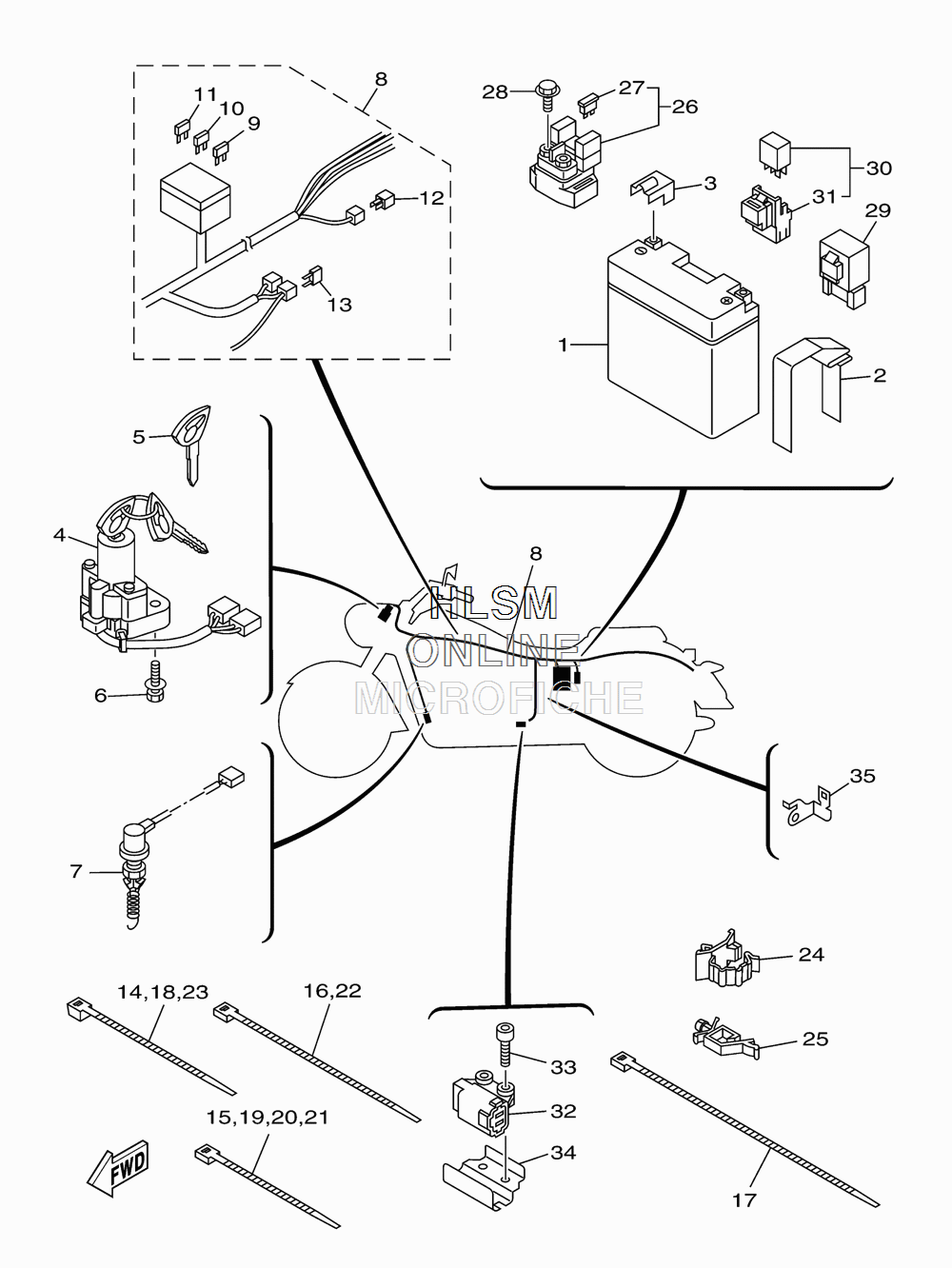

ELECTRICAL 2 для Yamaha ROADLINER S - 2013 года выпуска`
-
№АртикулНазвание
-
15EA-82100-11-00 BATTERY ASSY (GS GT14B-4)BATTERY ASSY (GS GT14B-4)
-
24AS-82131-01-00 BAND, BATTERYBAND, BATTERY
-
31D7-82119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
41D7-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
55PX-82511-09-00 BLANK KEYBLANK KEY
-
690109-08195-00 BOLTBOLT
-
71D7-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
81D7-82590-40-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
95JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
105JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
115JJ-82151-90-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
123XV-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
135JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
1490464-55001-00 CLAMPCLAMP
-
151UA-82591-00-00 BANDBAND
-
1690464-80002-00 CLAMPCLAMP
-
1790464-50003-00 CLAMPCLAMP
-
1890464-55001-00 CLAMPCLAMP
-
191UA-82591-00-00 BANDBAND
-
201UA-82591-00-00 BANDBAND
-
211UA-82591-00-00 BANDBAND
-
2290464-80002-00 CLAMPCLAMP
-
2390464-55001-00 CLAMPCLAMP
-
2490464-20002-00 CLAMPCLAMP
-
2590464-16021-00 CLAMPCLAMP
-
265JW-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
2736Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
2895027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
295VK-81950-30-00 RELAY ASSYRELAY ASSY
-
305EA-81950-20-00 RELAY ASSYRELAY ASSY
-
315EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
325PS-82576-01-00 EMERGENCY STOP SWITCHEMERGENCY STOP SWITCH
-
3390110-04003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
341D7-82388-00-00 PLATEPLATE
-
351D7-82581-00-00 STAY, CORD CLAMPSTAY, CORD CLAMP
