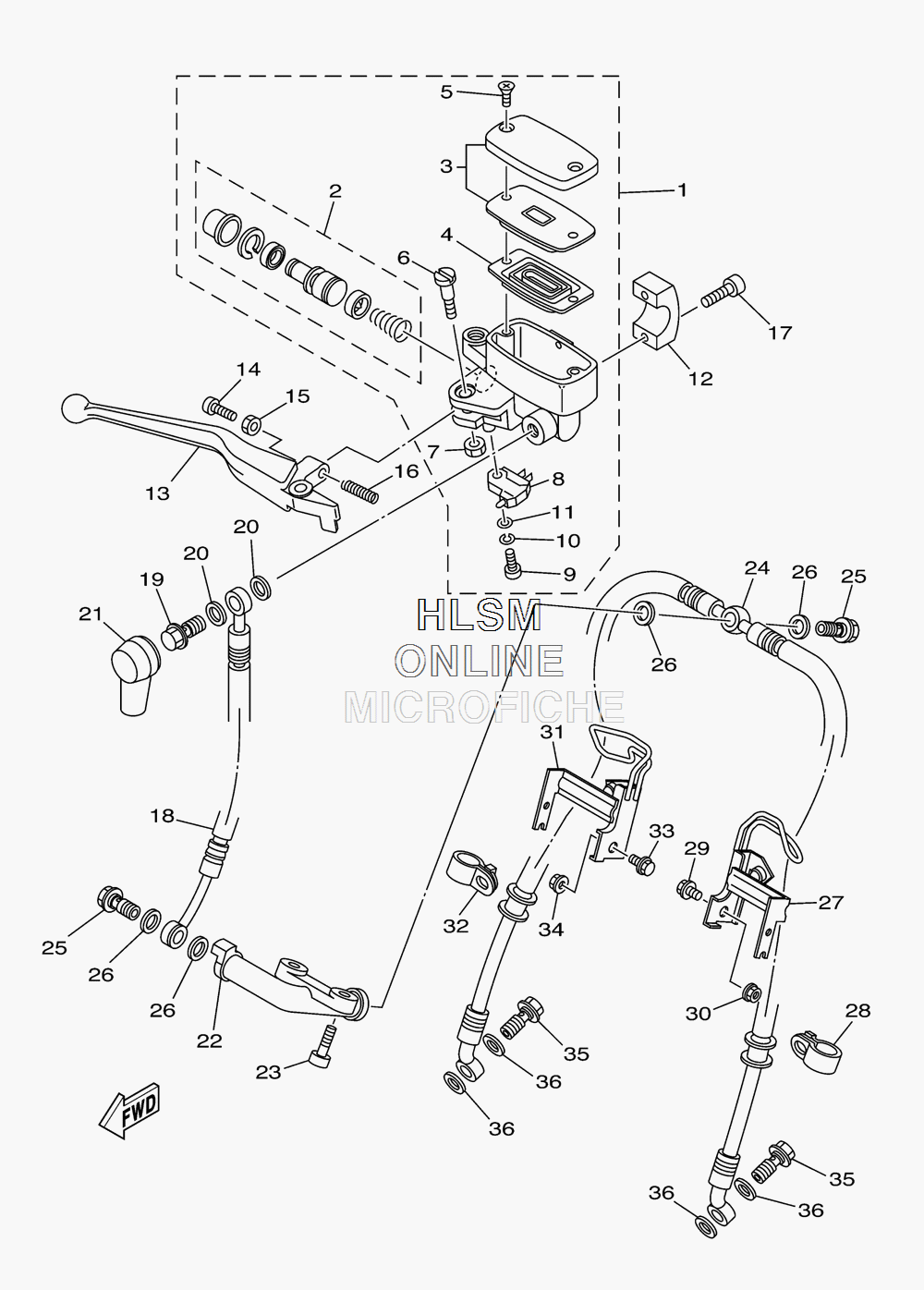

BRAKE - FRONT MASTER CYLINDER для Yamaha ROAD STAR SILVERADO S - 2013 года выпуска`
-
№АртикулНазвание
-
15VN-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25PX-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35VN-W2585-00-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
44NK-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
55VN-2589H-00-00 ...SCREW...SCREW
-
64NK-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
795604-06100-00 ...NUT, U...NUT, U
-
84HM-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
998507-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1092907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1192907-04600-00 ...WASHER...WASHER
-
125VN-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
135VN-83922-10-00 LEVER 2LEVER 2
-
1490149-06131-00 SCREW,SPEC'L SHAPESCREW,SPEC'L SHAPE
-
1590170-06010-00 NUT, HEXAGONNUT, HEXAGON
-
1690501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1791314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
185VN-25872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1990401-10020-00 BOLT, UNIONBOLT, UNION
-
2090430-10005-00 GASKETGASKET
-
214L0-25862-01-00 BOOT, MASTER CYLINDERBOOT, MASTER CYLINDER
-
224NK-25885-00-00 JOINTJOINT
-
2391317-06020-00 BOLTBOLT
-
245VN-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
2590401-10020-00 BOLT, UNIONBOLT, UNION
-
2690430-10005-00 GASKETGASKET
-
274WM-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
2890461-10132-00 CLAMPCLAMP
-
2990105-06007-00 BOLT, FLANGEBOLT, FLANGE
-
3095707-08500-00 NUT, FLANGENUT, FLANGE
-
314WM-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3290461-10132-00 CLAMPCLAMP
-
3390105-06007-00 BOLT, FLANGEBOLT, FLANGE
-
3495707-08500-00 NUT, FLANGENUT, FLANGE
-
3590401-10020-00 BOLT, UNIONBOLT, UNION
-
3690430-10005-00 GASKETGASKET
