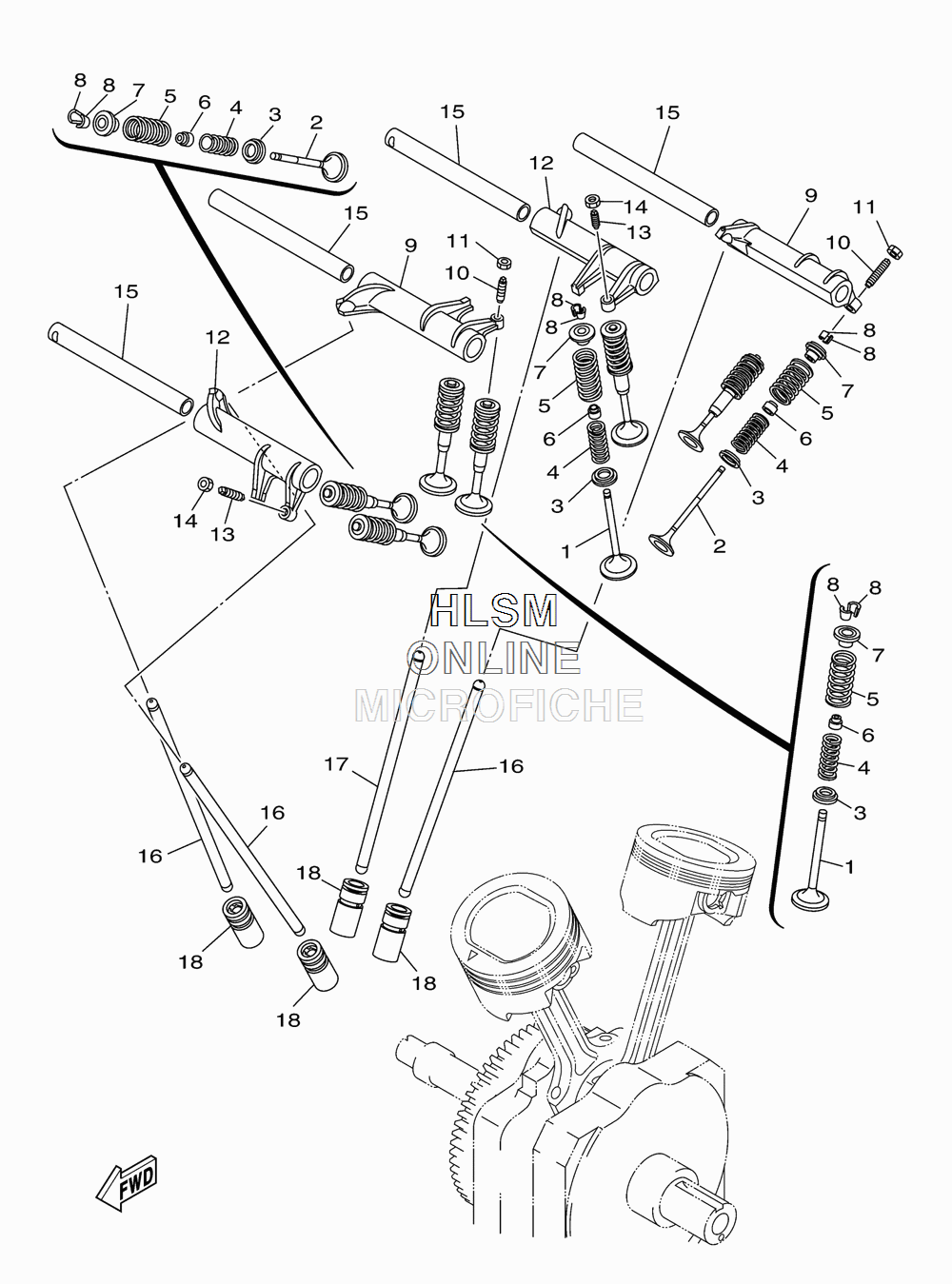

VALVE для Yamaha ROAD STAR SILVERADO S - 2013 года выпуска`
-
№АртикулНазвание
-
15YU-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
25YU-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
326H-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
44WM-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
54WM-12114-00-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
64KM-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
726H-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
84G0-12118-00-00 COTTER, VALVECOTTER, VALVE
-
95PX-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
1031G-12159-02-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1131G-12158-00-00 NUT, LOCKNUT, LOCK
-
125PX-12161-00-00 ARM, VALVE ROCKER 2ARM, VALVE ROCKER 2
-
1331G-12159-02-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1431G-12158-00-00 NUT, LOCKNUT, LOCK
-
151D7-12146-00-00 SHAFT, ROCKERSHAFT, ROCKER
-
165PX-12154-00-00 ROD, VALVE PUSHROD, VALVE PUSH
-
175PX-12144-00-00 ROD, VALVE PUSH 2ROD, VALVE PUSH 2
-
184WM-12153-10-00 LIFTER, VALVELIFTER, VALVE
