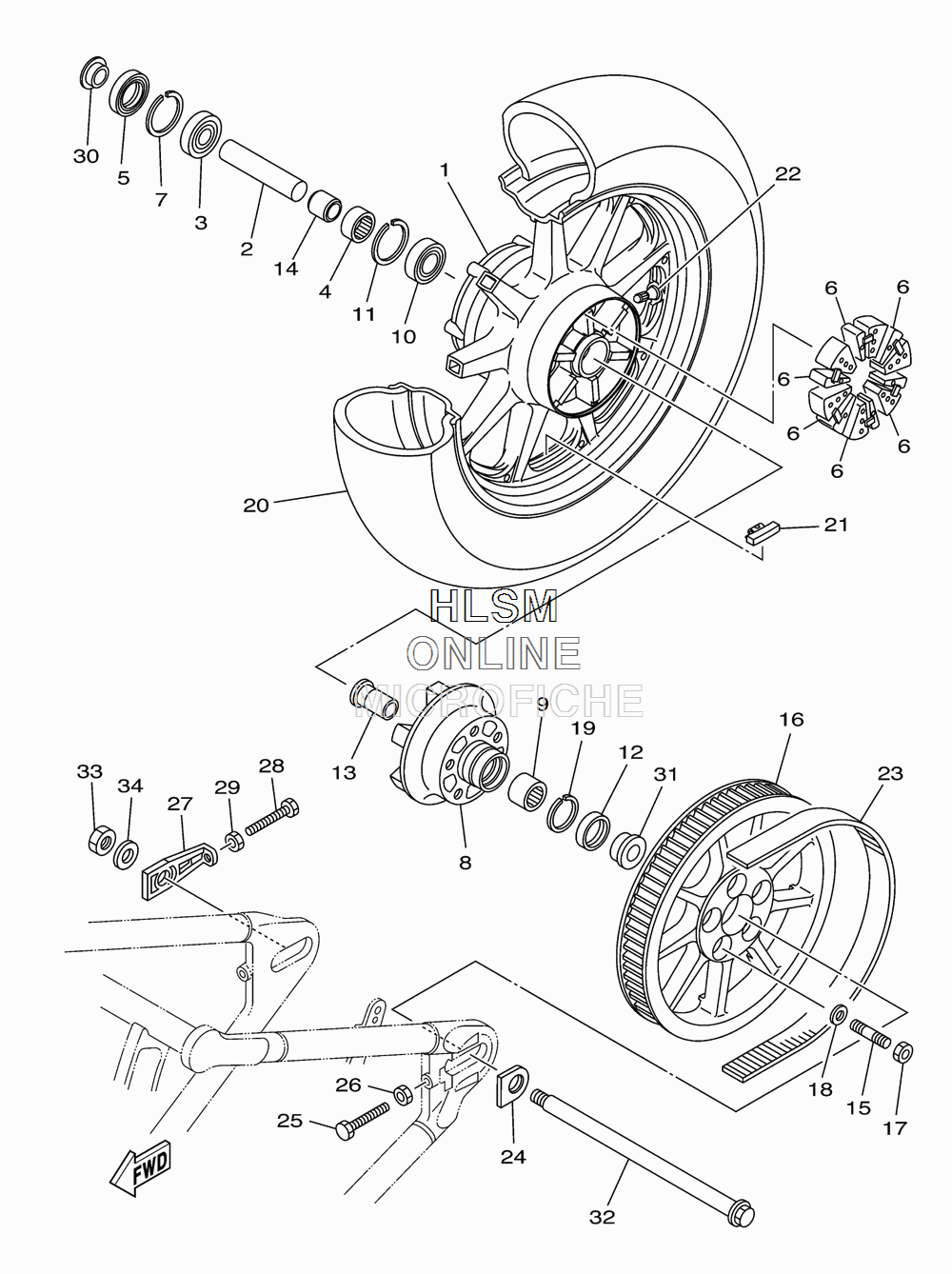

WHEEL - REAR для Yamaha ROAD STAR S - 2013 года выпуска`
-
№АртикулНазвание
-
15VN-25338-00-33 CAST WHEEL, REAR (YB FOR SMX)CAST WHEEL, REAR (YB FOR SMX)
-
290560-20339-00 SPACERSPACER
-
393306-30437-00 BEARINGBEARING
-
493317-33590-00 BEARINGBEARING
-
593106-28001-00 OIL SEALOIL SEAL
-
64WM-25364-00-00 DAMPERDAMPER
-
799009-52500-00 CIRCLIPCIRCLIP
-
85VN-25366-10-00 CLUTCH, HUBCLUTCH, HUB
-
993311-32698-00 BEARINGBEARING
-
1093306-30437-00 BEARINGBEARING
-
1199009-52500-00 CIRCLIPCIRCLIP
-
1293106-30004-00 OIL SEAL, DD-TYPEOIL SEAL, DD-TYPE
-
134WM-25376-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
145VN-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1595617-12630-00 BOLT, STUDBOLT, STUD
-
165VN-25470-21-00 SPROCKET, DRIVEN (70T)SPROCKET, DRIVEN (70T)
-
1795614-12100-00 NUT, UNUT, U
-
1890201-126A7-00 WASHER, PLATEWASHER, PLATE
-
1993450-35163-00 CIRCLIPCIRCLIP
-
2094115-16012-00 TIRE (150/80-16 M/C 71H) BSTIRE (150/80-16 M/C 71H) BS
-
215MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
215MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
215MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
2293900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
235PX-46241-10-00 V-BELTV-BELT
-
244WM-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
2590101-10001-00 BOLTBOLT
-
2690170-10003-00 NUTNUT
-
274WM-25389-00-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
2890101-10001-00 BOLTBOLT
-
2990170-10003-00 NUTNUT
-
3090387-20033-00 COLLARCOLLAR
-
3190387-202X9-00 COLLARCOLLAR
-
324WM-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
3390185-18009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3490201-185R7-00 WASHER, PLATEWASHER, PLATE
