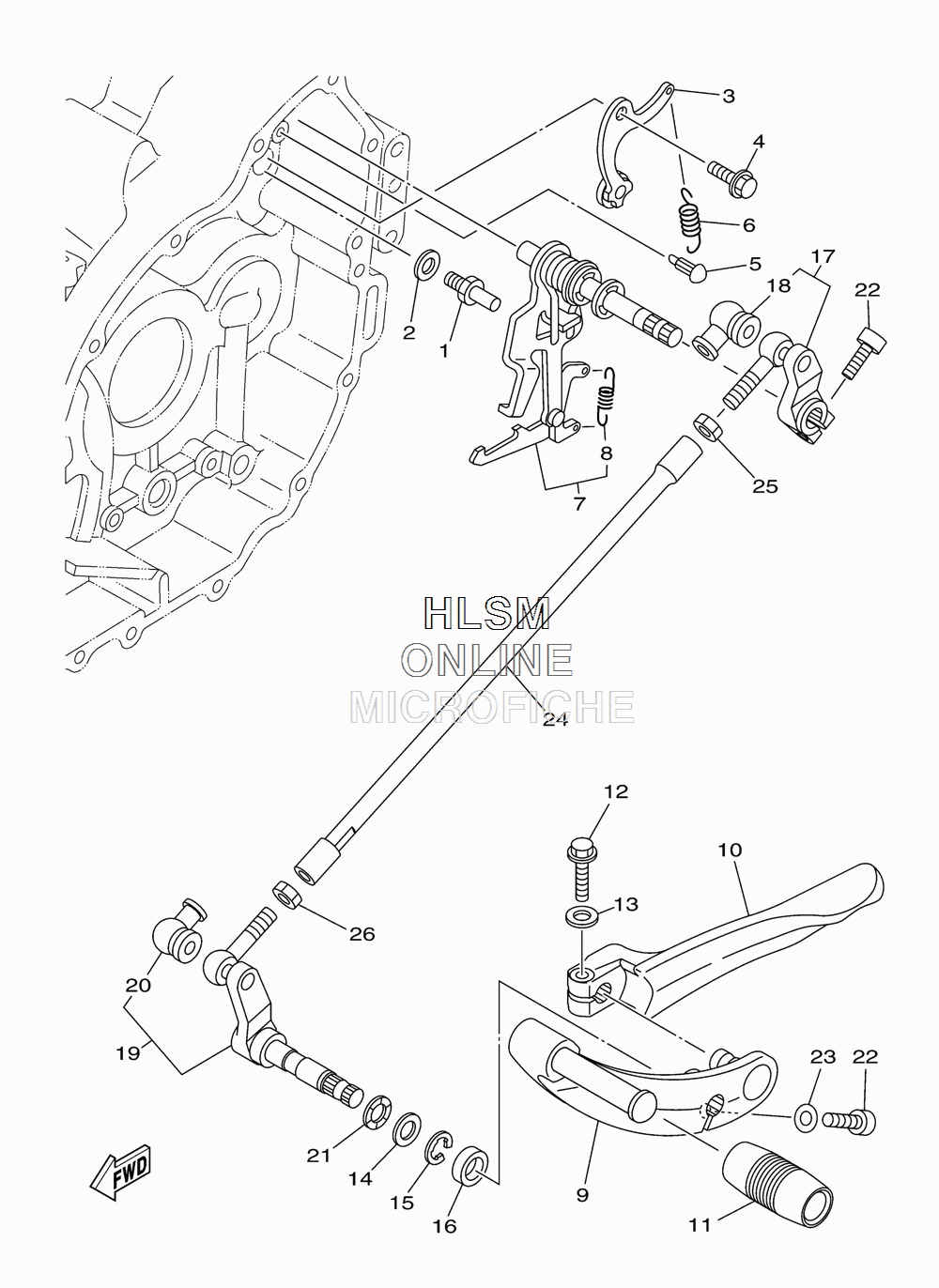

SHIFT SHAFT для Yamaha ROAD STAR S - 2013 года выпуска`
-
№АртикулНазвание
-
190109-08049-00 BOLTBOLT
-
290201-08085-00 WASHER, PLATEWASHER, PLATE
-
326H-18140-02-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
490109-06048-00 BOLTBOLT
-
5132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
690506-16006-00 SPRING, TENSIONSPRING, TENSION
-
74WM-18101-01-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
890506-08227-00 ...SPRING, TENSION...SPRING, TENSION
-
91D7-18162-10-00 PEDAL, SHIFTPEDAL, SHIFT
-
101D7-18163-10-00 PEDAL, REARPEDAL, REAR
-
115VN-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
1291314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1392902-06600-00 WASHER, PLATEWASHER, PLATE
-
1490201-12036-00 WASHER, PLATEWASHER, PLATE
-
1599001-10600-00 CIRCLIPCIRCLIP
-
164WM-18154-00-00 COVER, DUSTCOVER, DUST
-
175VN-18130-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
182H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
195VN-18164-00-00 KNOB, SHIFTERKNOB, SHIFTER
-
202H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
2190206-12M00-00 WASHER, WAVEWASHER, WAVE
-
2291314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2392902-06600-00 WASHER, PLATEWASHER, PLATE
-
244WM-18115-00-00 ROD, SHIFTROD, SHIFT
-
2595304-08700-00 NUTNUT
-
2690170-08358-00 NUTNUT
