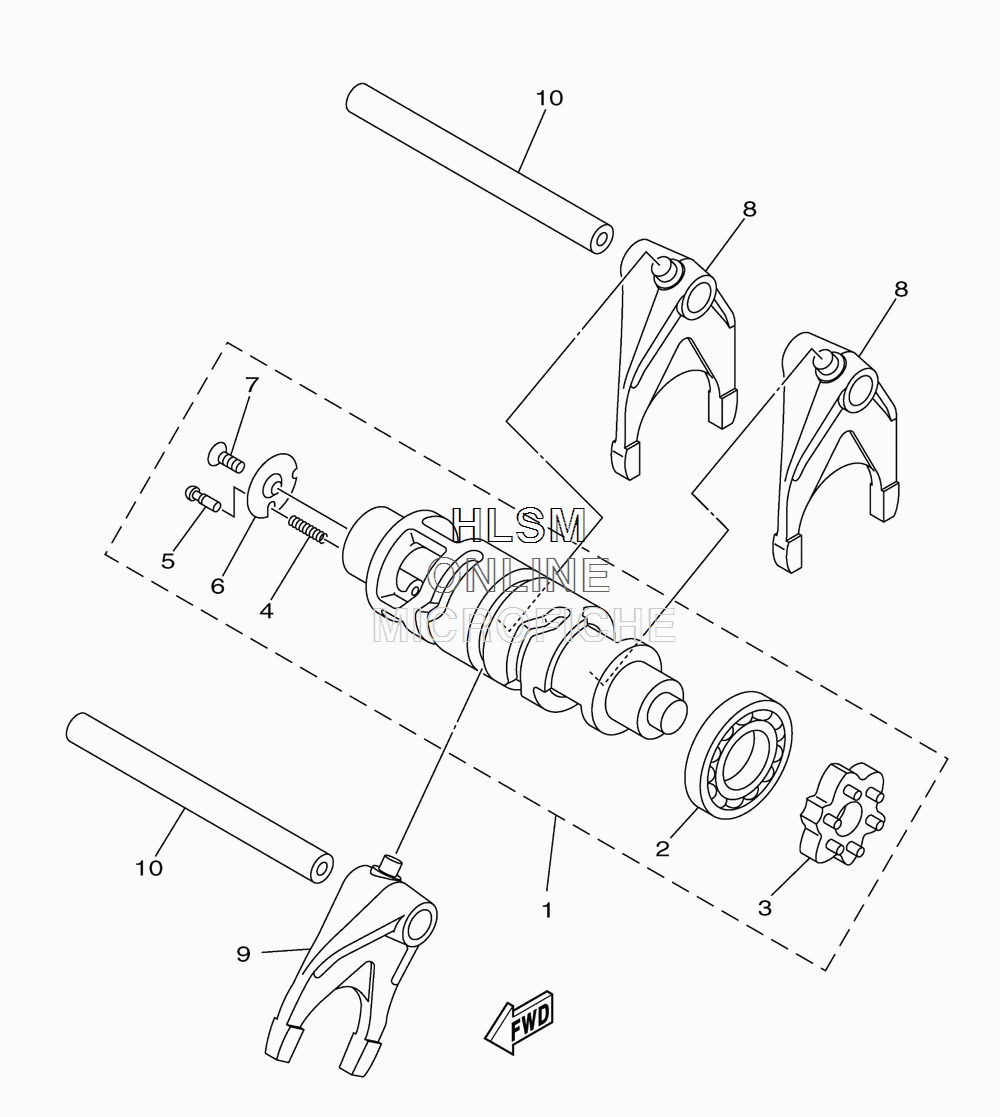

SHIFT CAM W/ FORK для Yamaha RAIDER S - 2013 года выпуска`
-
№АртикулНазвание
-
11D7-18540-10-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293316-00501-00 ...BEARING, CYL.#16...BEARING, CYL.#16
-
34XV-18185-00-00 ...SEGMENT...SEGMENT
-
490501-06022-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
54UN-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
64UN-18566-00-00 ...PLATE, SIDE 2...PLATE, SIDE 2
-
790149-05016-00 ...SCREW...SCREW
-
81D7-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
91D7-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
104NK-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
