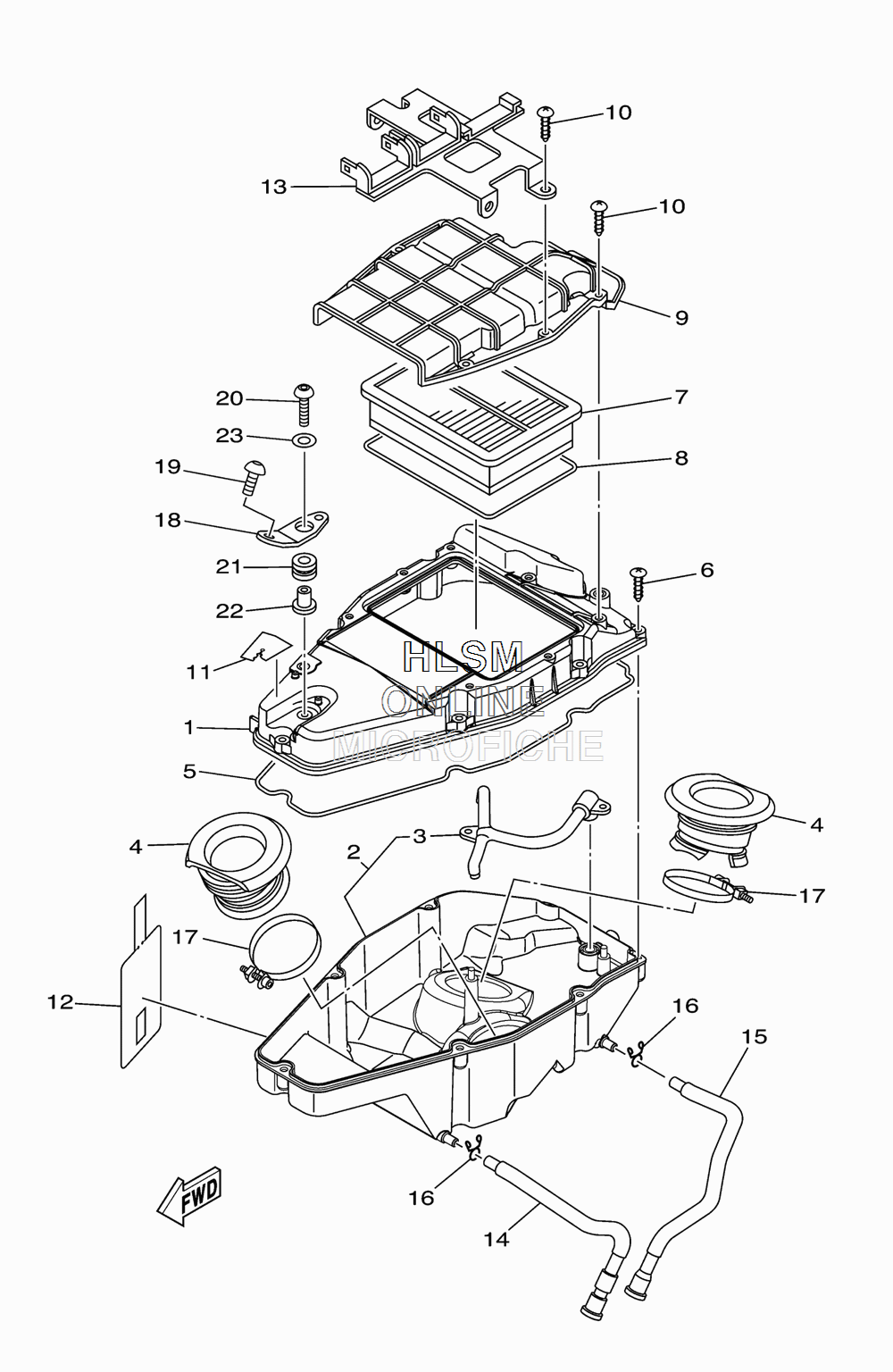

AIR CLEANER W/ INTAKE для Yamaha RAIDER S - 2013 года выпуска`
-
№АртикулНазвание
-
11D7-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
25C7-W1443-00-00 CAP, CLEANER CASE SUP ASSY 1CAP, CLEANER CASE SUP ASSY 1
-
31D7-14419-00-00 ...PIPE...PIPE
-
41D7-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
51D7-14457-00-00 SEALSEAL
-
697707-50030-00 SCREW, TAPPINGSCREW, TAPPING
-
71D7-14461-00-00 ELEMENT, AIR CLEANER 2ELEMENT, AIR CLEANER 2
-
81D7-14452-00-00 SEALSEAL
-
91D7-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
1097707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
111D7-14425-00-00 DAMPER 1DAMPER 1
-
121D7-14417-00-00 COVER 1COVER 1
-
135C7-83955-00-00 BRACKET 1BRACKET 1
-
145C7-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
155C7-1443G-00-00 PIPE, DRAIN 2PIPE, DRAIN 2
-
1690467-09103-00 CLIPCLIP
-
1790450-56005-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
185C7-14414-00-00 STAY 2STAY 2
-
1992012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2092012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2190480-14023-00 GROMMETGROMMET
-
2290387-07391-00 COLLARCOLLAR
-
2390201-064R0-00 WASHER, PLATEWASHER, PLATE
