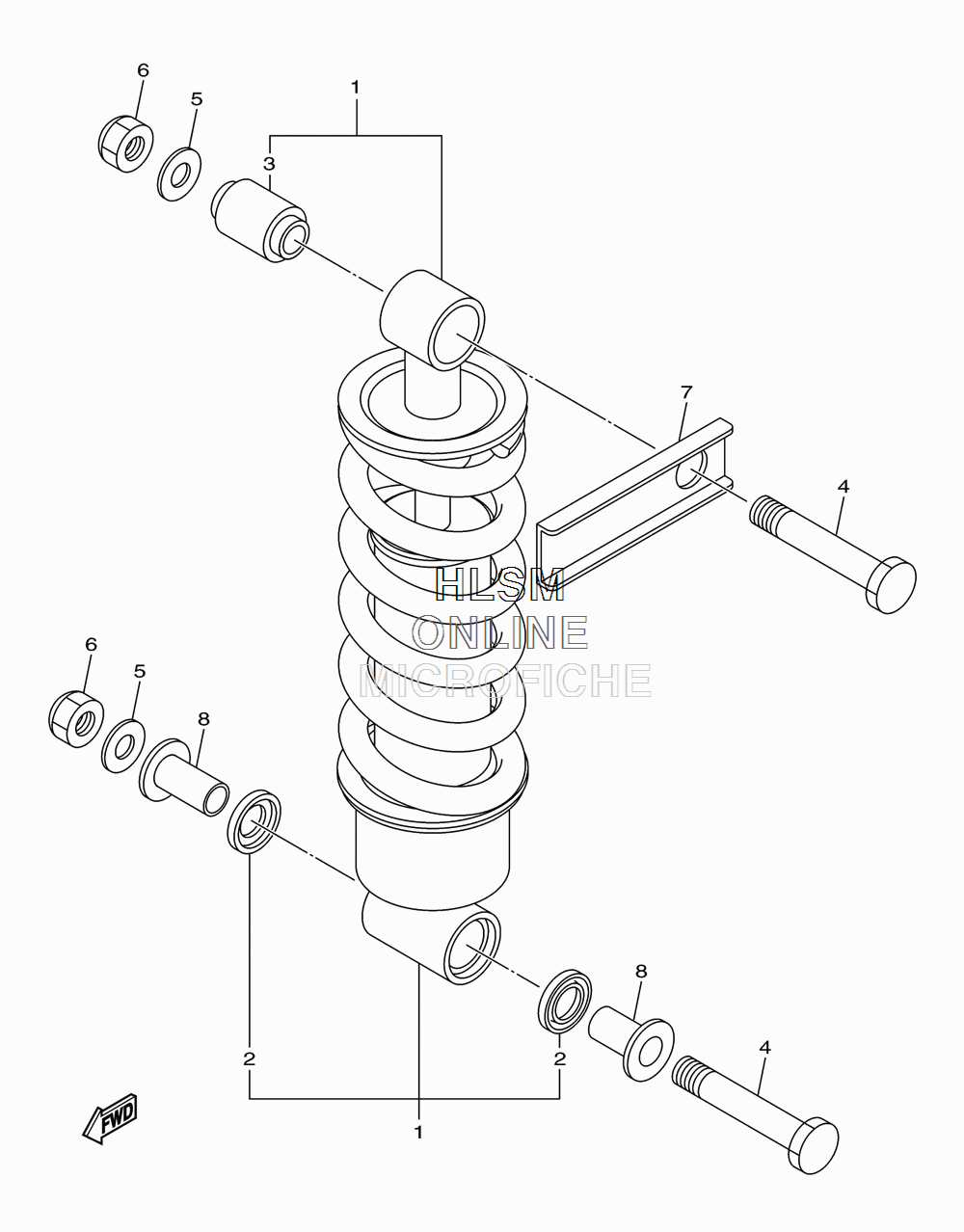

SUSPENSION - REAR SHOCK ABSORBER для Yamaha FZ6R - 2013 года выпуска`
-
№АртикулНазвание
-
120S-22210-40-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
293109-18020-00 ...OIL SEAL,SDO-TYPE...OIL SEAL,SDO-TYPE
-
334L-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
490109-125F1-00 BOLTBOLT
-
590201-12050-00 WASHER, PLATEWASHER, PLATE
-
695612-12100-00 NUT, UNUT, U
-
720S-22243-00-00 WASHER 1WASHER 1
-
890387-123X6-00 COLLARCOLLAR
