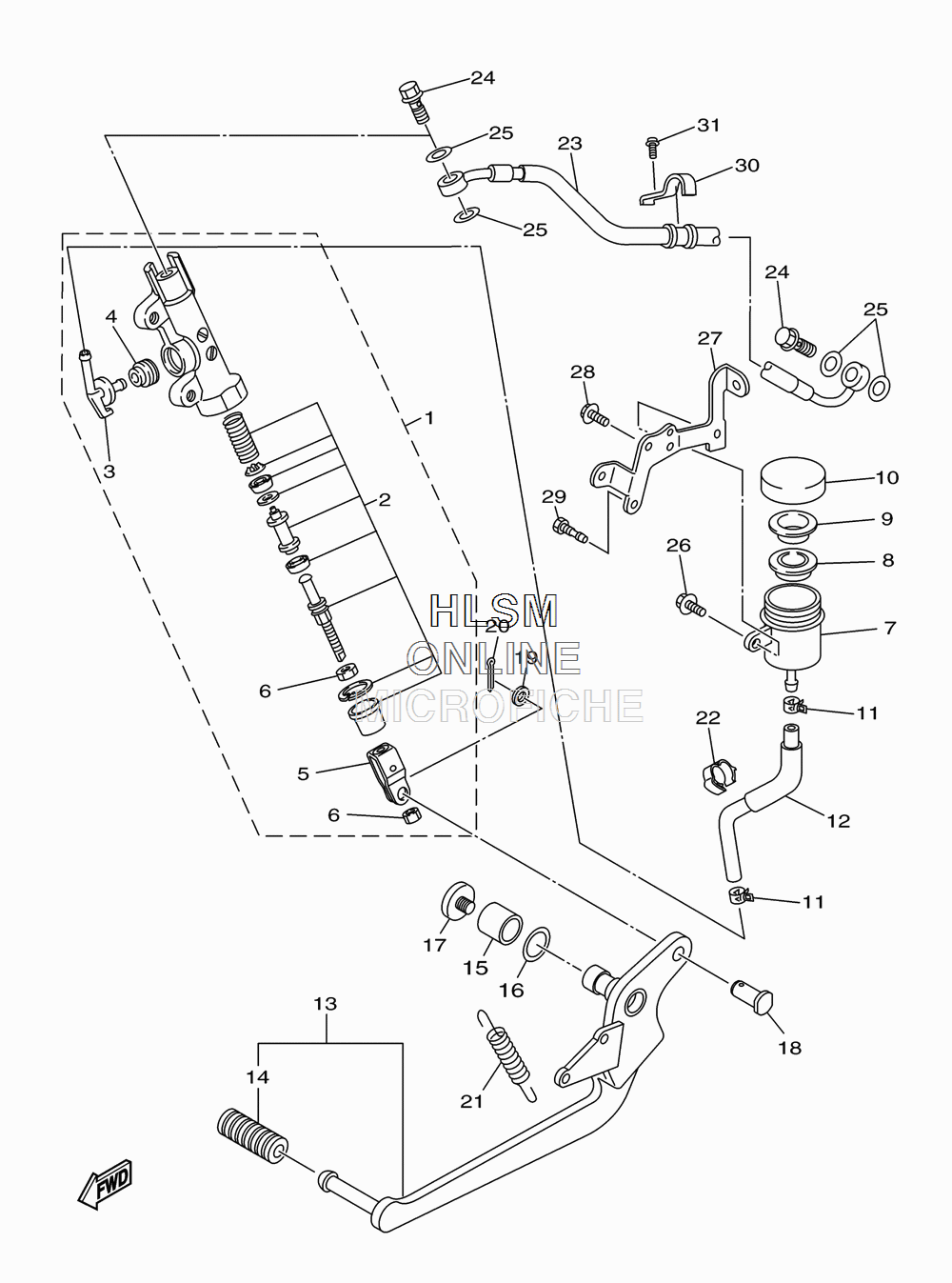

BRAKE - REAR MASTER CYLINDER для Yamaha FZ6R - 2013 года выпуска`
-
№АртикулНазвание
-
12D1-2583V-00-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
25VX-W0042-51-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
32D1-2582A-00-00 ...JOINT...JOINT
-
44BP-2585F-01-00 ...O-RING...O-RING
-
54BP-27222-02-00 ...JOINT...JOINT
-
690170-08010-00 ...NUT...NUT
-
74P5-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
85SL-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
95SL-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
105SL-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
1190467-11044-00 CLIPCLIP
-
1220S-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1320S-27200-01-00 PEDAL, BRAKEPEDAL, BRAKE
-
145EB-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
1590386-14171-00 BUSHBUSH
-
1690206-14086-00 WASHER, WAVEWASHER, WAVE
-
1790110-06249-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1890240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1990201-08066-00 WASHER, PLATEWASHER, PLATE
-
2091402-20012-00 PIN, COTTERPIN, COTTER
-
2190506-23008-00 SPRING, TENSIONSPRING, TENSION
-
2290464-16003-00 CLAMPCLAMP
-
2320S-2581K-00-00 HOSE, BRAKE 5HOSE, BRAKE 5
-
2490401-10020-00 BOLT, UNIONBOLT, UNION
-
2590430-10005-00 GASKETGASKET
-
2690119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2720S-21228-00-00 BRACKET, RESERVE TANKBRACKET, RESERVE TANK
-
2895802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2990153-06034-00 SCREW, HEXAGONSCREW, HEXAGON
-
3020S-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3195022-06012-00 BOLT, FLANGEBOLT, FLANGE
