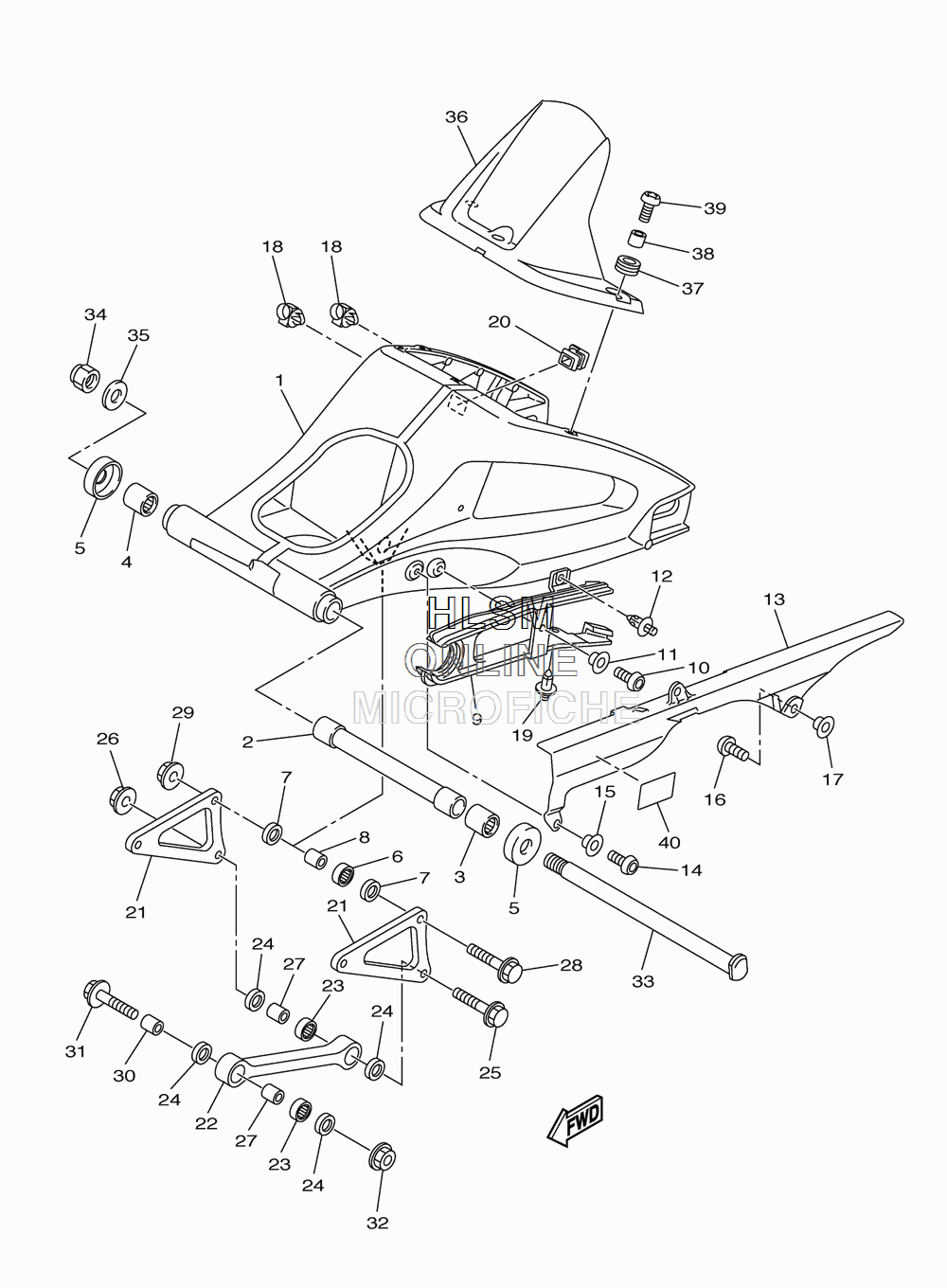

SUSPENSION - REAR ARM для Yamaha FZ1 - 2013 года выпуска`
-
№АртикулНазвание
-
139P-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
239P-22184-00-00 BUSHBUSH
-
393317-42599-00 BEARINGBEARING
-
493315-42536-00 BEARING, CYL.#15BEARING, CYL.#15
-
55JJ-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
693315-41762-00 BEARINGBEARING
-
793109-17071-00 OIL SEALOIL SEAL
-
890387-1012A-00 COLLARCOLLAR
-
92D1-22151-00-00 SEAL, GUARDSEAL, GUARD
-
1092012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1190387-06130-00 COLLARCOLLAR
-
1290269-07007-00 RIVETRIVET
-
135SL-22311-00-00 CASE, CHAINCASE, CHAIN
-
1492012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1590387-06130-00 COLLARCOLLAR
-
1690110-06102-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1790387-06009-00 COLLARCOLLAR
-
1890464-17003-00 CLAMPCLAMP
-
1990269-07008-00 RIVETRIVET
-
202D1-22117-00-00 CAPCAP
-
212D1-2217A-10-00 ARM, RELAYARM, RELAY
-
222D1-2217M-00-00 ARM 1ARM 1
-
2393315-31758-00 BEARINGBEARING
-
2493109-17071-00 OIL SEALOIL SEAL
-
2590105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
2695602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
2790387-1012A-00 COLLARCOLLAR
-
2890105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
2995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
3090387-10043-00 COLLARCOLLAR
-
3190105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
3339P-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
3490185-18009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3590201-18013-00 WASHER, PLATEWASHER, PLATE
-
362D1-21650-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
3790480-12003-00 GROMMETGROMMET
-
3890387-06219-00 COLLARCOLLAR
-
3990149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
4014B-21668-00-00 LABEL, TIRELABEL, TIRE
