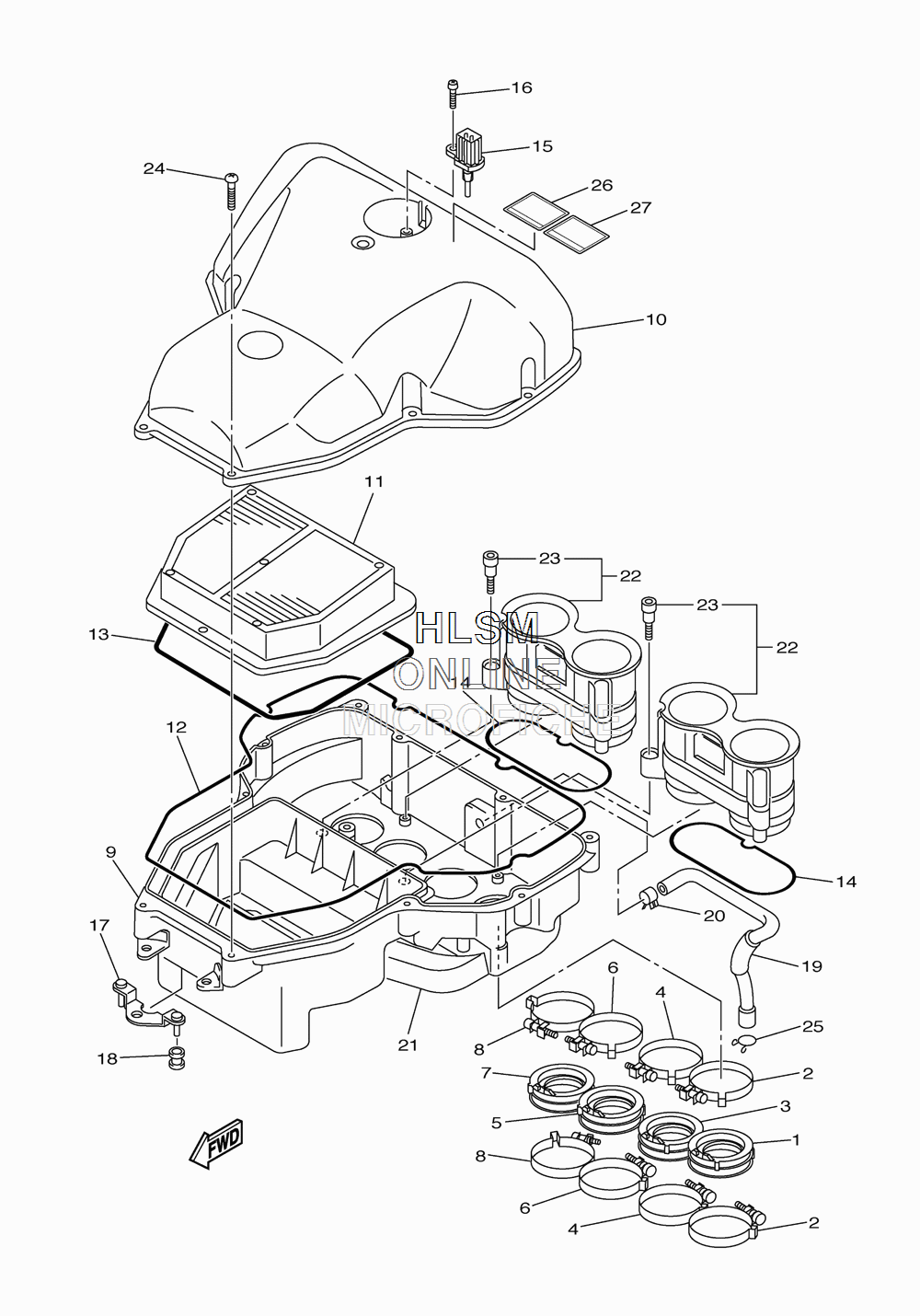

AIR CLEANER W/ INTAKE для Yamaha FZ1 - 2013 года выпуска`
-
№АртикулНазвание
-
15VY-13595-00-00 JOINTJOINT
-
290450-62002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
35VY-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
490450-62002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
55VY-13597-00-00 JOINT, CARBURETOR 3JOINT, CARBURETOR 3
-
690450-62002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
75VY-13598-00-00 JOINT, CARBURETOR 4JOINT, CARBURETOR 4
-
890450-62002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
92D1-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
102D1-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
112D1-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
122D1-14452-00-00 SEALSEAL
-
132D1-14462-00-00 SEALSEAL
-
145VY-14457-00-00 SEALSEAL
-
158FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1697702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
172D1-14498-00-00 STAY 1STAY 1
-
1890480-08264-00 GROMMETGROMMET
-
192D1-15393-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
2090467-14171-00 CLIPCLIP
-
212D1-14409-00-00 DAMPERDAMPER
-
222D1-1440B-00-00 JOINT ASSYJOINT ASSY
-
2390109-05005-00 BOLTBOLT
-
2497702-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
2590467-14015-00 CLIPCLIP
-
265VX-21684-00-00 PLATE, ROUTING (CALIF. ONLY)PLATE, ROUTING (CALIF. ONLY)
-
275SL-21686-00-00 PLATE, ROUTING 2 (CALIF. ONLY)PLATE, ROUTING 2 (CALIF. ONLY)
