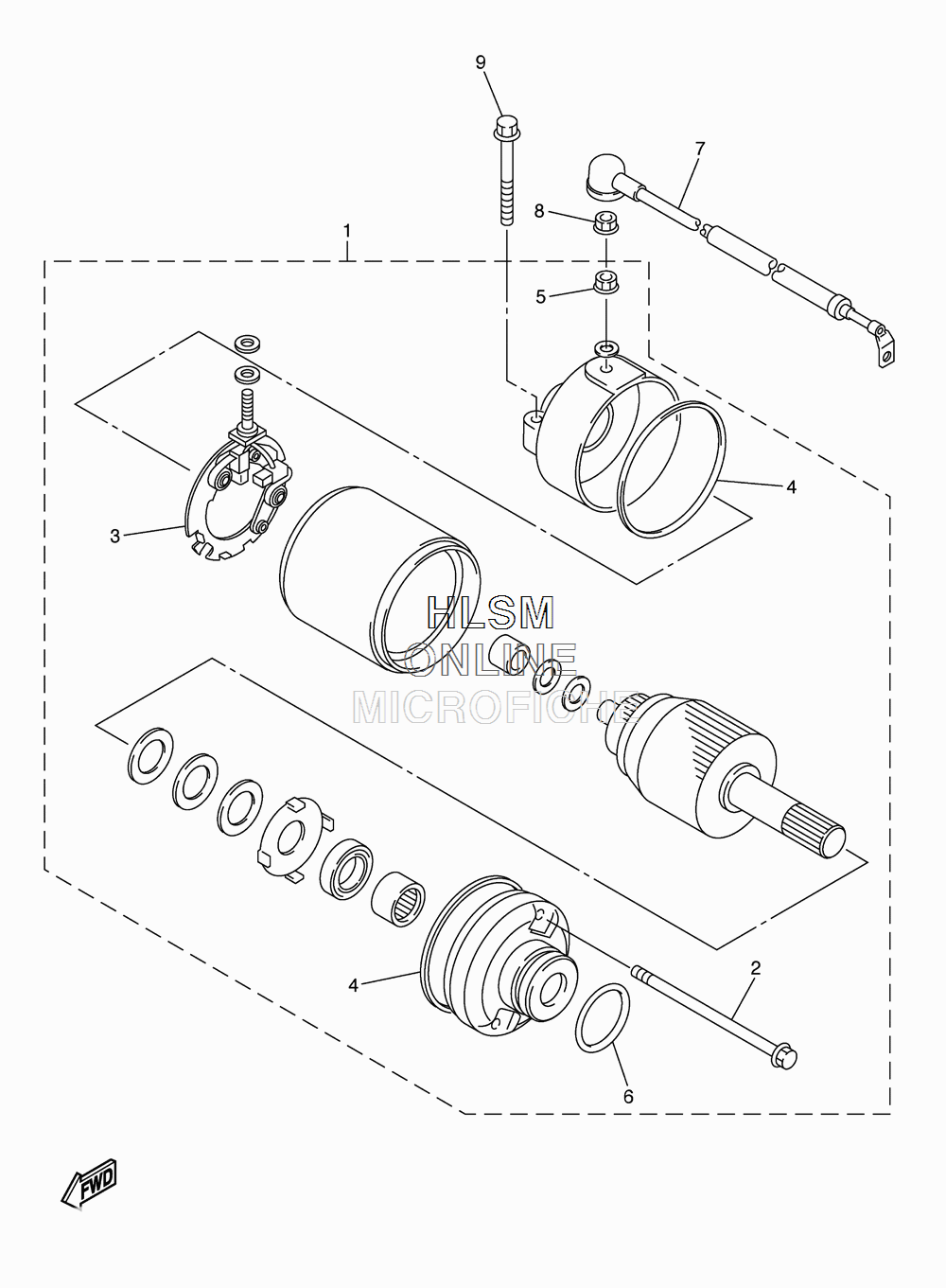

STARTING MOTOR для Yamaha YZF-R6 - 2012 года выпуска`
-
№АртикулНазвание
-
12C0-81890-00-00 MOTOR ASSYMOTOR ASSY
-
24WP-81826-00-00 ...BOLT...BOLT
-
34WP-81801-00-00 ...BRUSH SET...BRUSH SET
-
44WP-81844-00-00 ...GASKET...GASKET
-
54XV-8182A-00-00 ...NUT...NUT
-
61FK-81847-00-00 ...O-RING...O-RING
-
72C0-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
84XV-8182A-00-00 NUTNUT
-
990105-06083-00 BOLT, FLANGEBOLT, FLANGE
