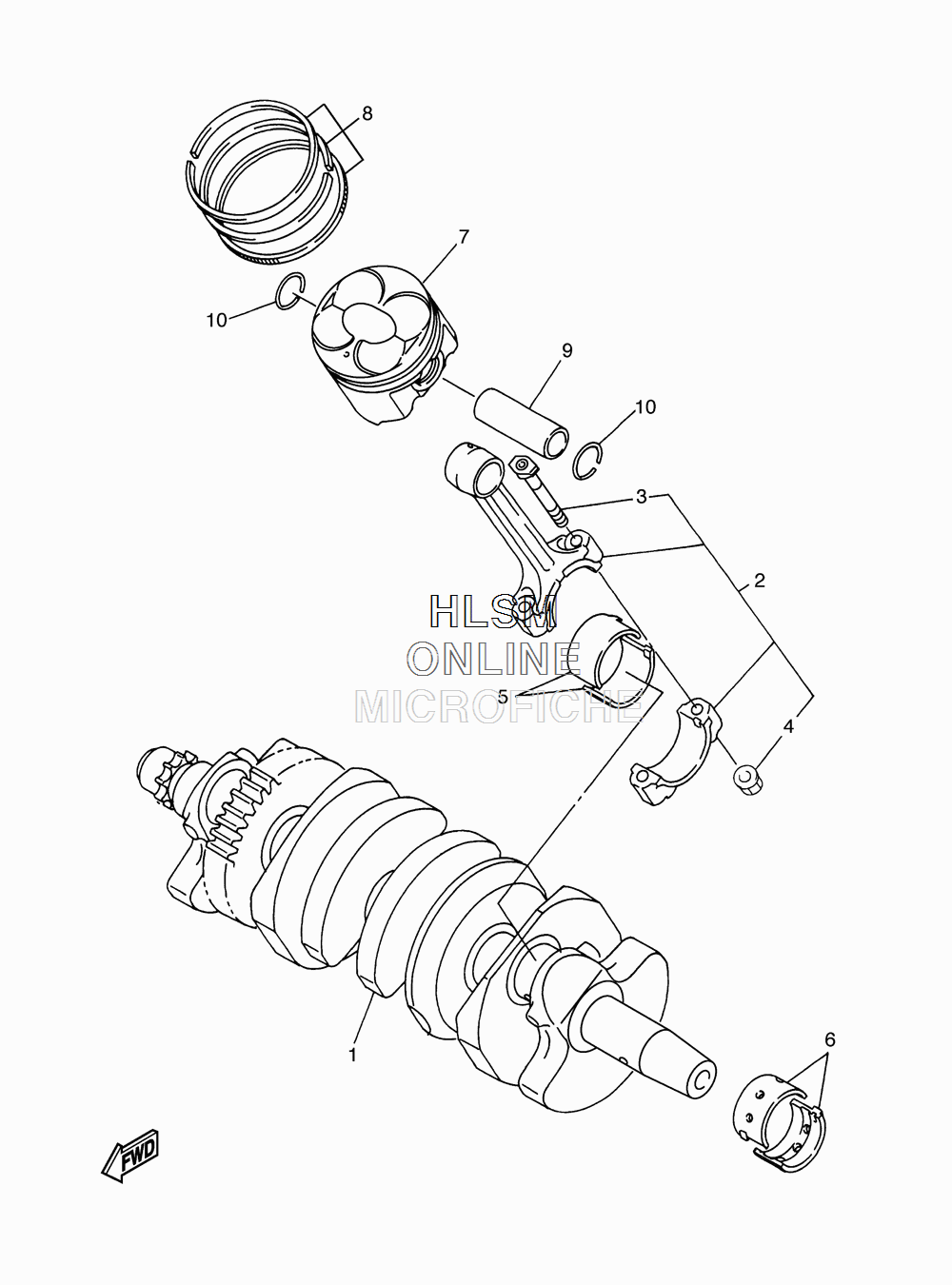

CRANKSHAFT - PISTON для Yamaha YZF-R6 - 2012 года выпуска`
-
№АртикулНазвание
-
12C0-11411-00-00 CRANKSHAFTCRANKSHAFT
-
213S-11650-01-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
32C0-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
490179-07001-00 ...NUT...NUT
-
513S-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
513S-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
513S-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
513S-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
613S-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
613S-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (WHITE)PLANE BEARING, CRANKSHAFT 1 (WHITE)
-
613S-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
613S-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
613S-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
713S-11631-00-00 PISTON (STD)PISTON (STD)
-
82C0-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
92C0-11633-00-00 PIN, PISTONPIN, PISTON
-
1093450-16159-00 CIRCLIPCIRCLIP
