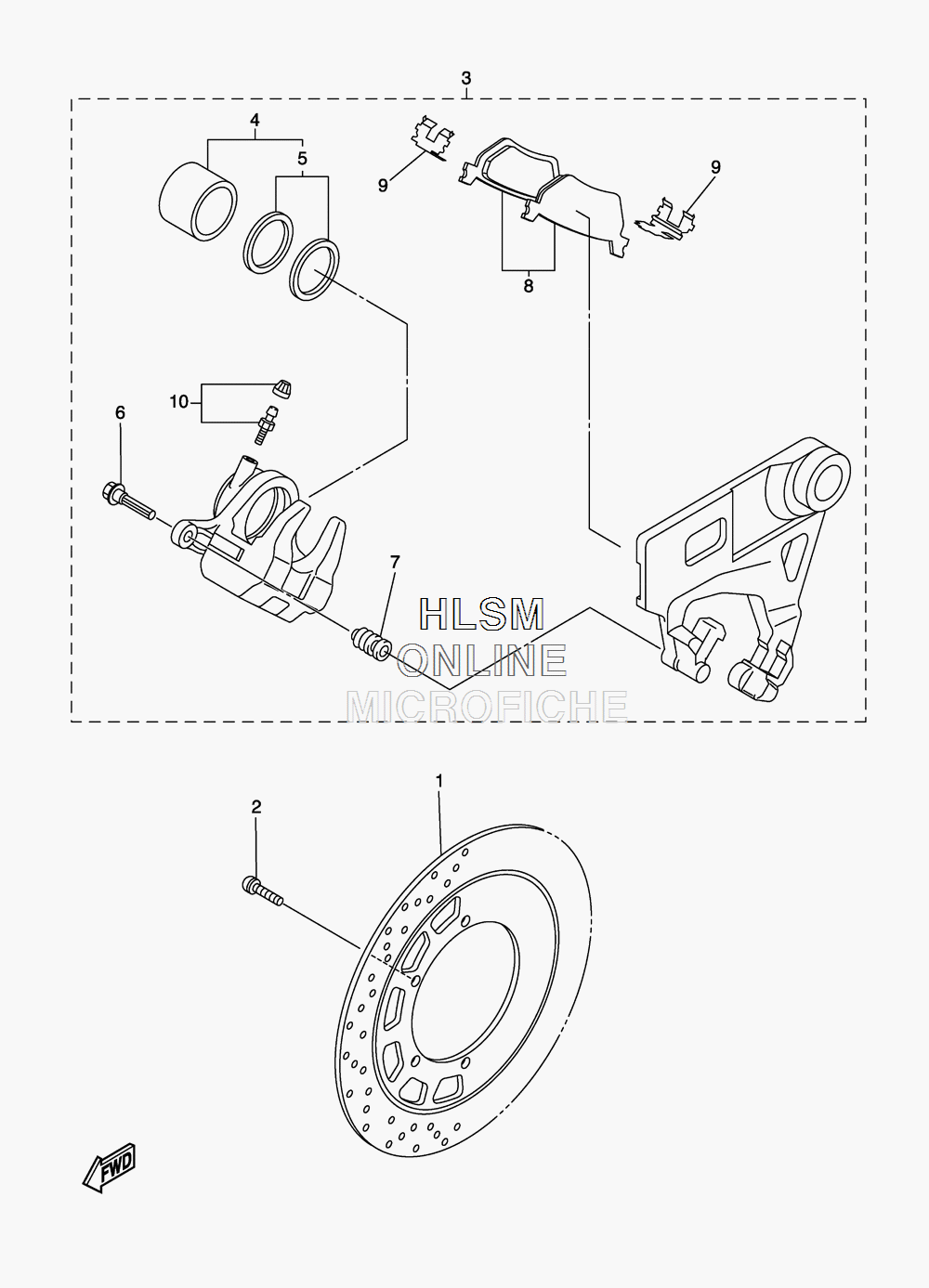

BRAKE - REAR CALIPER для Yamaha V STAR 950 TOURER - 2012 года выпуска`
-
№АртикулНазвание
-
13D8-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-083G4-00 BOLTBOLT
-
33D8-2580W-10-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
41D7-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
55JW-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
63P6-25914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
81D7-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
91D7-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
1051L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
