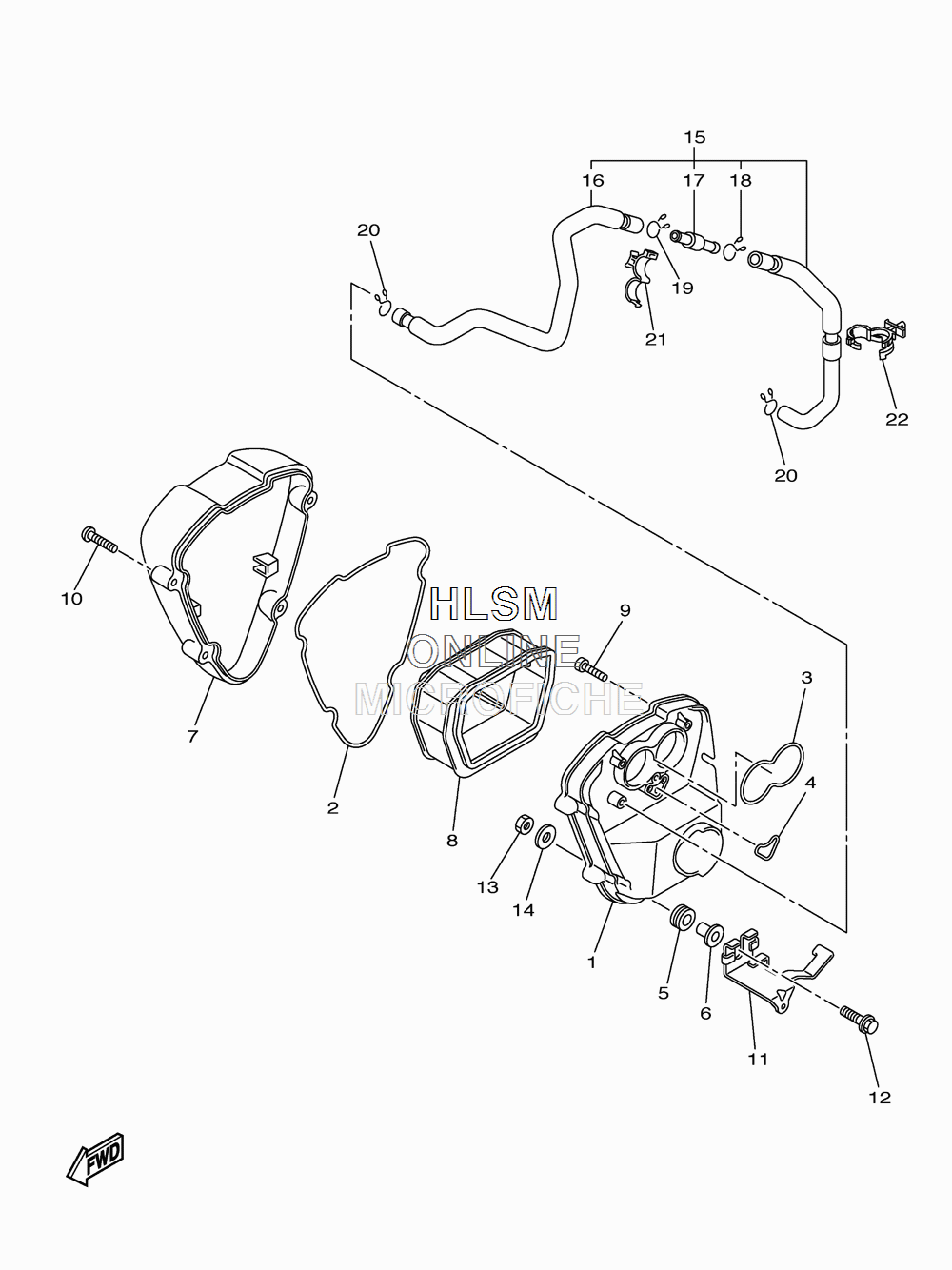

AIR CLEANER W/ INTAKE для Yamaha V STAR 950 TOURER - 2012 года выпуска`
-
№АртикулНазвание
-
15S7-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
24GA-14452-00-00 SEALSEAL
-
33D8-14457-00-00 SEALSEAL
-
43D8-14462-00-00 SEALSEAL
-
590480-11006-00 GROMMETGROMMET
-
690387-087L0-00 COLLARCOLLAR
-
73D8-14421-01-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
83D8-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
991312-05025-00 BOLTBOLT
-
1090111-05024-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
113D8-14498-10-00 STAY 1STAY 1
-
1297012-06020-00 BOLTBOLT
-
1395702-06500-00 NUTNUT
-
1490201-06088-00 WASHER, PLATEWASHER, PLATE
-
155S7-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
165S7-1113J-00-00 ...PIPE 3...PIPE 3
-
176S5-12594-00-00 ...JOINT, HOSE 4...JOINT, HOSE 4
-
1890467-170A2-00 ...CLIP...CLIP
-
1990467-170A2-00 CLIPCLIP
-
2090467-16195-00 CLIPCLIP
-
2190464-20191-00 CLAMPCLAMP
-
2290464-18011-00 CLAMPCLAMP
