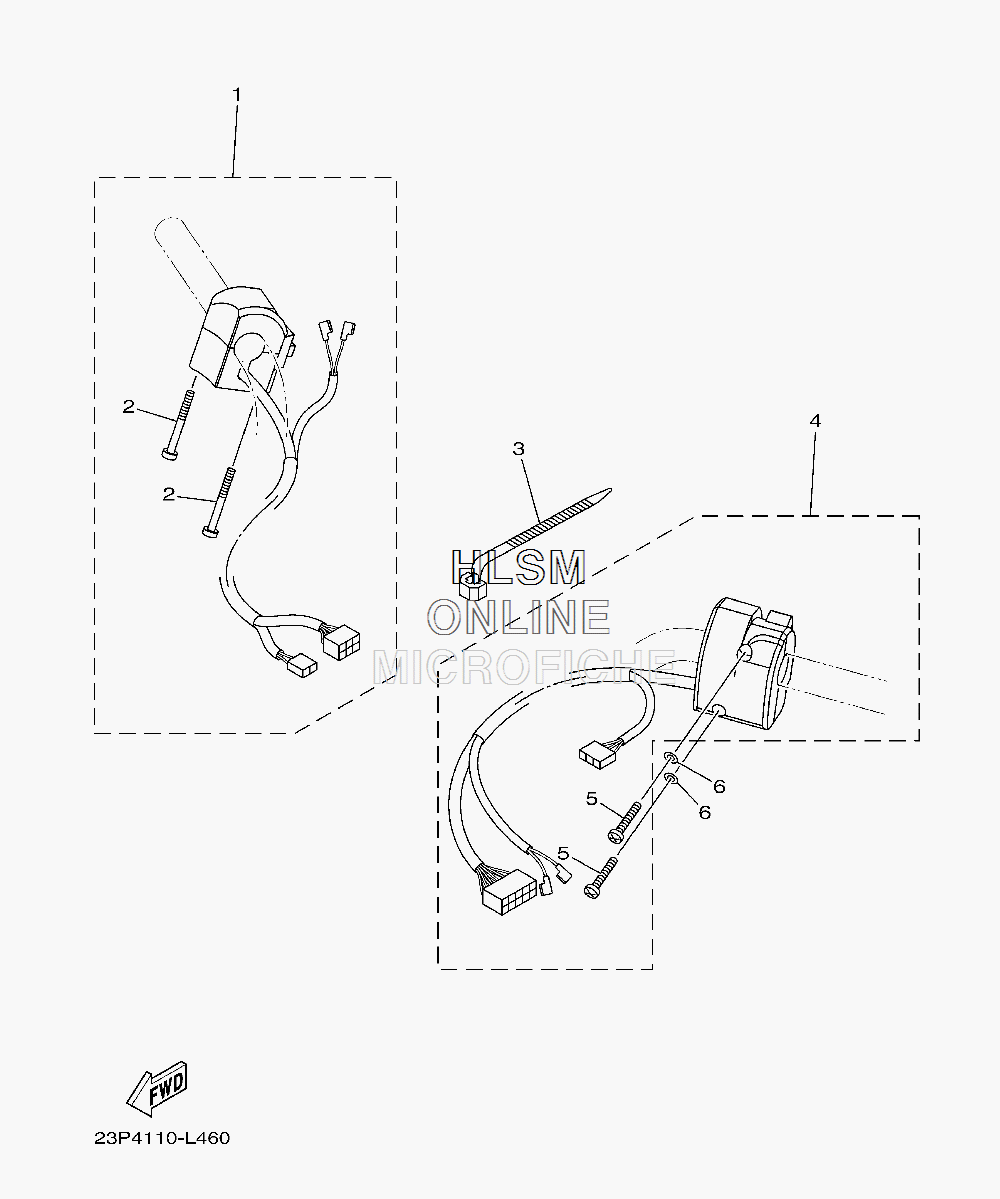

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha SUPER TENERE - 2012 года выпуска`
-
№АртикулНазвание
-
123P-83963-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
298507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
390464-13073-00 CLAMPCLAMP
-
423P-83973-10-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
598507-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
690201-05M04-00 WASHER, PLATEWASHER, PLATE
