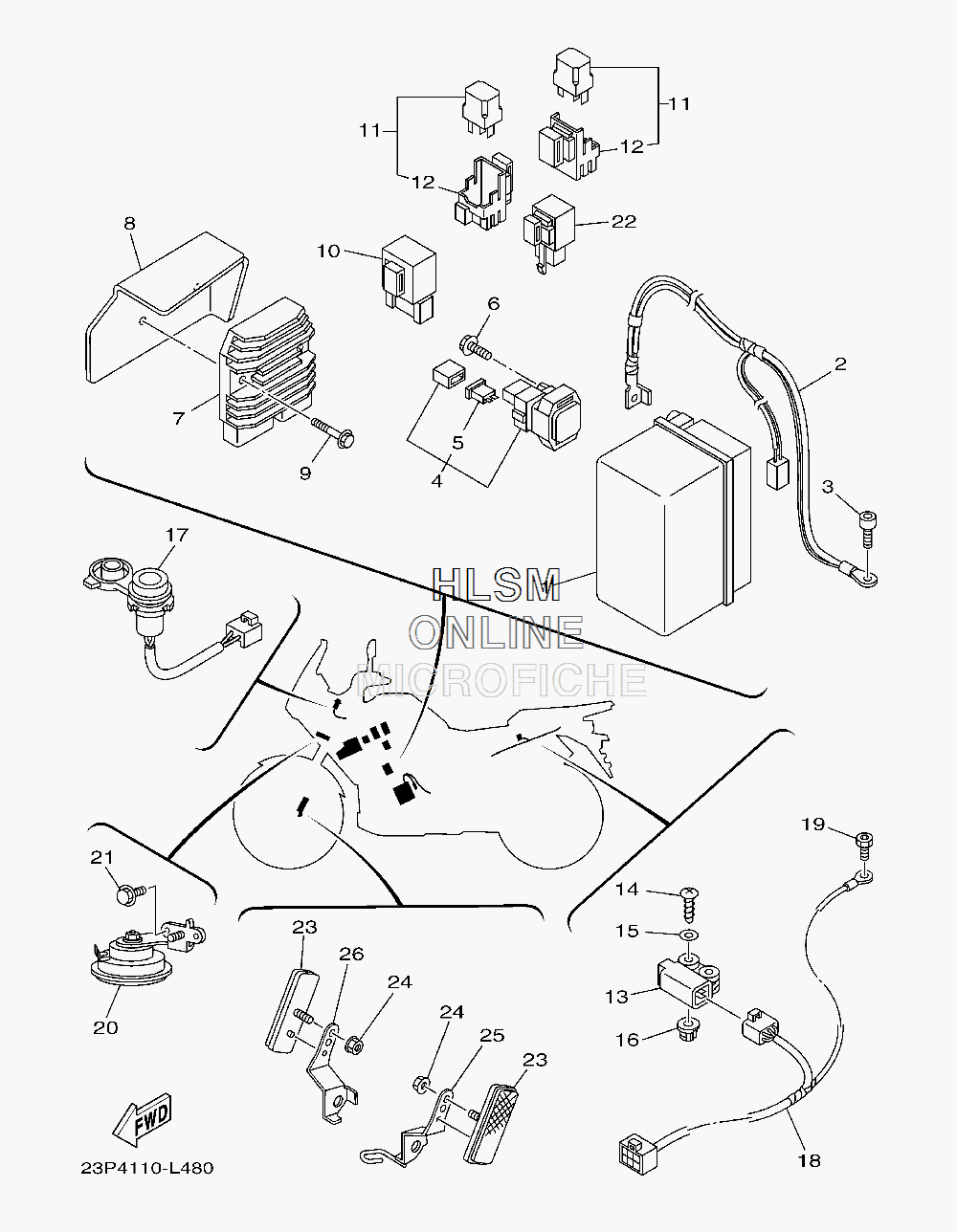

ELECTRICAL 2 для Yamaha SUPER TENERE - 2012 года выпуска`
-
№АртикулНазвание
-
123P-82100-00-00 BATTERY ASSY (GS YUASA YTZ12S)BATTERY ASSY (GS YUASA YTZ12S)
-
223P-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
391312-06012-00 BOLTBOLT
-
44YR-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
51AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
695022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
71D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
823P-81975-00-00 PLATE, RECTIFIER FITTINGPLATE, RECTIFIER FITTING
-
995802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
105VK-81950-40-00 RELAY ASSYRELAY ASSY
-
115JJ-81950-20-00 RELAY ASSYRELAY ASSY
-
125JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
135VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
1497702-40025-00 SCREW, TAPPINGSCREW, TAPPING
-
1590201-04030-00 WASHER, PLATEWASHER, PLATE
-
164B4-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
1723P-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
1823P-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1990153-06044-00 SCREW, HEXAGONSCREW, HEXAGON
-
2023P-83371-00-00 HORNHORN
-
2190105-06181-00 BOLT, FLANGEBOLT, FLANGE
-
224MY-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
2311H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
2495702-05500-00 NUT, FLANGENUT, FLANGE
-
2523P-85112-01-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
2623P-85122-01-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
