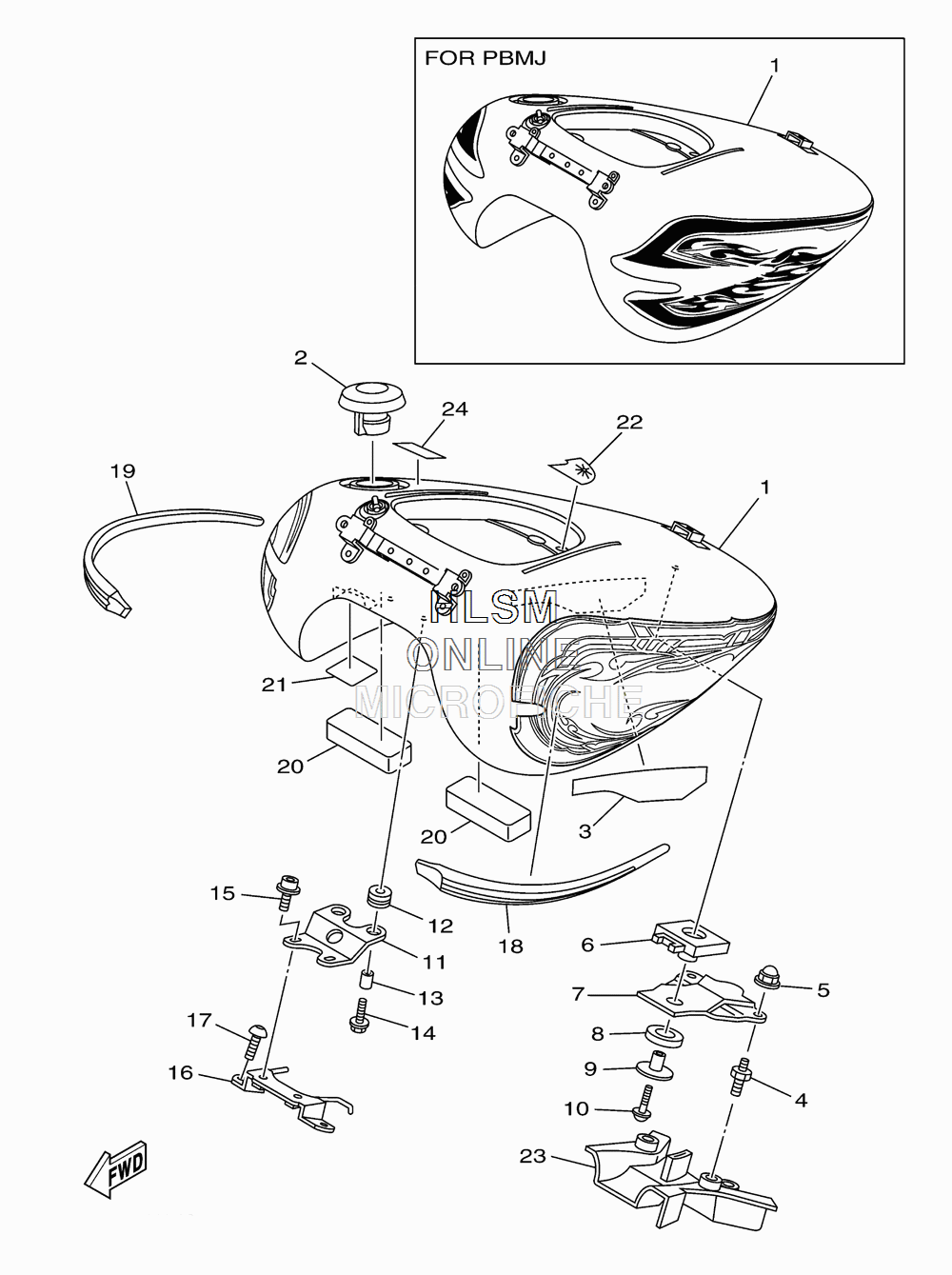

FUEL TANK для Yamaha RAIDER SCL - 2012 года выпуска`
-
№АртикулНазвание
-
15C7-Y2410-00-09 FUEL TANK COMP. (BLACK METALLIC X)FUEL TANK COMP. (BLACK METALLIC X)
-
15C7-Y2410-00-X1 FUEL TANK COMP. (FOR PBMJ)FUEL TANK COMP. (FOR PBMJ)
-
24NK-24602-12-00 CAP ASSYCAP ASSY
-
35C7-2413X-00-00 PLATEPLATE
-
45PX-24176-01-00 BOLT 1BOLT 1
-
590176-06055-00 NUT, CROWNNUT, CROWN
-
61D7-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
71D7-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
84TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
990387-06177-00 COLLARCOLLAR
-
1092012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
115C7-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
1290480-15005-00 GROMMETGROMMET
-
1390387-06068-00 COLLARCOLLAR
-
1490119-06062-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590110-08052-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
165C7-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
1792012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
185C7-24161-00-00 EMBLEM 1EMBLEM 1
-
195C7-24162-00-00 EMBLEM 2EMBLEM 2
-
201D7-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
215C7-2476U-00-00 PROTECTOR,1PROTECTOR,1
-
225C7-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
231D7-24217-00-00 COVERCOVER
-
244C8-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
