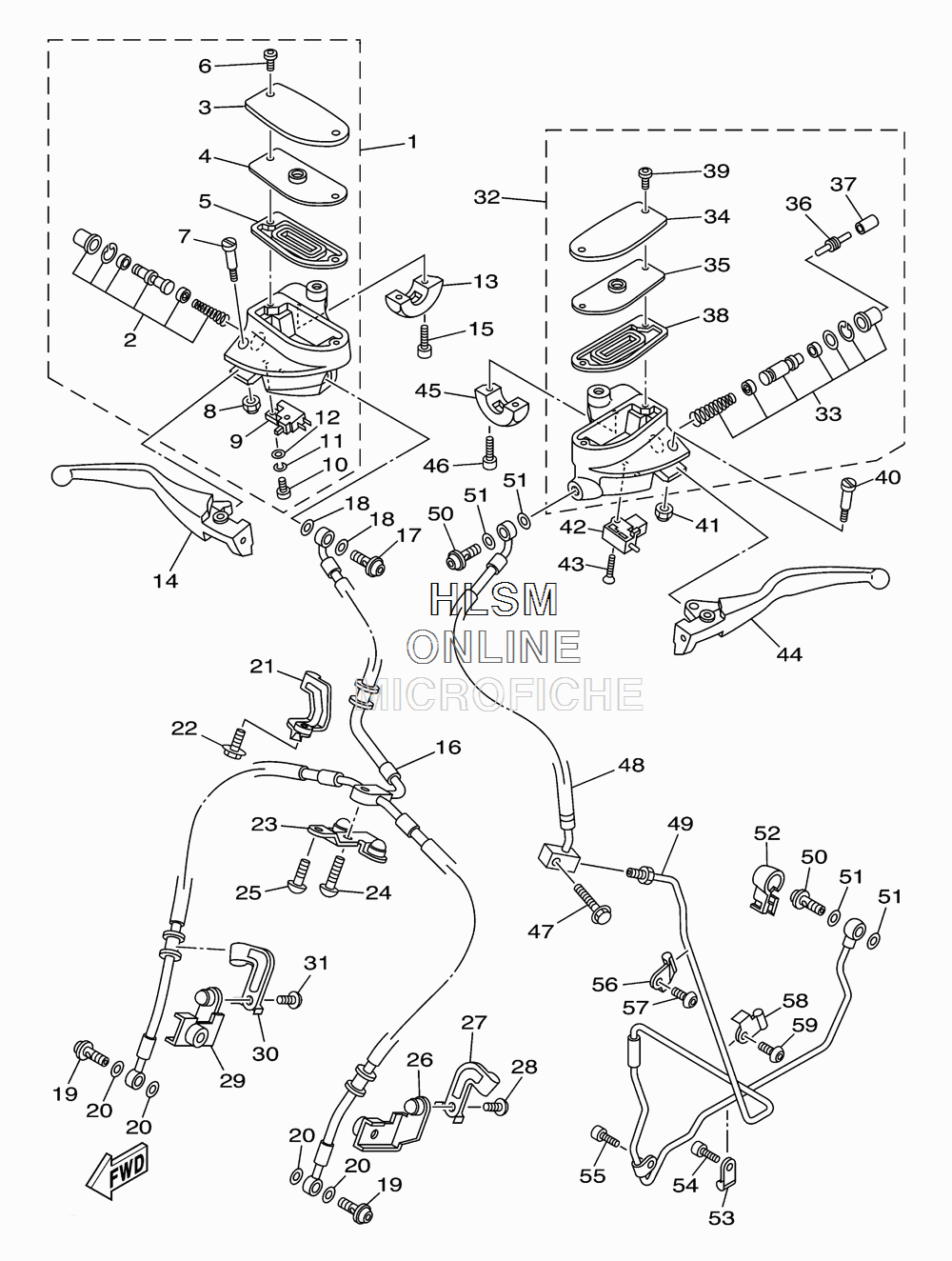

BRAKE - FRONT MASTER CYLINDER для Yamaha RAIDER SCL - 2012 года выпуска`
-
№АртикулНазвание
-
11D7-W2587-10-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25PX-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
31D7-25852-10-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
41D7-2585B-00-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
51D7-25854-01-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
61D7-2589H-00-00 ...SCREW...SCREW
-
71D7-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
895604-06100-00 ...NUT, U...NUT, U
-
94HM-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
1098502-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1192907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1292907-04600-00 ...WASHER...WASHER
-
131D7-26467-10-00 HOLDERHOLDER
-
141D7-83922-10-00 LEVER 2LEVER 2
-
1591312-06025-00 BOLTBOLT
-
165C7-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1790401-10172-00 BOLT, UNIONBOLT, UNION
-
1890430-10005-00 GASKETGASKET
-
1990401-10172-00 BOLT, UNIONBOLT, UNION
-
2090430-10005-00 GASKETGASKET
-
215C7-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2290105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
235C7-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2492012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
