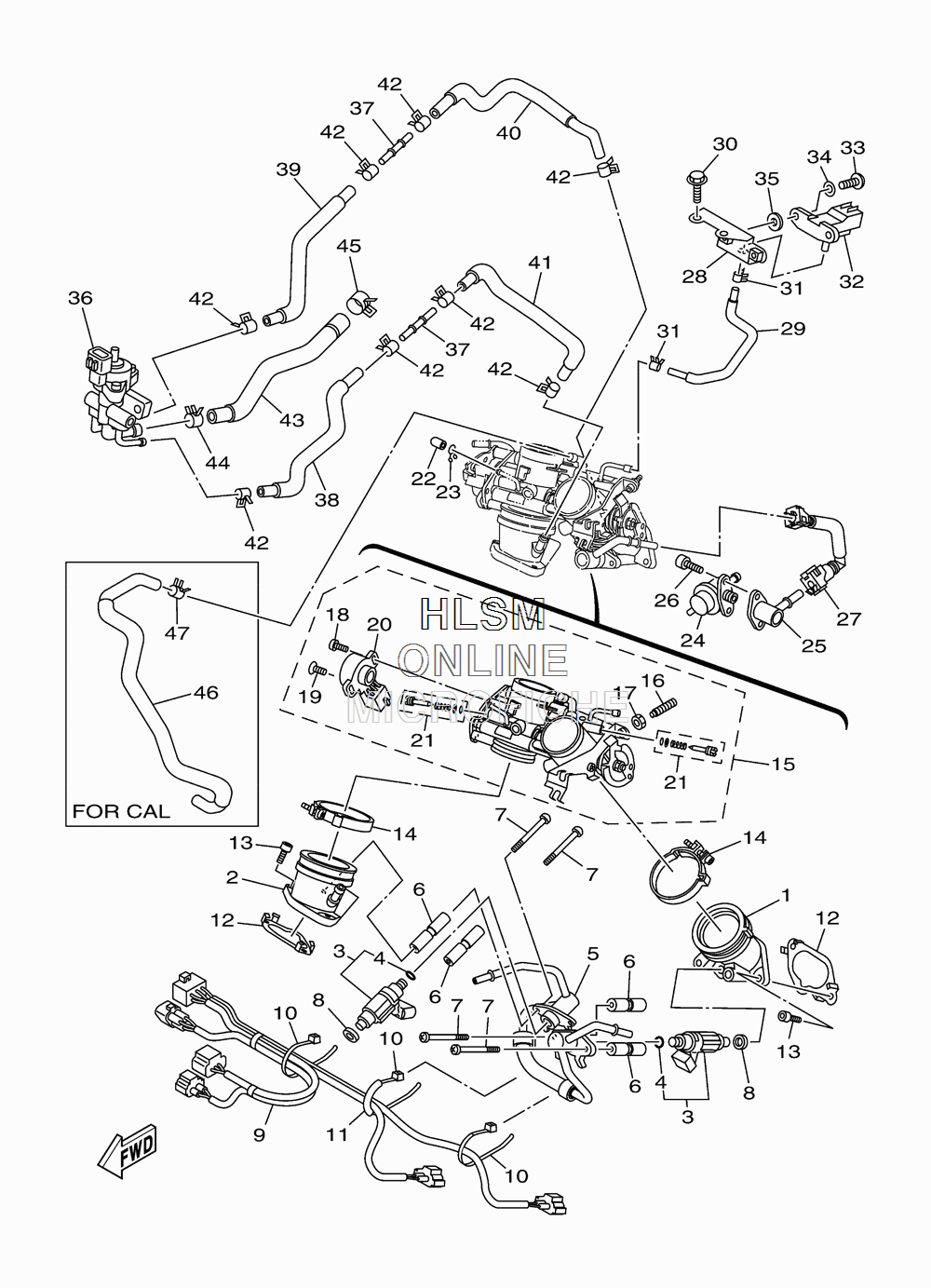

THROTTLE BODY ASSY. для Yamaha RAIDER S (VIOLET METALLIC) - 2012 года выпуска`
-
№АртикулНазвание
-
11D7-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
21D7-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
35YU-13761-00-00 INJECTORINJECTOR
-
45FL-14147-00-00 ...O-RING...O-RING
-
51D7-13930-00-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
61D7-13716-00-00 COLLARCOLLAR
-
798507-06050-00 SCREW, PAN HEADSCREW, PAN HEAD
-
88FP-13556-00-00 RUBBER, INJECTORRUBBER, INJECTOR
-
91D7-82509-40-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1090464-55002-00 CLAMPCLAMP
-
1190445-08039-00 HOSEHOSE
-
121D7-14467-00-00 SEALSEAL
-
1391314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490450-62004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
155C7-13750-10-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
155C7-13750-00-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
163FV-14567-00-00 ...SCREW...SCREW
-
173JD-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
184KM-24453-00-00 ...SCREW...SCREW
-
1998707-04010-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
208GL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
215JW-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
22895-14169-00-00 CAPCAP
-
238A7-14139-00-00 CLIP, PIPECLIP, PIPE
-
245C7-13906-00-00 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
255PX-13595-00-00 JOINTJOINT
-
2691312-05025-00 BOLTBOLT
-
275C7-13972-00-00 PIPE, FUEL 2PIPE, FUEL 2
-
281D7-14493-00-00 STAY 1STAY 1
-
291D7-13895-00-00 HOSE, AIRHOSE, AIR
-
3095822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3190467-07093-00 CLIPCLIP
-
321C7-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
3397002-05016-00 BOLTBOLT
-
3492902-05600-00 WASHER, PLATEWASHER, PLATE
-
3590201-060H9-00 WASHER, PLATEWASHER, PLATE
-
365C7-85880-00-00 LINEAR, CONTROL VALVELINEAR, CONTROL VALVE
-
375PX-14466-00-00 PIPEPIPE
-
385C7-13545-00-00 HOSE 1HOSE 1
-
395C7-13546-00-00 HOSE 2HOSE 2
-
405C7-13547-00-00 HOSE 3HOSE 3
-
415C7-13548-00-00 HOSE, AIR 4HOSE, AIR 4
-
4290467-10135-00 CLIPCLIP
-
435C7-13897-00-00 PIPE, AIRPIPE, AIR
-
4490467-15001-00 CLIPCLIP
-
4590467-17089-00 CLIPCLIP
-
465C7-14349-00-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
4790467-09037-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
