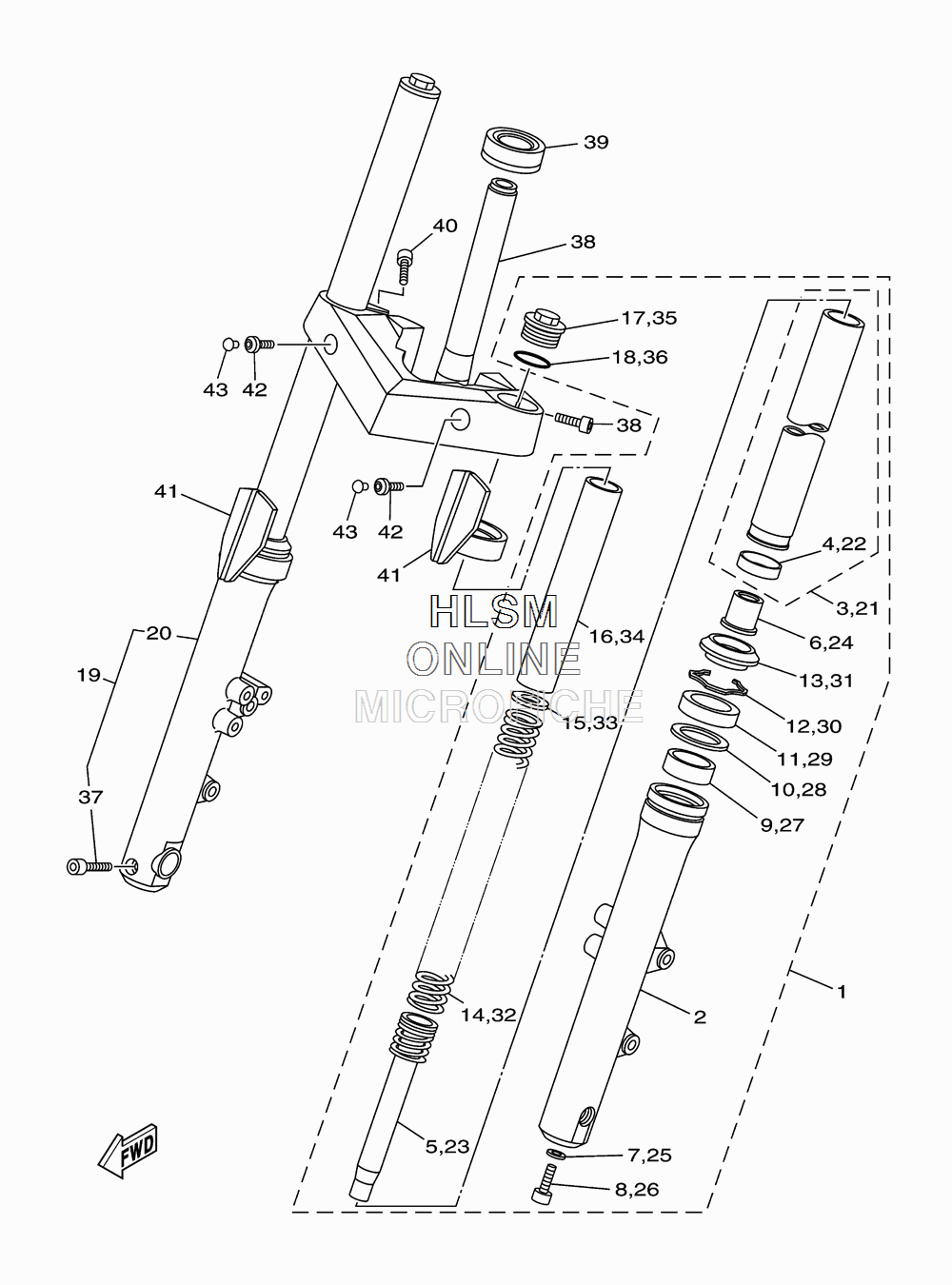

SUSPENSION - FRONT FORK для Yamaha RAIDER S (VIOLET METALLIC) - 2012 года выпуска`
-
№АртикулНазвание
-
15C7-23102-00-00 FRONT FORK ASSY (LEFT)FRONT FORK ASSY (LEFT)
-
25C7-23126-00-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
35C7-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
45C7-23171-00-00 ......METAL, SLIDE 1......METAL, SLIDE 1
-
45C7-23171-00-00 ......METAL, SLIDE 1......METAL, SLIDE 1
-
55C7-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
61D7-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
72K8-23158-L0-00 ...GASKET...GASKET
-
83R4-23181-L0-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
95TJ-23125-50-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
104SS-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
111D7-23145-00-00 ...OIL SEAL...OIL SEAL
-
124SS-23153-L0-00 ...RING, SNAP...RING, SNAP
-
131D7-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
145C7-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
151D7-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
161D7-23118-00-00 ...SPACER...SPACER
-
171D7-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
181D7-23188-00-00 ...O-RING...O-RING
-
195C7-23103-00-00 FRONT FORK ASSY (RIGHT)FRONT FORK ASSY (RIGHT)
-
205C7-23136-00-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
215C7-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
225C7-23171-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
235C7-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
241D7-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
252K8-23158-L0-00 ...GASKET...GASKET
-
263R4-23181-L0-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
275TJ-23125-50-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
284SS-23146-L0-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
291D7-23145-00-00 ...OIL SEAL...OIL SEAL
-
304SS-23153-L0-00 ...RING, SNAP...RING, SNAP
-
311D7-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
325C7-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
331D7-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
341D7-23118-00-00 ...SPACER...SPACER
-
351D7-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
361D7-23188-00-00 ...O-RING...O-RING
-
3791314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
385C7-23340-10-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3993332-00096-00 BEARINGBEARING
-
4091314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
415C7-2331G-00-00 COVERCOVER
-
4290111-08010-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4390338-08163-00 PLUGPLUG
