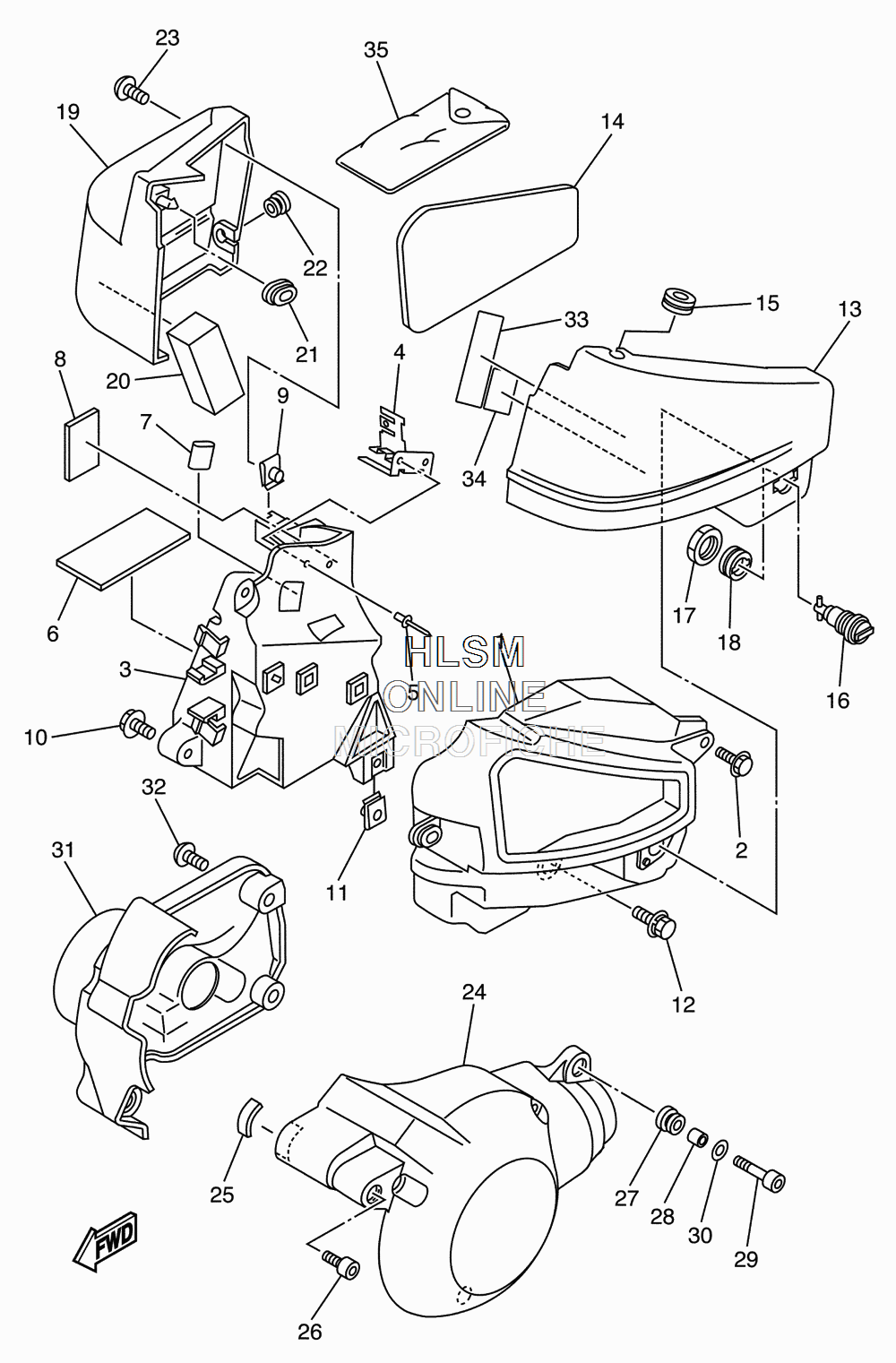

SIDE COVER для Yamaha V STAR 650 CUSTOM [ XVS65AB/C] (3B6K/3B6L) - 2011 года выпуска`
-
№АртикулНазвание
-
14TR-2160A-00-00 BOX COMP.BOX COMP.
-
290119-06118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
34TR-2177G-10-00 BOX, BATTERYBOX, BATTERY
-
45SC-2172K-00-00 BRACKET 1BRACKET 1
-
590267-32018-00 RIVET, BLINDRIVET, BLIND
-
65Y1-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
790446-14359-00 HOSEHOSE
-
822F-2139X-00-00 DAMPERDAMPER
-
990183-06053-00 NUT, SPRINGNUT, SPRING
-
1090119-06118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190183-06023-00 NUT, SPRINGNUT, SPRING
-
1290119-06097-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
135BN-21711-11-PE COVER, SIDE 1 (FOR SMX)COVER, SIDE 1 (FOR SMX)
-
144TR-21717-00-00 DAMPERDAMPER
-
1590480-12320-00 GROMMETGROMMET
-
1655K-21708-00-00 LOCK ASSY 2LOCK ASSY 2
-
1790170-22187-00 NUTNUT
-
1890480-24186-00 GROMMETGROMMET
-
195BN-21721-00-PE COVER, SIDE 2 (FOR SMX)COVER, SIDE 2 (FOR SMX)
-
2084M-77555-00-00 PROTECTOR 5PROTECTOR 5
-
2190480-01559-00 GROMMETGROMMET
-
2290480-12320-00 GROMMETGROMMET
-
2390149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
244TR-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
2522F-21746-01-00 DAMPERDAMPER
-
2691314-06012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2790480-10289-00 GROMMETGROMMET
-
2890387-064M9-00 COLLARCOLLAR
-
2991314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3090201-06062-00 WASHER, PLATEWASHER, PLATE
-
314VR-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
3290110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
333JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
344BR-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
354TR-28100-00-00 TOOL KITTOOL KIT
