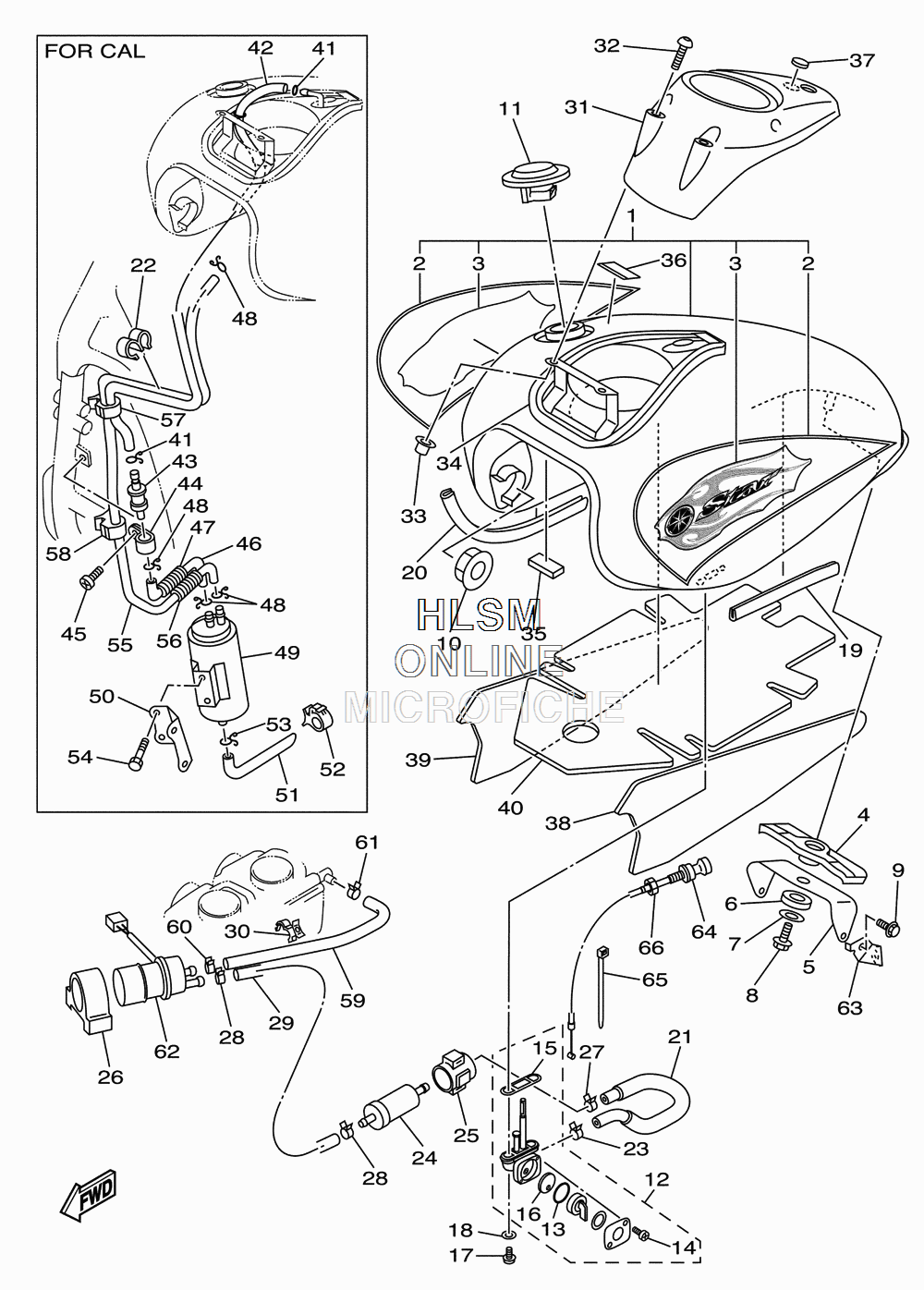

FUEL TANK для Yamaha V STAR 650 CUSTOM [ XVS65AB/C] (3B6K/3B6L) - 2011 года выпуска
-
№АртикулНазвание
-
15SC-Y2410-U0-02 FUEL TANK COMP. (FOR SMX) (EXCEPT CALIF.)FUEL TANK COMP. (FOR SMX) (EXCEPT CALIF.)
-
15SC-Y2410-T0-04 FUEL TANK COMP. (FOR SMX) (CALIF. ONLY)FUEL TANK COMP. (FOR SMX) (CALIF. ONLY)
-
25S1-24240-20-00 ...GRAPHIC SET...GRAPHIC SET
-
35S1-24250-00-00 ...GRAPHIC SET 2...GRAPHIC SET 2
-
44TR-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
54TR-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
64TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
790209-06011-00 WASHERWASHER
-
892017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
995817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
104H7-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
115BN-24602-02-00 CAP ASSY (EXCEPT CALIF.)CAP ASSY (EXCEPT CALIF.)
-
114NK-24602-12-00 CAP ASSY (CALIF. ONLY)CAP ASSY (CALIF. ONLY)
-
1221V-24500-11-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
133AJ-24534-01-00 ...SEAL, COCK...SEAL, COCK
-
1498507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
154X8-24512-00-00 ...O-RING...O-RING
-
163AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
1790149-06011-00 SCREWSCREW
-
1890202-05193-00 WASHER, PLATEWASHER, PLATE
-
191FK-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
204BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
214TR-24313-10-00 PIPE 3PIPE 3
-
2290464-09M31-00 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
2390467-10038-00 CLIP, SCISSORCLIP, SCISSOR
-
241FK-24560-10-00 FILTER ASSYFILTER ASSY
-
251FK-24566-00-00 BRACKET, FILTERBRACKET, FILTER
-
264EB-24398-00-00 BAND 1BAND 1
-
2790467-11032-00 CLIP, SCISSORCLIP, SCISSOR
-
2890467-12053-00 CLIP, SCISSORCLIP, SCISSOR
-
294TR-24311-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
3090464-15192-00 CLAMPCLAMP
-
314TR-2171A-00-00 COVER, TOPCOVER, TOP
-
3290149-05299-00 SCREWSCREW
-
3390179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
344TR-2414G-00-00 SEALSEAL
-
353XV-21717-00-00 DAMPERDAMPER
-
365GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
374TR-2413B-00-00 EMBLEMEMBLEM
-
385SC-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
395SC-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
405SC-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
4190467-10041-00 CLIP, SCISSOR (CALIF. ONLY)CLIP, SCISSOR (CALIF. ONLY)
-
425BN-24312-10-00 PIPE 2 (CALIF. ONLY)PIPE 2 (CALIF. ONLY)
-
435PX-24180-00-00 ROLL OVER VALVE ASSY (CALIF. ONLY)ROLL OVER VALVE ASSY (CALIF. ONLY)
-
4490461-15139-00 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
4598907-05010-00 SCREW, BIND (CALIF. ONLY)SCREW, BIND (CALIF. ONLY)
-
465BN-24314-10-00 PIPE 4 (CALIF. ONLY)PIPE 4 (CALIF. ONLY)
-
475BN-24327-00-00 PROTECTOR, PIPE (CALIF. ONLY)PROTECTOR, PIPE (CALIF. ONLY)
-
4890467-10041-00 CLIP, SCISSOR (CALIF. ONLY)CLIP, SCISSOR (CALIF. ONLY)
-
492JU-24170-00-00 CANISTER ASSY (CALIF. ONLY)CANISTER ASSY (CALIF. ONLY)
-
505BN-2419F-00-00 BRACKET, CANISTOR (CALIF. ONLY)BRACKET, CANISTOR (CALIF. ONLY)
-
515BN-24315-10-00 PIPE 5 (CALIF. ONLY)PIPE 5 (CALIF. ONLY)
-
5290464-15192-00 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
5390467-10041-00 CLIP, SCISSOR (CALIF. ONLY)CLIP, SCISSOR (CALIF. ONLY)
-
5495807-06010-00 BOLT, FLANGE (CALIF. ONLY)BOLT, FLANGE (CALIF. ONLY)
-
555BN-24313-10-00 PIPE 3 (CALIF. ONLY)PIPE 3 (CALIF. ONLY)
-
565BN-24327-00-00 PROTECTOR, PIPE (CALIF. ONLY)PROTECTOR, PIPE (CALIF. ONLY)
-
5790464-20191-00 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
5890464-15192-00 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
594TR-14294-10-00 HOSEHOSE
-
6090467-12053-00 CLIP, SCISSORCLIP, SCISSOR
-
6190467-12124-00 CLIPCLIP
-
625KS-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
634TR-2637G-00-00 HOLDER, WIREHOLDER, WIRE
-
644TR-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
651UA-82591-00-00 BANDBAND
-
661VJ-26333-00-00 NUTNUT
