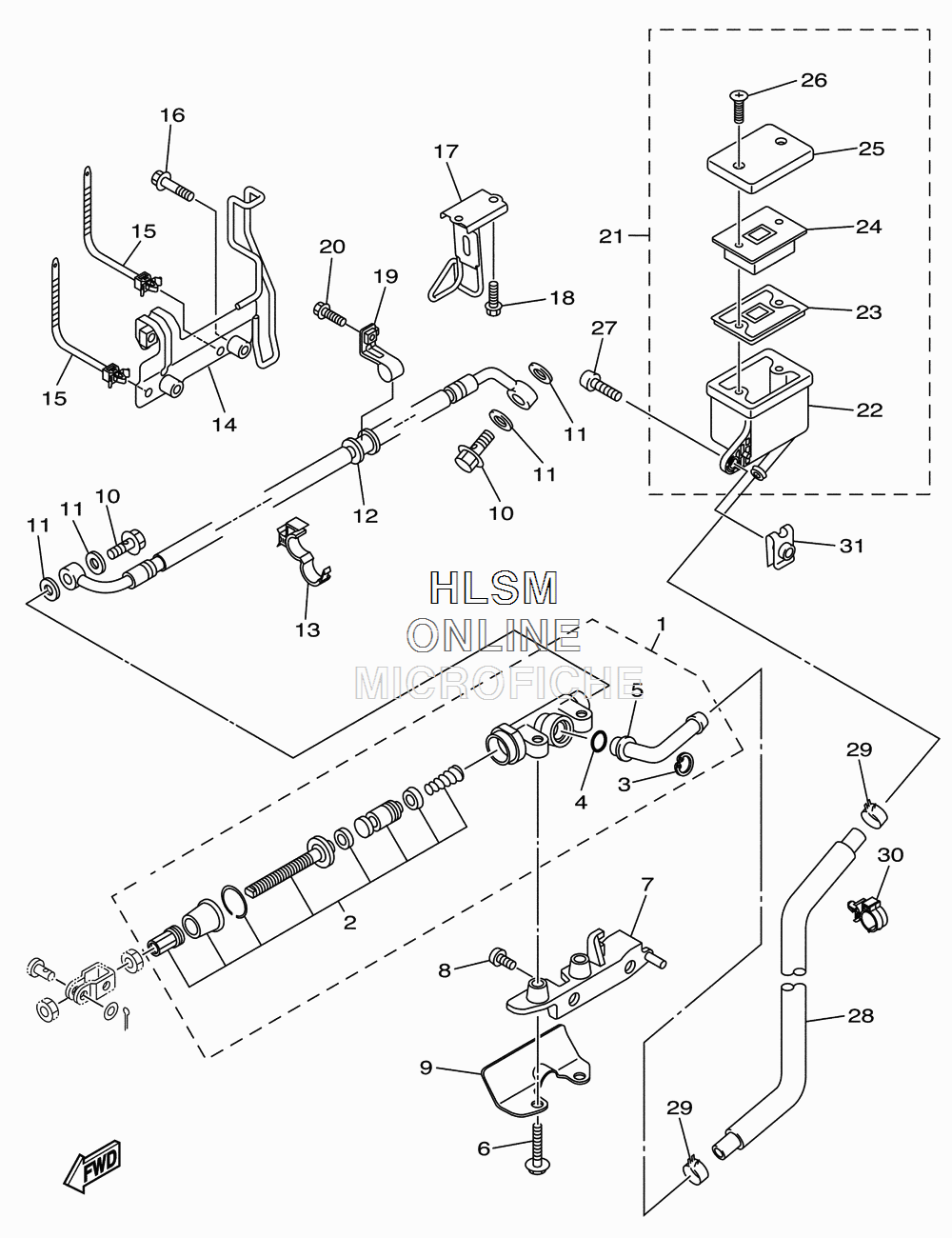

BRAKE - REAR MASTER CYLINDER для Yamaha V STAR 1300 - 2011 года выпуска`
-
№АртикулНазвание
-
13D8-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
25EL-W0042-50-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
32VN-25866-00-00 CIRCLIPCIRCLIP
-
493210-15620-00 O-RINGO-RING
-
52VN-2582A-50-00 JOINTJOINT
-
695024-08035-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
75EL-25867-01-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
892014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
95EL-27491-00-00 PROTECTORPROTECTOR
-
1090401-10020-00 BOLT, UNIONBOLT, UNION
-
1190430-10005-00 GASKETGASKET
-
123D8-2581J-10-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
1390464-15192-00 CLAMPCLAMP
-
143D8-21374-10-00 HOLDER, FUEL PIPEHOLDER, FUEL PIPE
-
1590464-12036-00 CLAMPCLAMP
-
1695022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
173D8-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
1895022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
193D8-2588F-11-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
2095022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
215YU-25804-00-00 RESERVE TANK ASSYRESERVE TANK ASSY
-
225YU-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
2355U-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
243GM-2585B-20-00 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
255YU-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
2698706-04040-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
2790111-06008-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
283D8-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2990467-12191-00 CLIP, SCISSORCLIP, SCISSOR
-
3090464-16012-00 CLAMPCLAMP
-
3190183-06053-00 NUT, SPRINGNUT, SPRING
