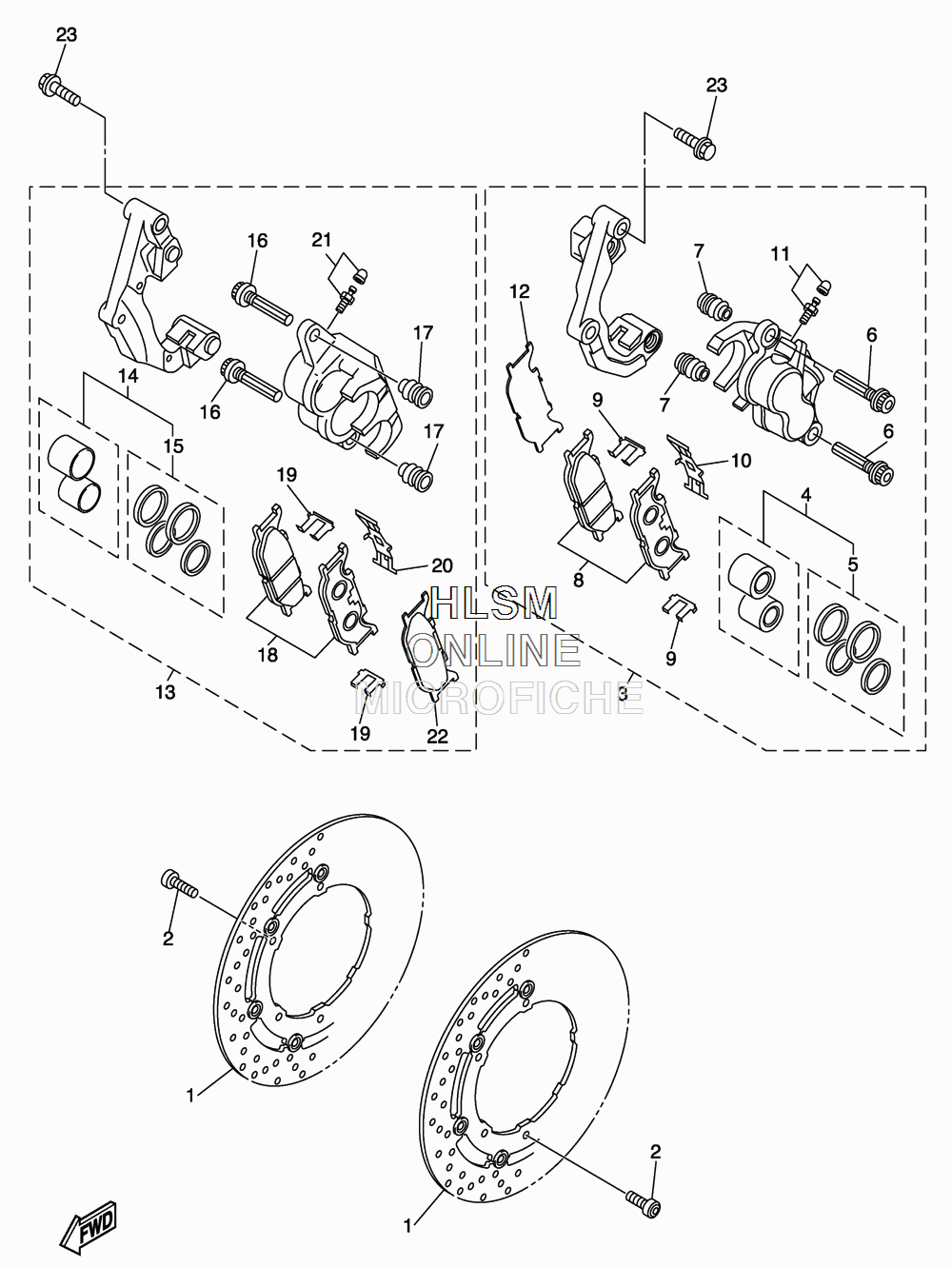

BRAKE - FRONT CALIPER для Yamaha V STAR 1300 - 2011 года выпуска`
-
№АртикулНазвание
-
13D8-2581T-10-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-083G4-00 BOLTBOLT
-
33D8-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
45KS-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
54FU-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
81B7-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
94BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
103YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1151L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
125VU-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
133D8-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
145KS-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
154FU-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
165JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
174TT-25937-00-00 ...BOOT 2...BOOT 2
-
181B7-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
194BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
203YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
2151L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
225VU-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
2390105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
