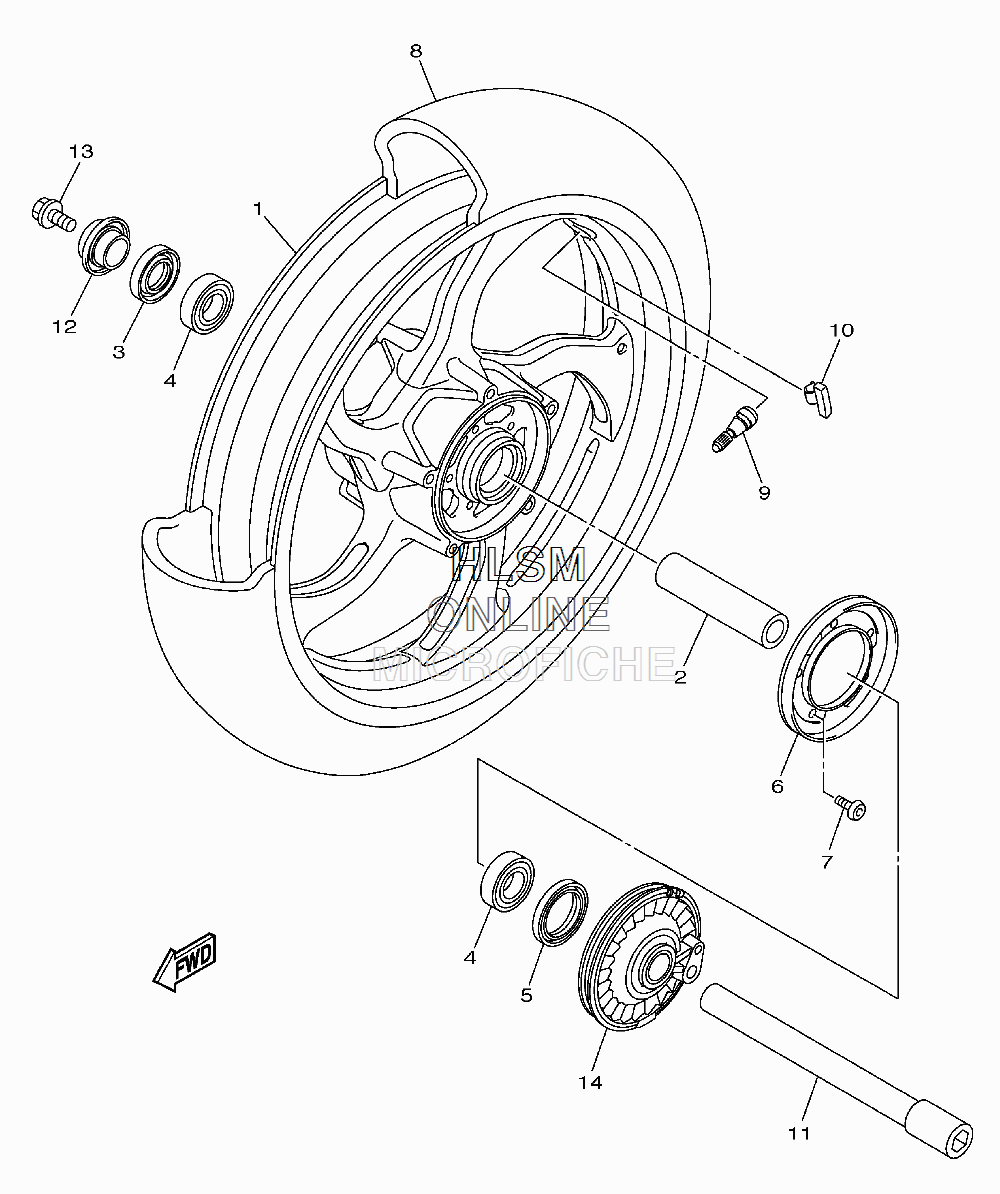

WHEEL - FRONT для Yamaha V-MAX - 2011 года выпуска`
-
№АртикулНазвание
-
12S3-25168-00-98 CAST WHEEL, FRONT (LGB)CAST WHEEL, FRONT (LGB)
-
22S3-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
393106-28043-00 OIL SEALOIL SEAL
-
493306-00420-00 BEARINGBEARING
-
593106-40027-00 OIL SEALOIL SEAL
-
62S3-2517G-00-00 ROTOR, SENSORROTOR, SENSOR
-
790149-05009-00 SCREWSCREW
-
894112-18033-00 TIRE(120/70 R18 M/C 59V) BSTIRE(120/70 R18 M/C 59V) BS
-
993900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
105MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
105MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
105MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
112S3-25181-00-00 AXLE, WHEELAXLE, WHEEL
-
122S3-2510C-00-00 COLLAR ASSY.COLLAR ASSY.
-
1390105-14002-00 BOLT, FLANGEBOLT, FLANGE
-
142S3-2517A-00-00 HOUSING, SENSOR FRONTHOUSING, SENSOR FRONT
