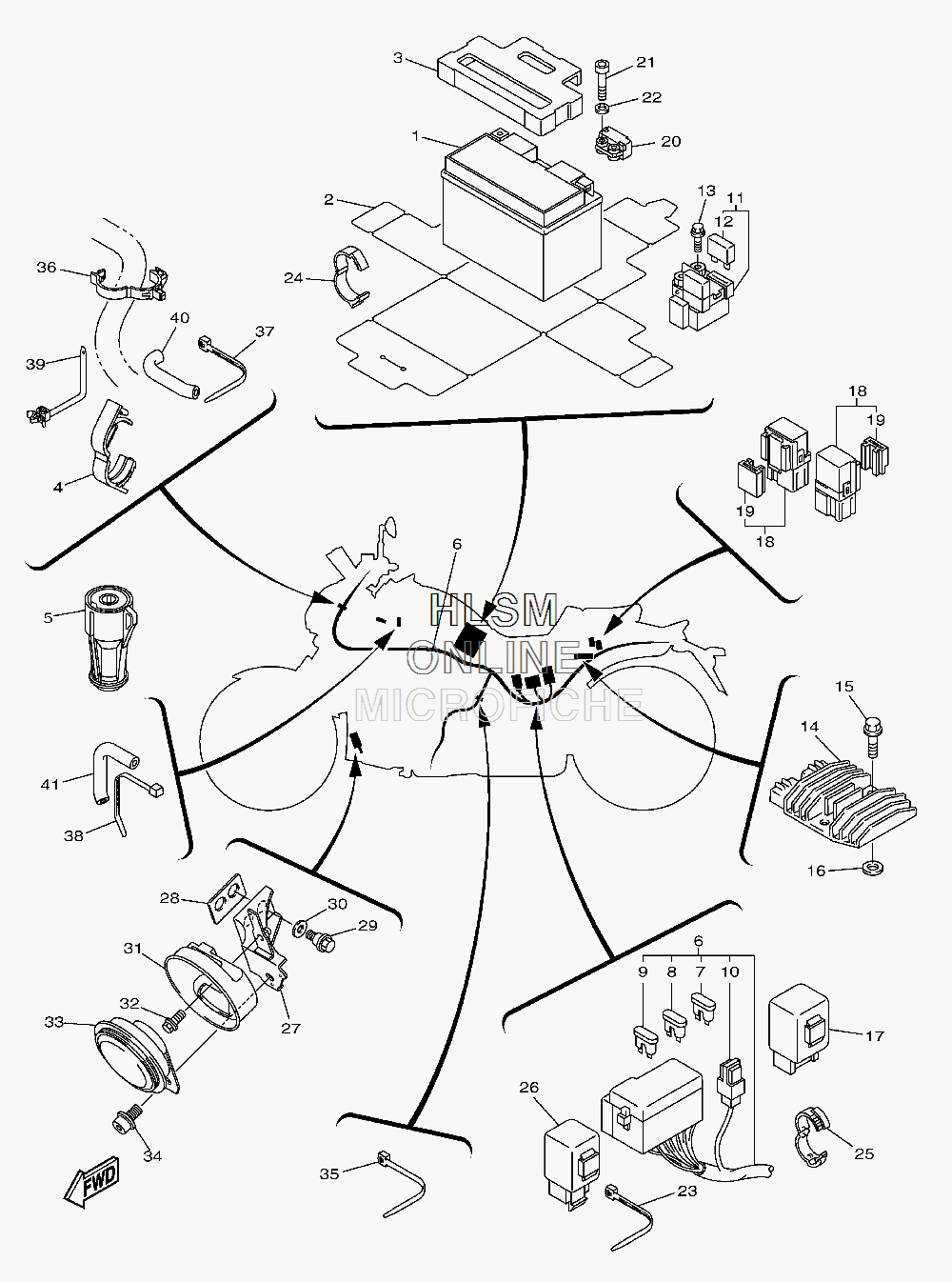

ELECTRICAL 2 для Yamaha V-MAX - 2011 года выпуска`
-
№АртикулНазвание
-
12D1-82100-00-00 BATTERY ASSY (GS YUASA YTZ14S)BATTERY ASSY (GS YUASA YTZ14S)
-
22S3-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
32S3-82121-00-00 PAD, BATTERYPAD, BATTERY
-
490464-18004-00 CLAMPCLAMP
-
52S3-8255H-01-00 HOLDER, SOCKETHOLDER, SOCKET
-
62S3-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
75JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
85JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
95JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
105JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
114SV-81940-12-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
121AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
1395027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
141D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1590105-06597-00 BOLT, FLANGEBOLT, FLANGE
-
1690202-05187-00 WASHER, PLATEWASHER, PLATE
-
175VK-81950-30-00 RELAY ASSYRELAY ASSY
-
185EA-81950-20-00 RELAY ASSYRELAY ASSY
-
195EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
205PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
2190110-04003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2290201-042E0-00 WASHER, PLATEWASHER, PLATE
-
2390464-16014-00 CLAMPCLAMP
-
2490464-26001-00 CLAMPCLAMP
-
2590464-16001-00 CLAMPCLAMP
-
265C4-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
272S3-83378-00-00 STAY, HORNSTAY, HORN
-
282S3-8338V-00-00 DAMPERDAMPER
-
2990109-06183-00 BOLTBOLT
-
3090206-10001-00 WASHER, WAVEWASHER, WAVE
-
312S3-83376-00-00 COVER, HORNCOVER, HORN
-
3290119-05016-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
332S3-83371-00-00 HORNHORN
-
3490110-08100-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3590464-16061-00 CLAMPCLAMP
-
3690464-30001-00 CLAMPCLAMP
-
3712R-82591-00-00 BANDBAND
-
3890465-12356-00 CLAMPCLAMP
-
3990464-12089-00 CLAMPCLAMP
-
4090445-07671-00 HOSE (L45)HOSE (L45)
-
4190446-06002-00 HOSEHOSE
