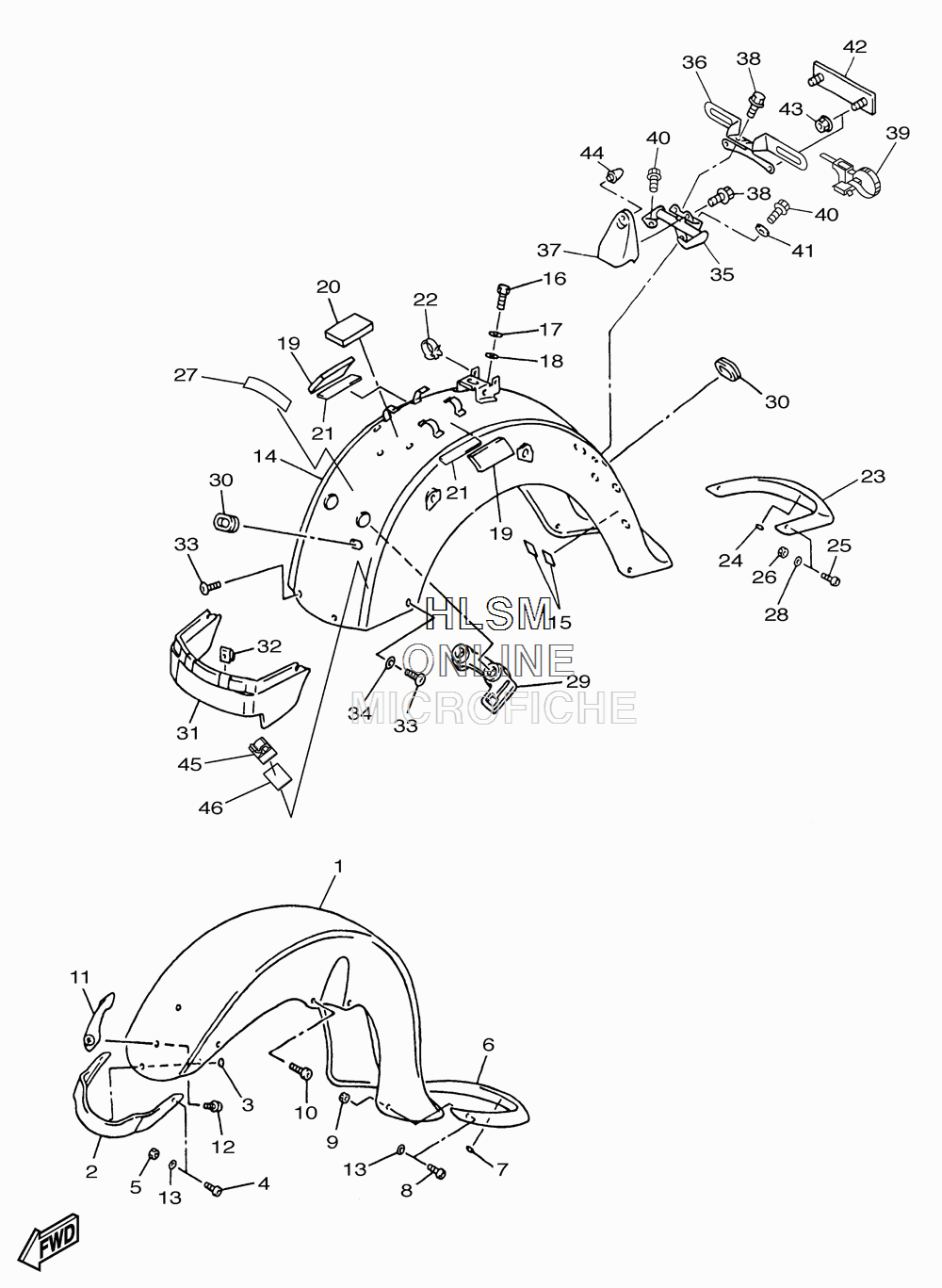

FENDER - FRONT / REAR для Yamaha ROYAL STAR VENTURE S - 2010 года выпуска`
-
№АртикулНазвание
-
14NL-YK215-10-P1 FRONT FENDER COMP. (SMX)FRONT FENDER COMP. (SMX)
-
24NL-21561-11-00 FLAP 2FLAP 2
-
390183-06008-00 NUT, SPRINGNUT, SPRING
-
492014-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
595304-05600-00 NUTNUT
-
64NL-21521-10-00 FLAP, FRONT FENDERFLAP, FRONT FENDER
-
790183-06008-00 NUT, SPRINGNUT, SPRING
-
892014-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
995304-05600-00 NUTNUT
-
1091314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
114NL-21577-10-00 MASCOTMASCOT
-
1290159-06107-00 SCREW, PANSCREW, PAN
-
134NL-21575-10-00 SEAL 1SEAL 1
-
144XY-21610-10-P1 REAR FENDER COMP. (SMX)REAR FENDER COMP. (SMX)
-
153MA-27491-00-00 PROTECTORPROTECTOR
-
1697007-08016-00 BOLTBOLT
-
1792907-08200-00 WASHERWASHER
-
1890202-09227-00 WASHER, PLATEWASHER, PLATE
-
194XY-21639-00-00 DAMPER 2DAMPER 2
-
204XY-21649-00-00 DAMPERDAMPER
-
214XY-21638-00-00 DAMPER 1DAMPER 1
-
2290464-18246-00 CLAMPCLAMP
-
234NL-21621-10-00 FLAPFLAP
-
2490183-06008-00 NUT, SPRINGNUT, SPRING
-
2592014-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2695304-05600-00 NUTNUT
-
271D6-2176P-30-00 PLATE, EPA (CALIFORNIA)PLATE, EPA (CALIFORNIA)
-
271D6-2179W-40-00 PLATE, EPA (NON CALIFORNIA)PLATE, EPA (NON CALIFORNIA)
-
284NL-21575-10-00 SEAL 1SEAL 1
-
294NK-21649-00-00 DAMPERDAMPER
-
3090480-15061-00 GROMMETGROMMET
-
314NK-21621-00-P1 FLAP (SMX)FLAP (SMX)
-
3290183-06053-00 NUT, SPRINGNUT, SPRING
-
3390110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3490202-06170-00 WASHER, PLATEWASHER, PLATE
-
354XY-2317W-00-00 STAY, 9STAY, 9
-
365BN-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
371D6-84703-00-00 BRACKETBRACKET
-
3895027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3990464-25002-00 CLAMPCLAMP
-
4095024-06012-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
4190201-06043-00 WASHER, PLATEWASHER, PLATE
-
421FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4395707-05500-00 NUT, FLANGENUT, FLANGE
-
4442U-21639-00-00 DAMPER 2DAMPER 2
-
4590464-07002-00 CLAMPCLAMP
-
464XY-21669-00-00 SEALSEAL
