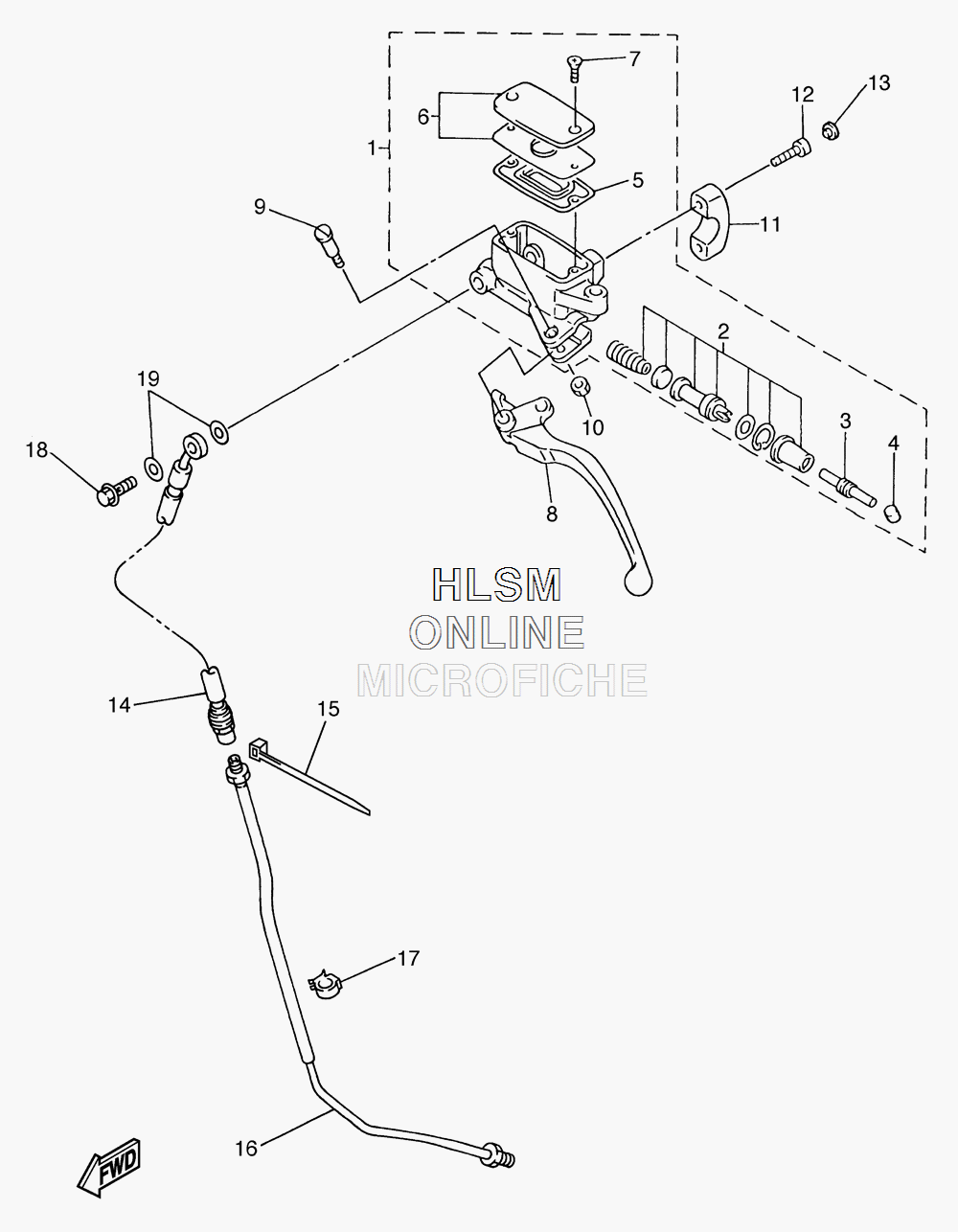

CLUTCH - MASTER CYLINDER W/ MIRROR для Yamaha ROYAL STAR VENTURE S - 2010 года выпуска`
-
№АртикулНазвание
-
14NK-W2645-10-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
23GM-W0099-00-00 CYLINDER KIT, MASTER (CLUTCH)CYLINDER KIT, MASTER (CLUTCH)
-
33GM-26464-00-00 ROD, PUSHROD, PUSH
-
43GM-26455-00-00 BUSHBUSH
-
54NK-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
65VN-W2585-20-00 RESERVOIR CAP SETRESERVOIR CAP SET
-
74NK-2589H-00-00 SCREWSCREW
-
81D6-83912-00-00 LEVER 1LEVER 1
-
94NK-83945-00-00 BOLT, LEVERBOLT, LEVER
-
1095604-06100-00 NUT, UNUT, U
-
114NK-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1291314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390338-06162-00 PLUGPLUG
-
144XY-26472-00-00 HOSE, CLUTCH 1HOSE, CLUTCH 1
-
1590464-16061-00 BANDBAND
-
164XY-26471-00-00 PIPEPIPE
-
1790464-10190-00 CLAMPCLAMP
-
1890401-10020-00 BOLT, UNIONBOLT, UNION
-
1990430-10005-00 GASKETGASKET
