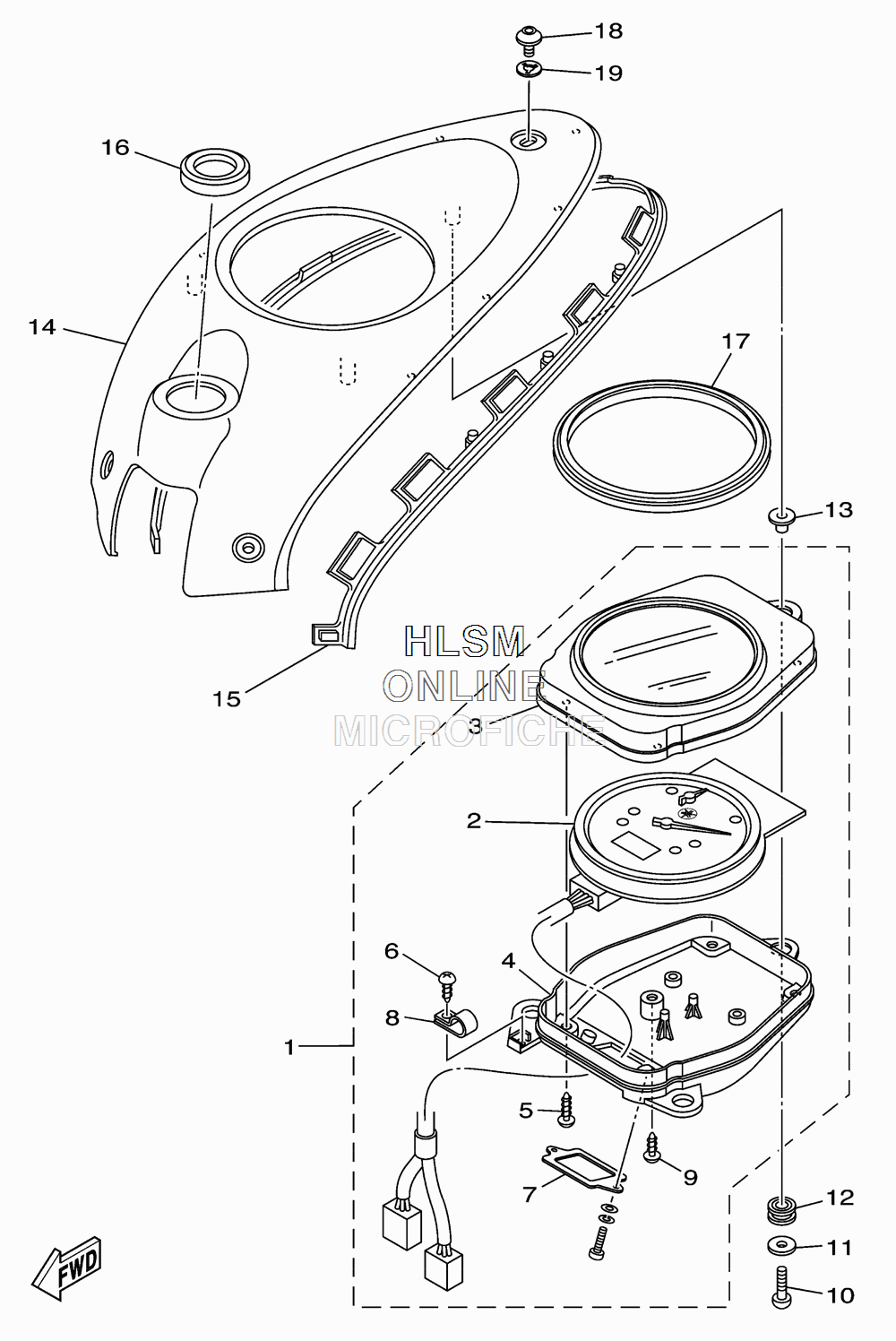

INSTRUMENT PANEL для Yamaha ROAD STAR S - 2010 года выпуска`
-
№АртикулНазвание
-
15VN-83500-20-00 METER ASSYMETER ASSY
-
25VN-83510-20-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
35VN-8353E-20-00 CASE, METER UPPERCASE, METER UPPER
-
44WM-8353F-02-00 CASE, METER LOWERCASE, METER LOWER
-
597707-40016-00 SCREW, TAPPINGSCREW, TAPPING
-
690164-04023-00 SCREW, TAPPINGSCREW, TAPPING
-
74WM-83519-00-00 BRACKET, METERBRACKET, METER
-
85EL-8357E-00-00 CLAMPCLAMP
-
997707-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
1090157-05112-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1190201-05036-00 WASHER, PLATEWASHER, PLATE
-
124WM-83513-00-00 DAMPERDAMPER
-
1390387-050T5-00 COLLARCOLLAR
-
145VN-83559-00-00 COVER, METERCOVER, METER
-
154WM-28345-01-00 MOLE 1MOLE 1
-
164WM-28346-00-00 MOLE 2MOLE 2
-
174WM-28347-00-00 MOLE 3MOLE 3
-
1890149-06264-00 SCREWSCREW
-
194U5-2176E-00-00 PLATEPLATE
