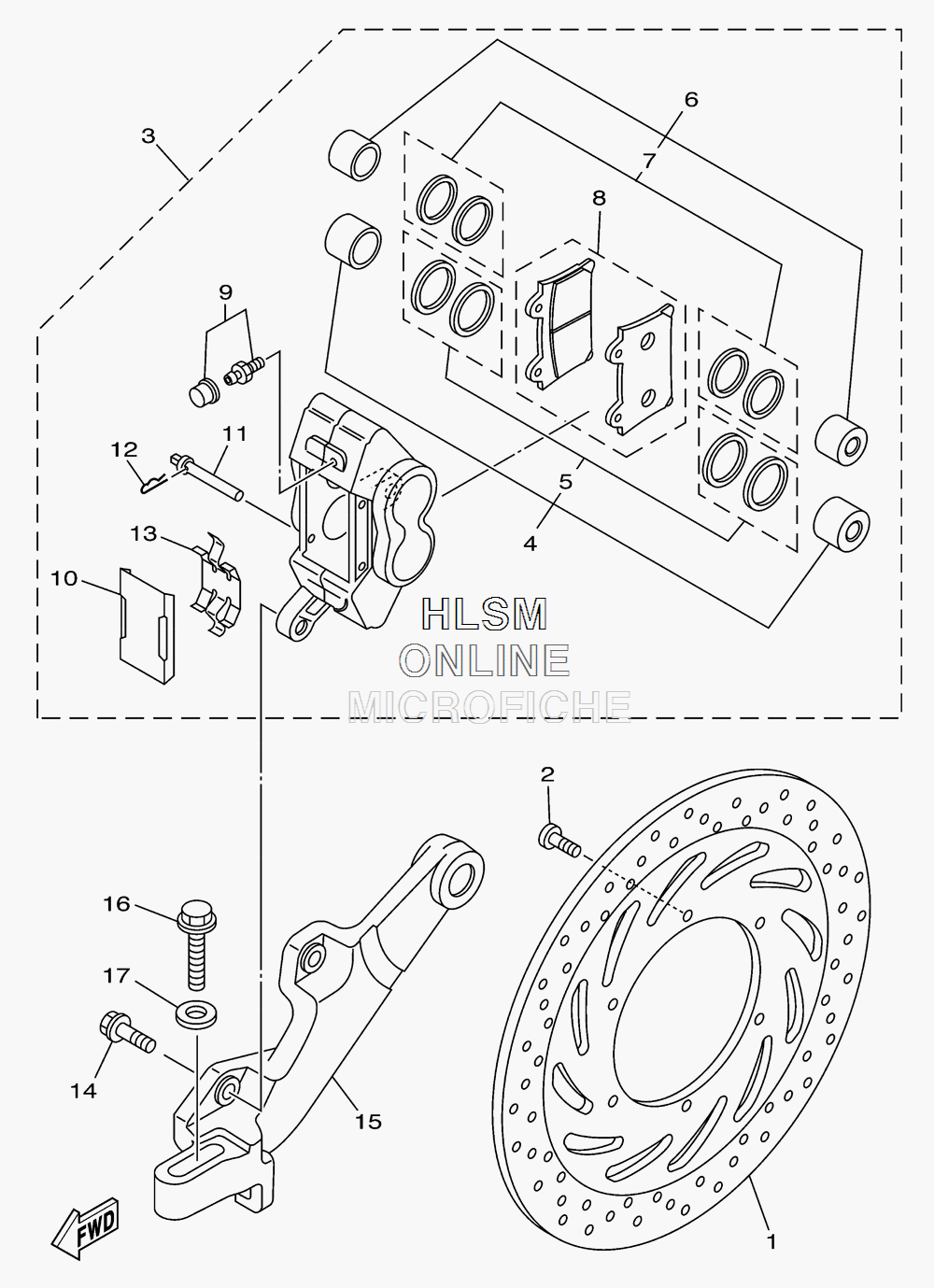

BRAKE - REAR CALIPER для Yamaha ROAD STAR S - 2010 года выпуска`
-
№АртикулНазвание
-
14WM-2582W-00-00 DISK, REAR BRAKE 2DISK, REAR BRAKE 2
-
290109-083G4-00 BOLTBOLT
-
34WM-2580W-01-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
41KT-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
51KT-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
64NK-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
74NK-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
84WM-W0046-01-00 BRAKE PAD KIT 2BRAKE PAD KIT 2
-
91J3-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
101NL-25836-00-00 COVER, DUSTCOVER, DUST
-
113HE-25924-00-00 PIN, PADPIN, PAD
-
123GM-25925-00-00 CLIPCLIP
-
131NL-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
1490105-10638-00 BOLT, FLANGEBOLT, FLANGE
-
154WM-25819-00-00 BRACKET, CALIPERBRACKET, CALIPER
-
1695827-10050-00 BOLT, FLANGEBOLT, FLANGE
-
1790201-10140-00 WASHER, PLATEWASHER, PLATE
