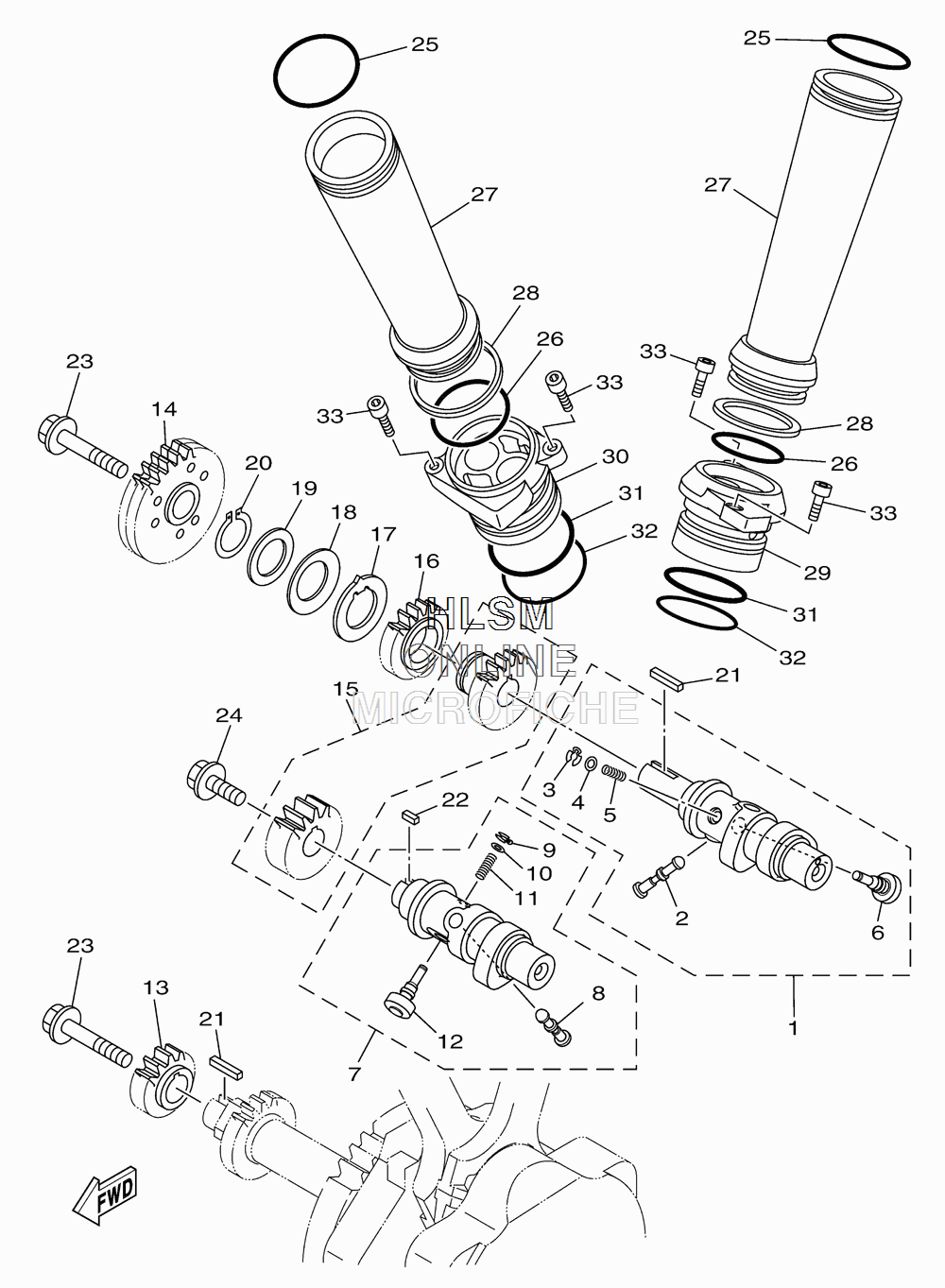

CAMSHAFT W/ CHAIN для Yamaha RAIDER S - 2010 года выпуска`
-
№АртикулНазвание
-
11D7-12170-03-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
21D7-12276-03-00 PIN, DECOMPR .PIN, DECOMPR .
-
393430-04055-00 CIRCLIPCIRCLIP
-
490201-05M04-00 WASHER, PLATEWASHER, PLATE
-
51D7-12287-00-00 SPRING, DECOMPRESSIONSPRING, DECOMPRESSION
-
61D7-12280-00-00 DECOMPRESSION ASSYDECOMPRESSION ASSY
-
71D7-12180-03-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
81D7-12276-03-00 PIN, DECOMPR .PIN, DECOMPR .
-
993430-04055-00 CIRCLIPCIRCLIP
-
1090201-05M04-00 WASHER, PLATEWASHER, PLATE
-
111D7-12287-00-00 SPRING, DECOMPRESSIONSPRING, DECOMPRESSION
-
121D7-12280-00-00 DECOMPRESSION ASSYDECOMPRESSION ASSY
-
131D7-11534-00-00 GEAR, BREAKER DRIVEGEAR, BREAKER DRIVE
-
141D7-Y115B-00-00 DRIVEN GEAR COMP.DRIVEN GEAR COMP.
-
151D7-W115A-00-00 DRIVE GEAR SETDRIVE GEAR SET
-
164WM-11544-01-00 GEAR 2GEAR 2
-
171D7-11557-00-00 WASHER 1WASHER 1
-
184WM-12216-01-00 SPRINGSPRING
-
1990201-283U6-00 WASHER, PLATEWASHER, PLATE
-
2099009-28400-00 CIRCLIPCIRCLIP
-
2190282-03002-00 KEY, STRAIGHTKEY, STRAIGHT
-
2290282-04001-00 KEY, STRAIGHTKEY, STRAIGHT
-
2390105-10159-00 BOLT, FLANGEBOLT, FLANGE
-
2490105-10445-00 BOLT, FLANGEBOLT, FLANGE
-
2593210-53638-00 O-RINGO-RING
-
2693210-472A9-00 O-RINGO-RING
-
271D7-12155-00-00 GUIDE, PUSH RODGUIDE, PUSH ROD
-
285PX-12215-00-00 CAP, TENSIONER CASECAP, TENSIONER CASE
-
291D7-12147-00-00 HOUSINGHOUSING
-
301D7-12148-00-00 HOUSINGHOUSING
-
3193210-54175-00 O-RINGO-RING
-
3293210-54452-00 O-RINGO-RING
-
3390110-06295-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
