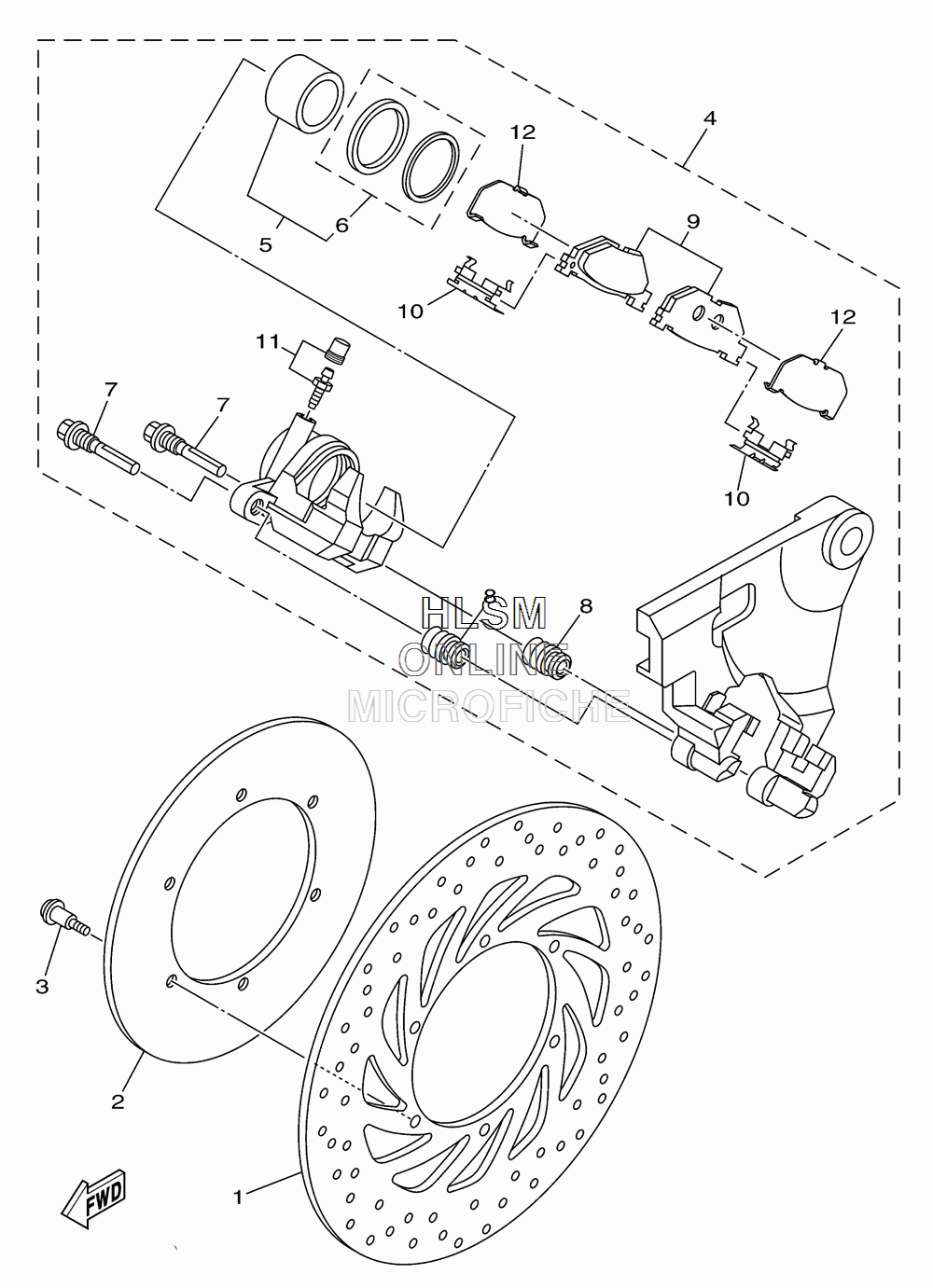

BRAKE - REAR CALIPER для Yamaha RAIDER S - 2010 года выпуска`
-
№АртикулНазвание
-
15C7-2582W-00-00 DISK, REAR BRAKE 2DISK, REAR BRAKE 2
-
25C7-2581A-00-00 PLATE, DISKPLATE, DISK
-
390109-06049-00 BOLTBOLT
-
45C7-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
51D7-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
65JW-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
74D9-25914-00-00 PIN, SLIDEPIN, SLIDE
-
84TT-25937-00-00 BOOT 2BOOT 2
-
91D7-W0046-00-00 BRAKE PAD KIT 2BRAKE PAD KIT 2
-
101D7-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
1115B-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
125GJ-25827-00-00 SHIM, CALIPERSHIM, CALIPER
