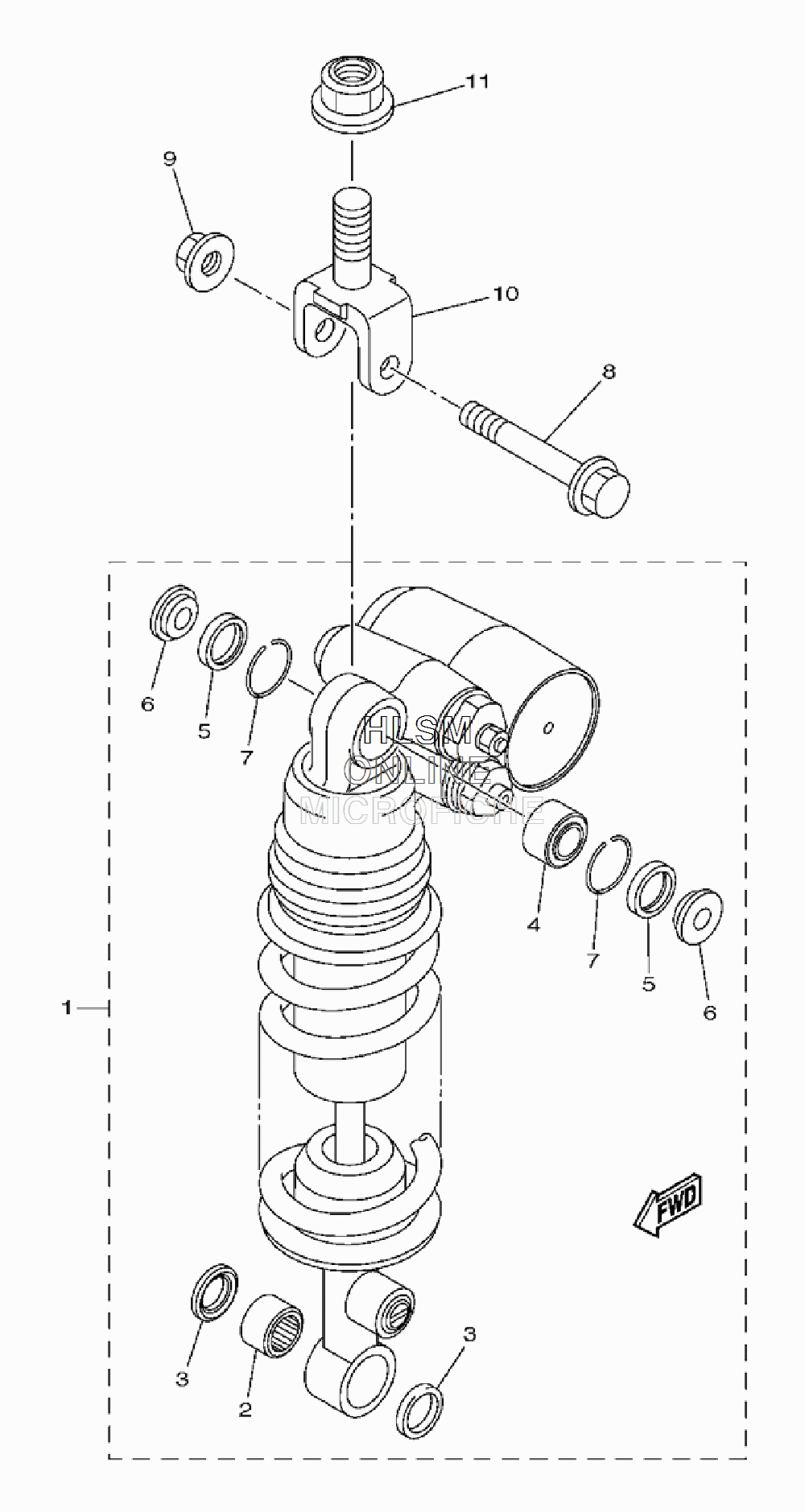

SUSPENSION - REAR SHOCK ABSORBER для Yamaha YZF-R1 - 2009 года выпуска`
-
№АртикулНазвание
-
114B-22210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
293315-31758-00 BEARINGBEARING
-
393109-17071-00 OIL SEALOIL SEAL
-
493399-999T4-00 BEARINGBEARING
-
593101-18061-00 OIL SEALOIL SEAL
-
614B-22253-00-00 COLLAR, DISTANCECOLLAR, DISTANCE
-
793440-30113-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
890105-10020-00 BOLT, FLANGEBOLT, FLANGE
-
995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1014B-22219-00-00 BRACKET, UPPERBRACKET, UPPER
-
1195602-16200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
