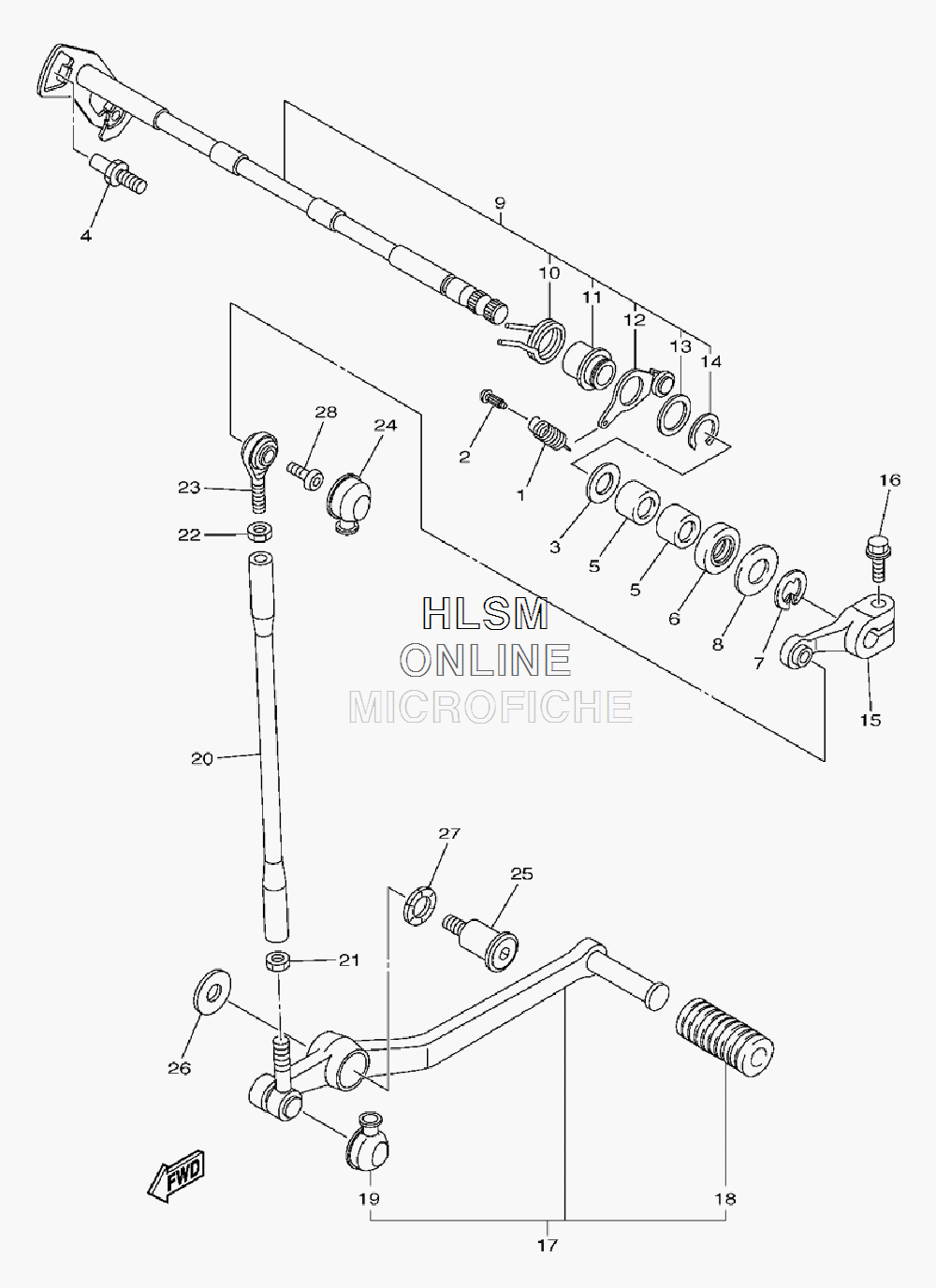

SHIFT SHAFT для Yamaha YZF-R1 - 2009 года выпуска`
-
№АртикулНазвание
-
190506-18021-00 SPRING, TENSIONSPRING, TENSION
-
2132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
390201-127E1-00 WASHER, PLATEWASHER, PLATE
-
41D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
593317-11295-00 BEARINGBEARING
-
693102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
799002-10600-00 CLIPCLIP
-
890201-12575-00 WASHER, PLATEWASHER, PLATE
-
914B-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
1090508-32020-00 SPRING, TORSIONSPRING, TORSION
-
112C0-18175-00-00 SPACERSPACER
-
1214B-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
1390201-177G4-00 WASHER, PLATEWASHER, PLATE
-
1499009-17400-00 CIRCLIPCIRCLIP
-
155JJ-18112-00-00 ARM, SHIFTARM, SHIFT
-
1695022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1714B-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
185EB-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
194XV-18154-00-00 COVER, DUSTCOVER, DUST
-
205LV-18115-00-00 ROD, SHIFTROD, SHIFT
-
2190170-06228-00 NUT(COUNTER CLOCKWISE)NUT(COUNTER CLOCKWISE)
-
2295304-06700-00 NUTNUT
-
235LV-18116-00-00 JOINT, ROD 1JOINT, ROD 1
-
244XV-18154-00-00 COVER, DUSTCOVER, DUST
-
254C8-27434-00-00 BOLTBOLT
-
2690201-08103-00 WASHER, PLATEWASHER, PLATE
-
2790206-14086-00 WASHER, WAVEWASHER, WAVE
-
2890111-06019-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
