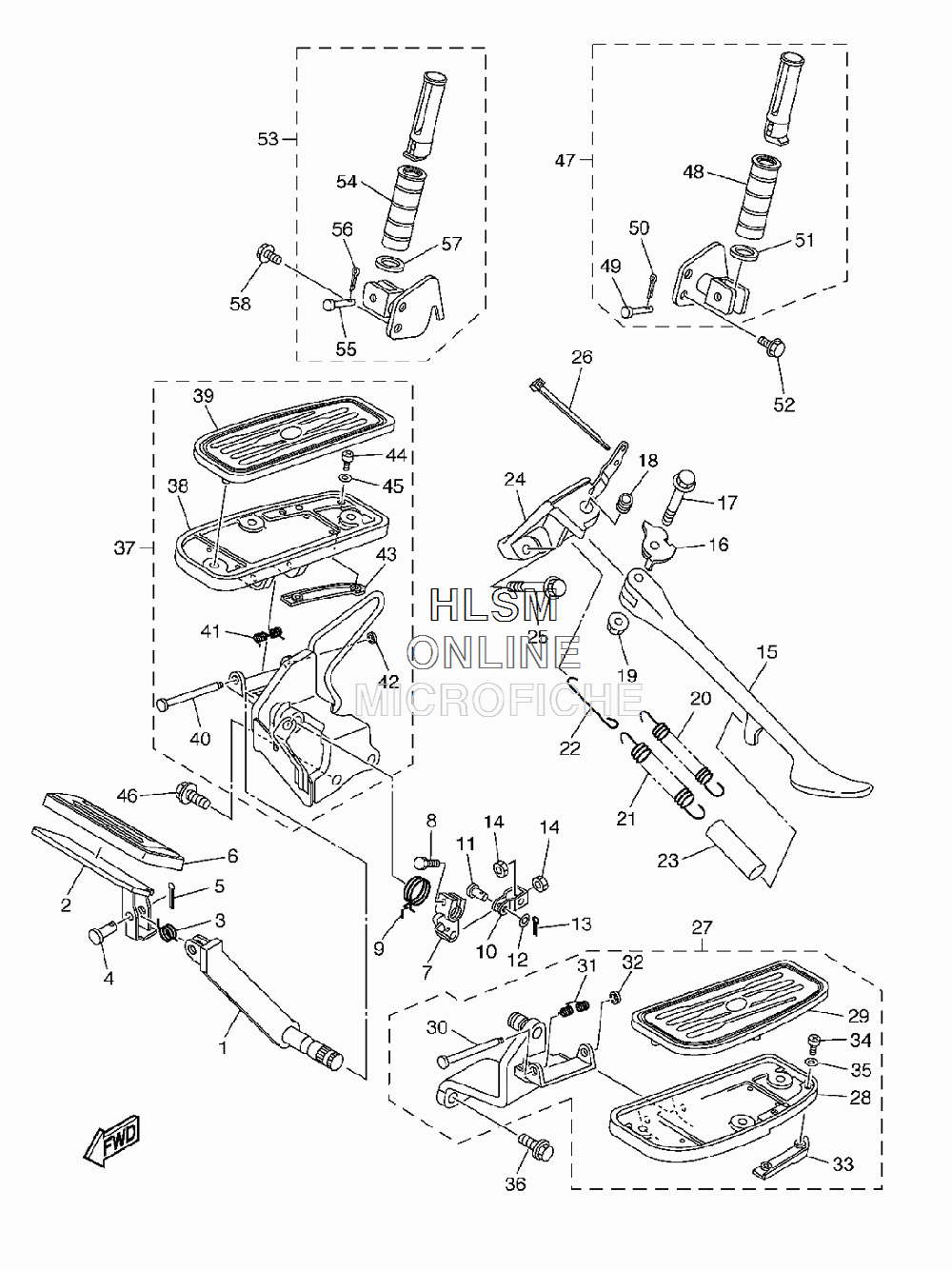

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha V STAR 1100 CLASSIC - 2009 года выпуска`
-
№АртикулНазвание
-
15KS-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24NK-27242-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
390508-18023-00 SPRING, TORSIONSPRING, TORSION
-
491702-06022-00 PIN, CLEVISPIN, CLEVIS
-
591402-20012-00 PIN, COTTERPIN, COTTER
-
64NK-27285-00-00 CAPCAP
-
75EL-27262-00-00 LEVERLEVER
-
897004-06020-00 BOLT (3DM)BOLT (3DM)
-
95EL-27216-00-00 SPRING, RETURNSPRING, RETURN
-
104BP-27222-02-00 JOINTJOINT
-
1190240-08124-00 PIN, CLEVISPIN, CLEVIS
-
1290201-08083-00 WASHER, PLATEWASHER, PLATE
-
1391401-20012-00 PIN, COTTERPIN, COTTER
-
1495307-08700-00 NUT,HEX SMALLNUT,HEX SMALL
-
154KU-27311-13-00 STAND, SIDESTAND, SIDE
-
165EL-27322-01-00 WASHERWASHER
-
1790105-10012-00 BOLT, FLANGEBOLT, FLANGE
-
1890387-1003G-00 COLLARCOLLAR
-
1995607-10200-00 NUT, U FLANGENUT, U FLANGE
-
2090506-23490-00 SPRING, TENSIONSPRING, TENSION
-
2190506-29507-00 SPRING, TENSIONSPRING, TENSION
-
225EL-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
2390445-16641-00 HOSE (L60)HOSE (L60)
-
245EL-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
2590105-10157-00 BOLT, FLANGEBOLT, FLANGE
-
261UA-82591-00-00 BANDBAND
-
275KS-27410-10-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
284NK-27451-10-00 FOOTRESTFOOTREST
-
294XY-27413-01-00 COVER, FOOTRESTCOVER, FOOTREST
-
303D8-27427-00-00 SHAFTSHAFT
-
314NK-27426-00-00 SPRING, RETURNSPRING, RETURN
-
3299001-06600-00 CIRCLIPCIRCLIP
-
334WM-27496-00-00 MOLE 1MOLE 1
-
3490157-05095-00 SCREW,PAN HEAD(3SX)SCREW,PAN HEAD(3SX)
-
3592907-05200-00 WASHERWASHER
-
3690105-102A3-00 BOLT, FLANGEBOLT, FLANGE
-
375KS-27420-10-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
384NK-27461-10-00 FOOTRESTFOOTREST
-
394XY-27423-01-00 COVER, FOOTRESTCOVER, FOOTREST
-
403D8-27427-00-00 SHAFTSHAFT
-
414NK-27426-00-00 SPRING, RETURNSPRING, RETURN
-
4299001-06600-00 CIRCLIPCIRCLIP
-
434WM-27497-00-00 MOLE 2MOLE 2
-
4490157-05095-00 SCREW,PAN HEAD(3SX)SCREW,PAN HEAD(3SX)
-
4592907-05200-00 WASHERWASHER
-
4690105-102A3-00 BOLT, FLANGEBOLT, FLANGE
-
475EL-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
484WM-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
4991701-06032-00 PINPIN
-
5091401-20012-00 PIN, COTTERPIN, COTTER
-
5190201-210U0-00 WASHER, PLATEWASHER, PLATE
-
5290105-082A5-00 BOLT, FLANGEBOLT, FLANGE
-
535EL-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
544WM-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
5591701-06032-00 PINPIN
-
5691401-20012-00 PIN, COTTERPIN, COTTER
-
5790201-210U0-00 WASHER, PLATEWASHER, PLATE
-
5890105-082A5-00 BOLT, FLANGEBOLT, FLANGE
