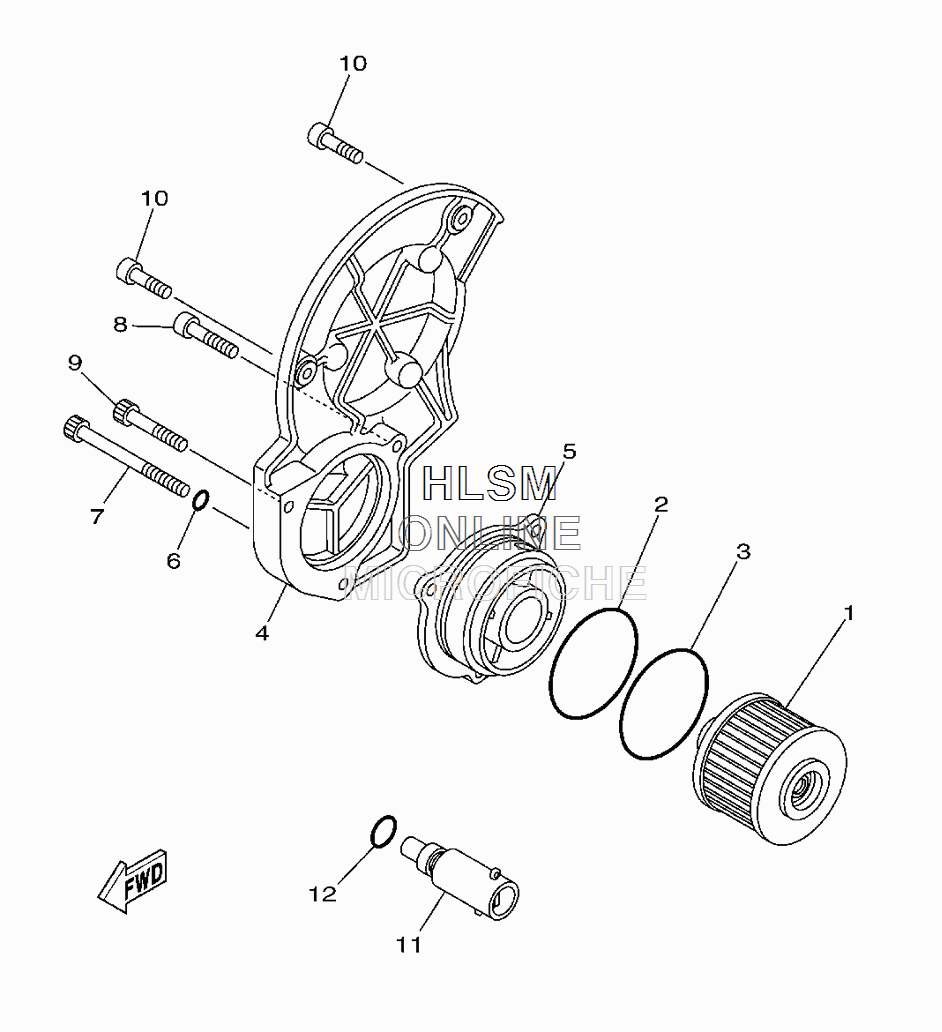

OIL CLEANER для Yamaha V STAR 1100 CLASSIC - 2009 года выпуска`
-
№АртикулНазвание
-
14X7-13440-01-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
293210-56459-00 O-RINGO-RING
-
393210-54452-00 O-RINGO-RING
-
45EL-13447-00-00 COVER, OIL ELEMENTCOVER, OIL ELEMENT
-
55EL-13448-00-00 CAPCAP
-
693210-07135-00 O-RINGO-RING
-
790109-06667-00 BOLTBOLT
-
891314-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
991314-06050-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1091314-06020-00 BOLTBOLT
-
114G0-13490-01-00 RELIEF VALVE ASSYRELIEF VALVE ASSY
-
1293210-10096-00 O-RINGO-RING
