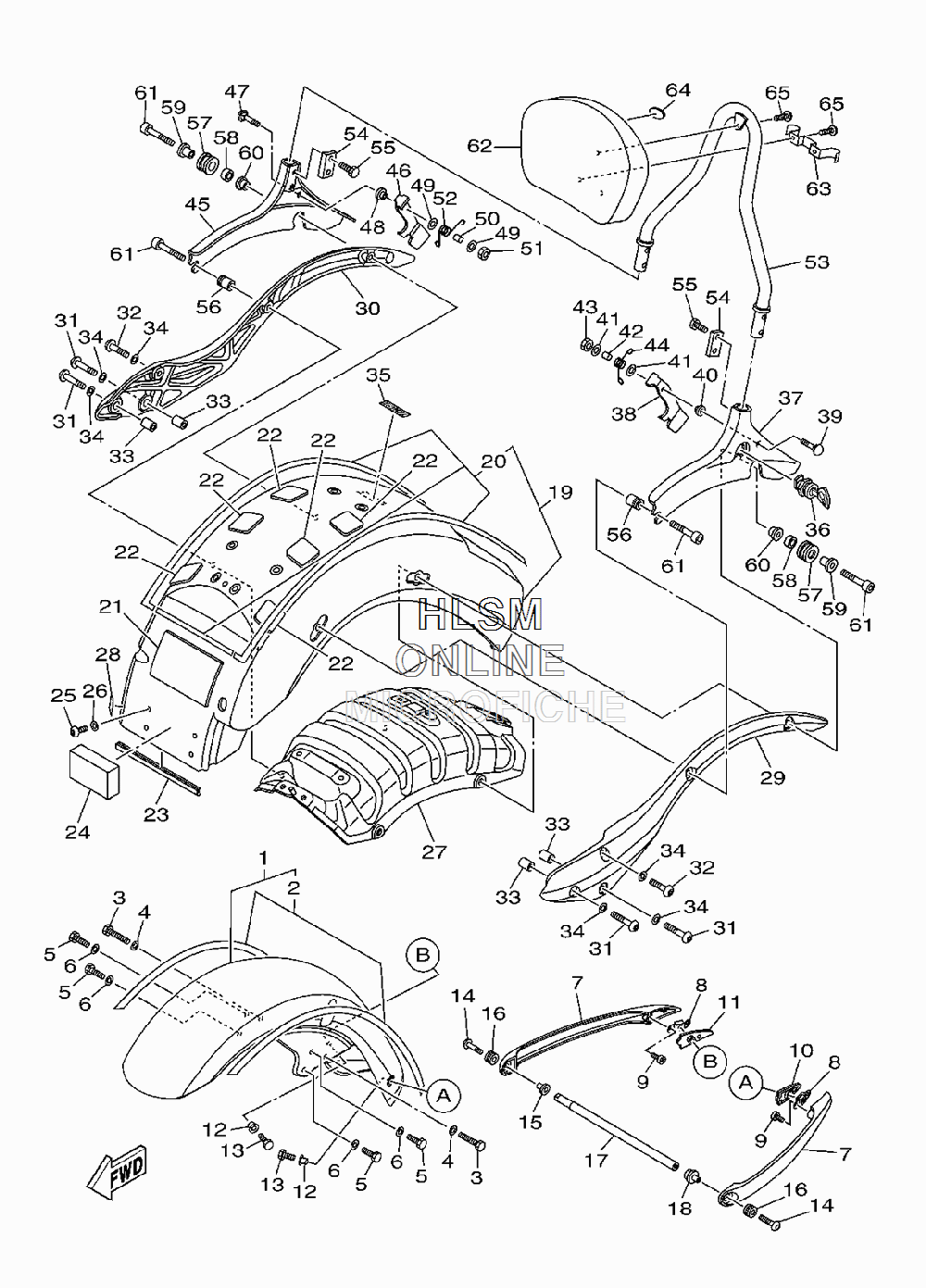

FENDER - FRONT / REAR для Yamaha STRATOLINER S - 2009 года выпуска
-
№АртикулНазвание
-
11D7-Y2151-F0-P0 FRONT FENDER ASSY (USE FOR COLOR VDRM2 / 0957)FRONT FENDER ASSY (USE FOR COLOR VDRM2 / 0957)
-
11D7-Y2151-G0-PA FRONT FENDER ASSY (USE FOR COLOR DPBML - 0865)FRONT FENDER ASSY (USE FOR COLOR DPBML - 0865)
-
24P0-21570-00-00 GRAPHIC SET, FRONT FENDER (USE FOR COLOR VDRM2 / 0957)GRAPHIC SET, FRONT FENDER (USE FOR COLOR VDRM2 / 0957)
-
24P0-21570-10-00 GRAPHIC SET, FRONT FENDER (USE FOR COLOR DPBML - 0865)GRAPHIC SET, FRONT FENDER (USE FOR COLOR DPBML - 0865)
-
397027-08030-00 BOLT, HEXAGONBOLT, HEXAGON
-
492907-08600-00 WASHER, PLATEWASHER, PLATE
-
597027-08016-00 BOLTBOLT
-
692907-08600-00 WASHER, PLATEWASHER, PLATE
-
71D7-21562-00-00 STAY, FENDER 3STAY, FENDER 3
-
81D7-21512-00-00 BRACKET, FENDERBRACKET, FENDER
-
997707-40610-00 SCREW, TAPPINGSCREW, TAPPING
-
101D7-21541-00-00 DAMPER 1DAMPER 1
-
111D7-21542-00-00 DAMPER 2DAMPER 2
-
1290387-087L0-00 COLLARCOLLAR
-
1397012-06014-00 BOLTBOLT
-
1490110-06202-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1590387-06125-00 COLLARCOLLAR
-
1690480-14323-00 GROMMETGROMMET
-
171D7-21544-00-00 COLLAR 1COLLAR 1
-
181D7-21545-00-00 PLATE 3PLATE 3
-
191D7-Y2161-H0-P0 REAR FENDER COMP. (USE FOR COLOR VDRM2 / 0957)REAR FENDER COMP. (USE FOR COLOR VDRM2 / 0957)
-
191D7-Y2161-J0-PA REAR FENDER COMP. (USE FOR COLOR DPBML - 0865)REAR FENDER COMP. (USE FOR COLOR DPBML - 0865)
-
204P0-2165A-00-00 GRAPHIC SET, REAR FENDER (USE FOR COLOR VDRM2 / 0957)GRAPHIC SET, REAR FENDER (USE FOR COLOR VDRM2 / 0957)
-
204P0-2165A-10-00 GRAPHIC SET, REAR FENDER (USE FOR COLOR DPBML - 0865)GRAPHIC SET, REAR FENDER (USE FOR COLOR DPBML - 0865)
-
215PX-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
225PX-21669-01-00 SEALSEAL
-
231D7-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
241D7-21639-00-00 DAMPER 2DAMPER 2
-
2590111-06065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2690201-06036-00 WASHER, PLATEWASHER, PLATE
-
271D7-21643-00-00 STAY, REARSTAY, REAR
-
283FY-21575-01-00 SEAL 1SEAL 1
-
291D7-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
301D7-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
3192014-10050-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3290111-10025-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3399530-14016-00 PIN, DOWELPIN, DOWEL
-
3490201-10M63-00 WASHER, PLATEWASHER, PLATE
-
351D6-2153E-00-00 EMBLEM, YAMAHA (FRS)EMBLEM, YAMAHA (FRS)
-
362C5-28409-01-00 LOCK ASSY 2LOCK ASSY 2
-
372C5-F846H-00-00 PLATE, 4PLATE, 4
-
382C5-F8488-00-00 HOOKHOOK
-
392C5-F844M-00-00 SHAFT 1SHAFT 1
-
402C5-F8467-00-00 SPACERSPACER
-
412C5-F8319-00-00 WASHERWASHER
-
422C5-F849T-00-00 PLATE, GUIDEPLATE, GUIDE
-
4395680-06100-00 NUT, UNUT, U
-
442C5-F8489-00-00 SPRINGSPRING
-
452C5-F847H-00-00 PLATE 5PLATE 5
-
462C5-F8498-00-00 HOOK 2HOOK 2
-
472C5-F844M-00-00 SHAFT 1SHAFT 1
-
482C5-F8467-00-00 SPACERSPACER
-
492C5-F8319-00-00 WASHERWASHER
-
502C5-F849T-00-00 PLATE, GUIDEPLATE, GUIDE
-
5195680-06100-00 NUT, UNUT, U
-
522C5-F848A-00-00 SPRING 2SPRING 2
-
532C5-F8426-00-00 BRACKET 1BRACKET 1
-
542C5-F8417-00-00 PLATEPLATE
-
5597014-08020-00 BOLT, HEXAGONBOLT, HEXAGON
-
562C5-F842L-00-00 PIN, STOPPERPIN, STOPPER
-
572C5-F845L-00-00 STOPPER, OPENSTOPPER, OPEN
-
582C5-F836T-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
592C5-F8329-00-00 SPACERSPACER
-
602C5-F8425-00-00 DAMPER 3DAMPER 3
-
6191314-08060-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
621D6-2840F-10-00 BACK REST ASSYBACK REST ASSY
-
635GA-2164G-00-00 STAY 2STAY 2
-
645GA-24786-01-00 EMBLEMEMBLEM
-
6592014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
