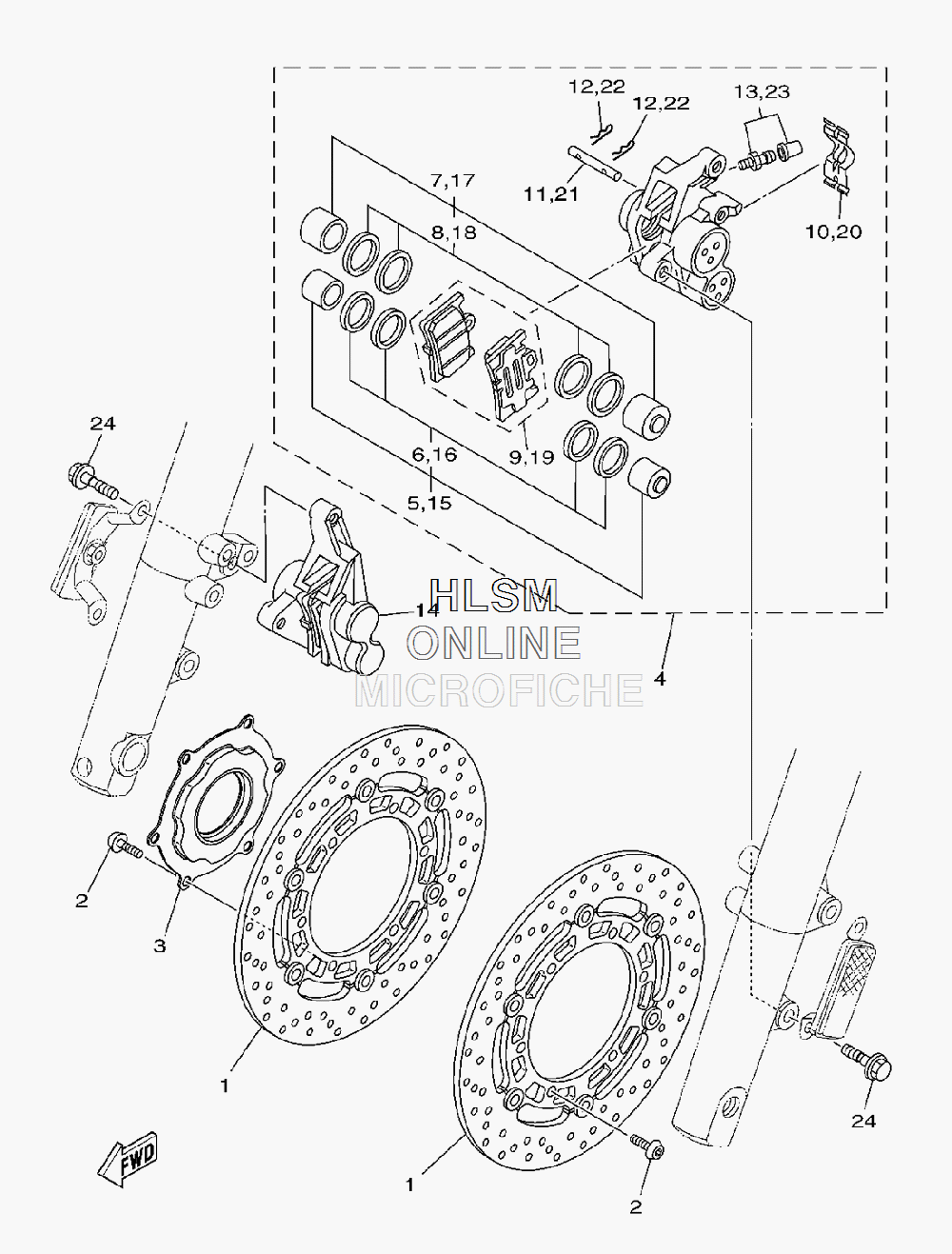

BRAKE - FRONT CALIPER для Yamaha STRATOLINER S - 2009 года выпуска`
-
№АртикулНазвание
-
11D7-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-08006-00 BOLTBOLT
-
31D7-2515A-00-00 RING, WHEEL 2RING, WHEEL 2
-
41D7-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
54SV-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
63MA-W0047-10-00 CALIPER SEAL KITCALIPER SEAL KIT
-
74SV-W0057-10-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
83GM-W0047-10-00 CALIPER SEAL KITCALIPER SEAL KIT
-
91D7-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
104SV-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
114SV-25924-00-00 PIN, PADPIN, PAD
-
123GM-25925-00-00 CLIPCLIP
-
1351H-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
141D7-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
154SV-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
163MA-W0047-10-00 CALIPER SEAL KITCALIPER SEAL KIT
-
174SV-W0057-10-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
183GM-W0047-10-00 CALIPER SEAL KITCALIPER SEAL KIT
-
191D7-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
204SV-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
214SV-25924-00-00 PIN, PADPIN, PAD
-
223GM-25925-00-00 CLIPCLIP
-
2351H-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
2490105-10638-00 BOLT, FLANGEBOLT, FLANGE
