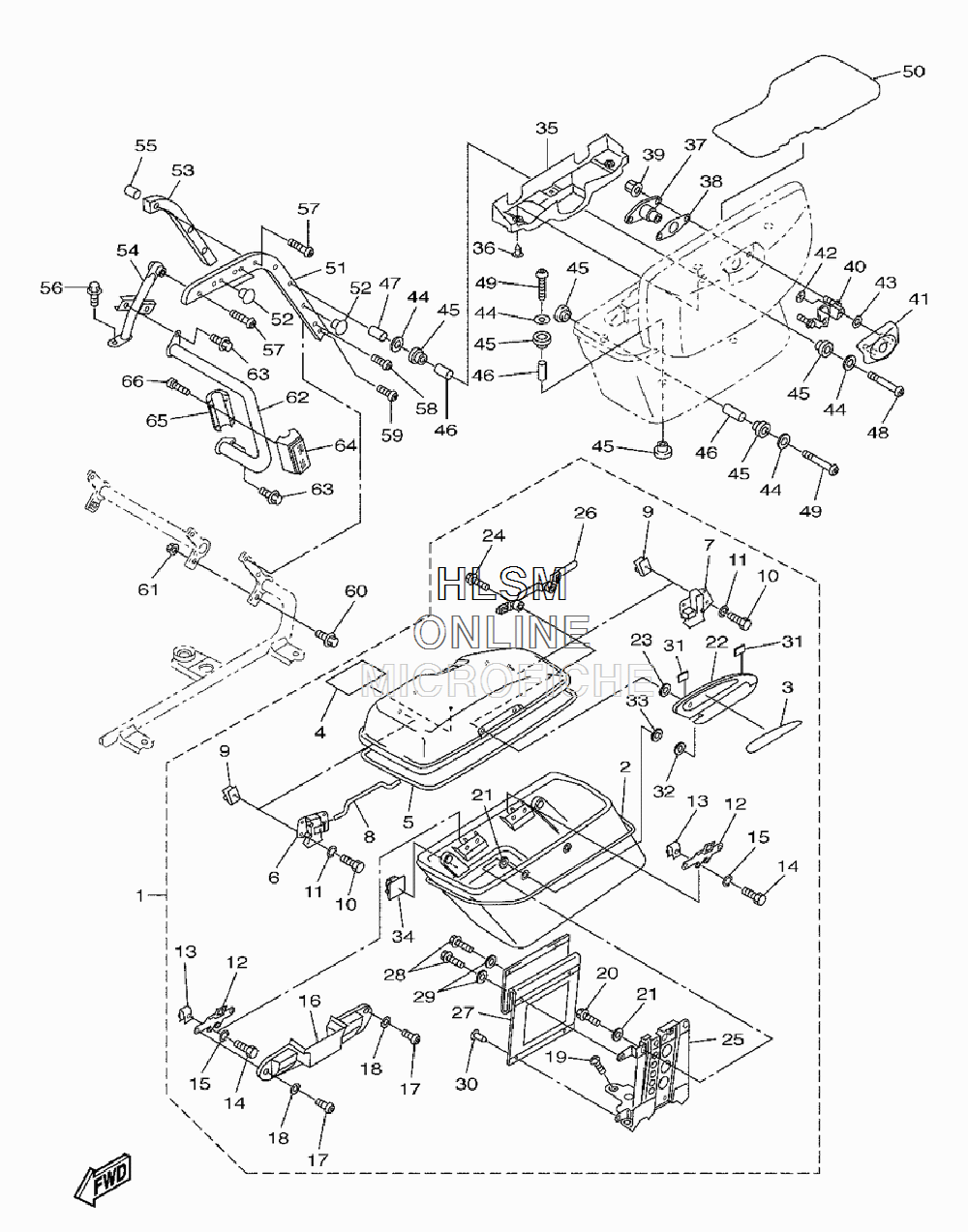

SADDLEBAG 1 для Yamaha ROYAL STAR VENTURE - 2009 года выпуска
-
№АртикулНазвание
-
14XY-Y2843-3L-0X SADDLEBAG COMP, 1 (DRMK/SMX)SADDLEBAG COMP, 1 (DRMK/SMX)
-
22C9-2840G-30-00 SADDLEBAG GRAPHIC SETSADDLEBAG GRAPHIC SET
-
34XY-2847A-50-00 ORNAMENT 1ORNAMENT 1
-
44XY-28446-02-00 LABEL, CAUTIONLABEL, CAUTION
-
54XY-28428-00-00 SEAL 1SEAL 1
-
64XY-28494-00-00 HOOK 3HOOK 3
-
74XY-28495-00-00 HOOK 4HOOK 4
-
84XY-2841A-00-00 LEVERLEVER
-
990183-05024-00 NUT, SPRINGNUT, SPRING
-
1097007-05012-00 BOLTBOLT
-
1192907-05600-00 WASHER, PLATEWASHER, PLATE
-
124XY-28498-00-00 HOOK 2HOOK 2
-
1390183-05024-00 NUT, SPRINGNUT, SPRING
-
1497007-05016-00 BOLTBOLT
-
1592907-05600-00 WASHER, PLATEWASHER, PLATE
-
164XY-2843J-00-00 COVER 3COVER 3
-
1792017-05008-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1892907-05600-00 WASHER, PLATEWASHER, PLATE
-
1997707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
2092017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2190201-054K4-00 WASHER, PLATEWASHER, PLATE
-
224XY-28444-10-00 HINGE 1HINGE 1
-
2390202-08125-00 WASHER, PLATEWASHER, PLATE
-
2492017-05020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
254XY-28427-00-00 REINFORCEMENT 1REINFORCEMENT 1
-
264XY-2847H-00-00 PLATE 5PLATE 5
-
274XY-2845B-00-00 STOPPER, OPENSTOPPER, OPEN
-
2892017-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2992907-05600-00 WASHER, PLATEWASHER, PLATE
-
3090269-05039-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
314XY-28499-00-00 PLATE, RUBBER 4PLATE, RUBBER 4
-
3290201-08326-00 WASHER, PLATEWASHER, PLATE
-
334XY-28429-00-00 SEAL 2SEAL 2
-
3490464-07002-00 CLAMPCLAMP
-
354XY-2849K-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
3690269-06081-00 RIVETRIVET
-
374XY-W2843-00-00 LOCK ASSY 3LOCK ASSY 3
-
384XY-2845J-00-00 PLATE, RUBBER 5PLATE, RUBBER 5
-
3995607-05200-00 NUT, U FLANGENUT, U FLANGE
-
404XY-2849H-00-00 PLATE 6PLATE 6
-
414XY-2842A-00-00 COVER 5COVER 5
-
4290183-04005-00 NUT, SPRINGNUT, SPRING
-
434KJ-28371-00-00 DAMPERDAMPER
-
4490201-065G8-00 WASHER, PLATEWASHER, PLATE
-
4590480-20447-00 GROMMETGROMMET
-
4690387-084R5-00 COLLARCOLLAR
-
4790387-0811N-00 COLLARCOLLAR
-
4892017-06055-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4992017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
504XY-2848K-01-00 SEAT 2SEAT 2
-
514XY-28473-00-00 FRAME, SADDLEBAG 1FRAME, SADDLEBAG 1
-
5290338-07259-00 PLUGPLUG
-
531D6-28415-00-00 DAMPER 1DAMPER 1
-
544YE-28413-02-00 STAY, FRONT GUARD 1STAY, FRONT GUARD 1
-
5590387-0811N-00 COLLARCOLLAR
-
5695807-08014-00 BOLT, FLANGEBOLT, FLANGE
-
5790111-08021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5892014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5992014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6095827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
6195307-08800-00 NUTNUT
-
624XY-2841K-00-00 GUARD, SADDLEBAG 1GUARD, SADDLEBAG 1
-
6395814-08016-00 BOLT, FLANGEBOLT, FLANGE
-
644YE-85131-00-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
654YE-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
6697707-30514-00 SCREW, TAPPINGSCREW, TAPPING
