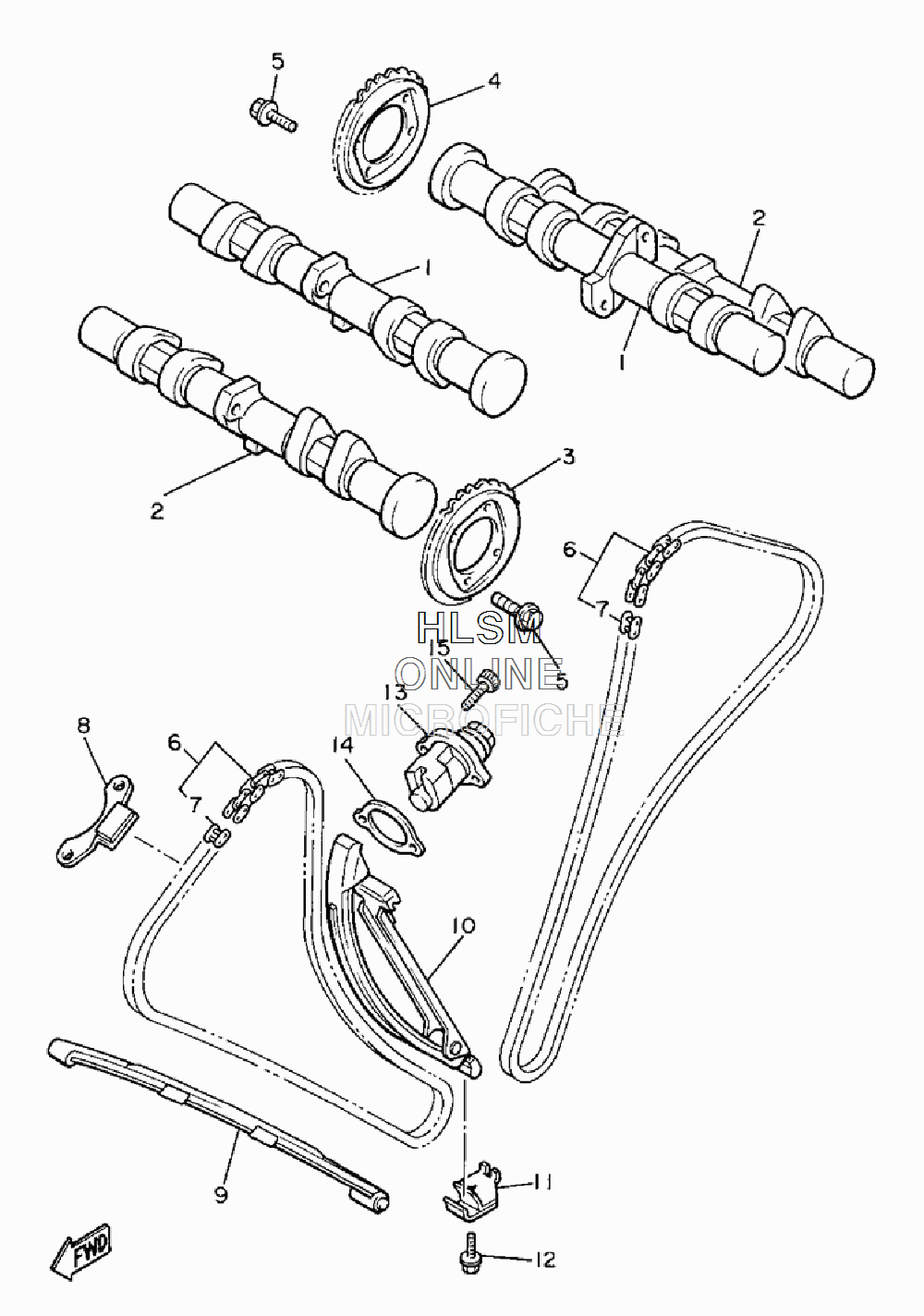

CAMSHAFT W/ CHAIN для Yamaha ROYAL STAR VENTURE - 2009 года выпуска`
-
№АртикулНазвание
-
14XY-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
24XY-12181-00-00 CAMSHAFT 2CAMSHAFT 2
-
34XY-12177-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
44XY-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
590105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
694590-44118-00 CHAIN (BF05M-118L)CHAIN (BF05M-118L)
-
794600-02001-00 JOINT, CHAIN (BF05M)JOINT, CHAIN (BF05M)
-
826H-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
926H-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
1026H-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1126H-12233-00-00 PLATE, GUIDE STOPPER 1PLATE, GUIDE STOPPER 1
-
1295817-08025-00 BOLT, FLANGEBOLT, FLANGE
-
1326H-12210-03-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
143JP-12213-01-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1591317-06020-00 BOLTBOLT
